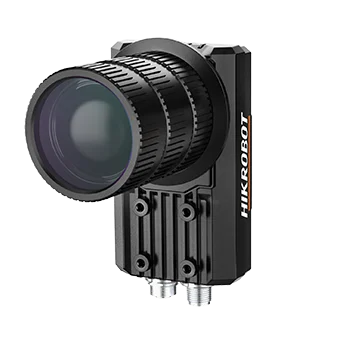

Hikrobot CY-C120M-CNN 12 MP smart code reader

Name: Hikrobot CY-C120M-CNN 12 MP smart code reader
Brand: Hikrobot
SKU: CY-C120M-CNN

Model CY-C120M-CNN

Hikrobot CY-C120M-CNN 12 MP smart code reader. High-performance 12 MP global-shutter sensor for fast image capture and excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions

Datasheet (PDF, Chinese) - CY-C120M-CNN

Features

High-performance 12 MP global-shutter sensor for fast image capture and excellent image quality
Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Print-quality grading to verify 2D code print quality
Supports TCP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other protocols
Integrated multi-zone controllable lighting module for versatile options
IP67 protection for harsh industrial environments

Specifications

Model	CY-C120M-CNN
Brand	Hikrobot
Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc.
Max. frame rate	28 fps
Max. reading speed	84 codes/sec
Sensor type	CMOS, global shutter
Pixel size	3.2 µm × 3.2 µm
Sensor size	1”
Resolution	4096 × 3072
Exposure time	60 μs ~ 1 sec
Gain	0 dB ~ 18 dB
Mono/color	Mono
Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP
Data interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	Mono
Power supply	12 VDC ~ 24 VDC
Max. power consumption	12 W@24 VDC
Lens mount	C-Mount
Light source	Not included
Lens cap	Transparent lens cap
Indicator	Power indicator PWR, Network indicator LNK/ACT, User indicator U1/U2
Dimension	109.5 mm × 64.4 mm × 109 mm
Weight	Approx. 470 g (1.0 lb.)
Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	IDMVS
Certification	CE, FCC, RoHS, KC
Shipping weight (estimated)	0.76 kg
