600 x 400 mm Edge-Lit Through-Hole LED Backlight
LS-BKL-1128
- Colour Red, Green, Blue, White
- Emitting area 600x400 mm
- Size 635x435x9.5 mm
$1,629.00
Ships in 2-3 weeks
Lights
White backlights
Backlights sit behind the part and give the camera a sharp, high-contrast silhouette - the standard choice for gauging, outline and hole inspection, and for spotting contamination in clear film. White light carries every colour at once: the choice for colour cameras and colour inspection.
All backlights · Red backlights · Blue backlights · Green backlights · Infrared backlights · UV backlights
Products
350 x 350 mm Edge-Lit Through-Hole LED Backlight
LS-BKL-1126
- Colour Red, Green, Blue, White
- Emitting area 350x350 mm
- Size 385x385x9.5 mm
$1,339.00
Ships in 2-3 weeks
400 x 300 mm Edge-Lit Through-Hole LED Backlight
LS-BKL-1127
- Colour Red, Green, Blue, White
- Emitting area 400x300 mm
- Size 435x335x9.5 mm
$1,319.00
Ships in 2-3 weeks
250 x 200 mm Edge-Lit Through-Hole LED Backlight
LS-BKL-1125
- Colour Red, Green, Blue, White
- Emitting area 250x200 mm
- Size 285x235x9.5 mm
$709.00
Ships in 2-3 weeks
200 x 200 mm Edge-Lit Through-Hole LED Backlight, 40x40 opening
LS-BKL-1124
- Colour Red, Green, Blue, White
- Emitting area 200x200 mm
- Size 235x235x9.5 mm
$609.00
Ships in 2-3 weeks
150 x 100 mm Edge-Lit Through-Hole LED Backlight
LS-BKL-1123
- Colour Red, Green, Blue, White
- Emitting area 150x100 mm
- Size 185x135x9.5 mm
$369.00
Ships in 2-3 weeks
600 x 400 mm Edge-Lit LED Backlight
LS-BKL-1122
- Colour Red, Green, Blue, White
- Emitting area 600x400 mm
- Size 635x435x9.5 mm
$1,439.00
Ships in 2-3 weeks
400 x 300 mm Edge-Lit LED Backlight
LS-BKL-1121
- Colour Red, Green, Blue, White
- Emitting area 400x300 mm
- Size 435x335x9.5 mm
$1,169.00
Ships in 2-3 weeks
300 x 300 mm Edge-Lit LED Backlight
LS-BKL-1120
- Colour Red, Green, Blue, White
- Emitting area 300x300 mm
- Size 335x335x9.5 mm
$939.00
Ships in 2-3 weeks
300 x 200 mm Edge-Lit LED Backlight
LS-BKL-1119
- Colour Red, Green, Blue, White
- Emitting area 300x200 mm
- Size 335x235x9.5 mm
$709.00
Ships in 2-3 weeks
250 x 200 mm Edge-Lit LED Backlight
LS-BKL-1118
- Colour Red, Green, Blue, White
- Emitting area 250x200 mm
- Size 285x235x9.5 mm
$629.00
Ships in 2-3 weeks
200 x 200 mm Edge-Lit LED Backlight
LS-BKL-1117
- Colour Red, Green, Blue, White
- Emitting area 200x200 mm
- Size 235x235x9.5 mm
$539.00
Ships in 2-3 weeks
200 x 160 mm Edge-Lit LED Backlight
LS-BKL-1116
- Colour Red, Green, Blue, White
- Emitting area 200x160 mm
- Size 235x195x9.5 mm
$469.00
Ships in 2-3 weeks
150 x 100 mm Edge-Lit LED Backlight
LS-BKL-1115
- Colour Red, Green, Blue, White
- Emitting area 150x100 mm
- Size 185x135x9.5 mm
$319.00
Ships in 2-3 weeks
110 x 110 mm Edge-Lit LED Backlight
LS-BKL-1114
- Colour Red, Green, Blue, White
- Emitting area 110x110 mm
- Size 145x145x9.5 mm
$299.00
Ships in 2-3 weeks
90 x 90 mm Edge-Lit LED Backlight
LS-BKL-1113
- Colour Red, Green, Blue, White
- Emitting area 90x90 mm
- Size 125x125x9.5 mm
$259.00
Ships in 2-3 weeks
80 x 80 mm Edge-Lit LED Backlight
LS-BKL-1112
- Colour Red, Green, Blue, White
- Emitting area 80x80 mm
- Size 115x115x9.5 mm
$249.00
Ships in 2-3 weeks
70 x 70 mm Edge-Lit LED Backlight
LS-BKL-1111
- Colour Red, Green, Blue, White
- Emitting area 70x70 mm
- Size 105x105x9.5 mm
$229.00
Ships in 2-3 weeks
50 x 50 mm Edge-Lit LED Backlight
LS-BKL-1110
- Colour Red, Green, Blue, White
- Emitting area 50x50 mm
- Size 85x85x9.5 mm
$209.00
Ships in 2-3 weeks
25 x 25 mm Edge-Lit LED Backlight
LS-BKL-1109
- Colour Red, Green, Blue, White
- Emitting area 25x25 mm
- Size 60x60x9.5 mm
$199.00
Ships in 2-3 weeks
211 x 200 mm Collimated LED Backlight
LS-BKL-1048
- Colour Red, Green, Blue, White
- Emitting area 211x200 mm
- Size 225x214x19 mm
$709.00
Ships in 2-3 weeks
224 x 170 mm Collimated LED Backlight
LS-BKL-1049
- Colour Red, Green, Blue, White
- Emitting area 224x170 mm
- Size 238x184x19 mm
$669.00
Ships in 2-3 weeks
200 x 150 mm Collimated LED Backlight
LS-BKL-1047
- Colour Red, Green, Blue, White
- Emitting area 200x150 mm
- Size 214x164x19 mm
$569.00
Ships in 2-3 weeks

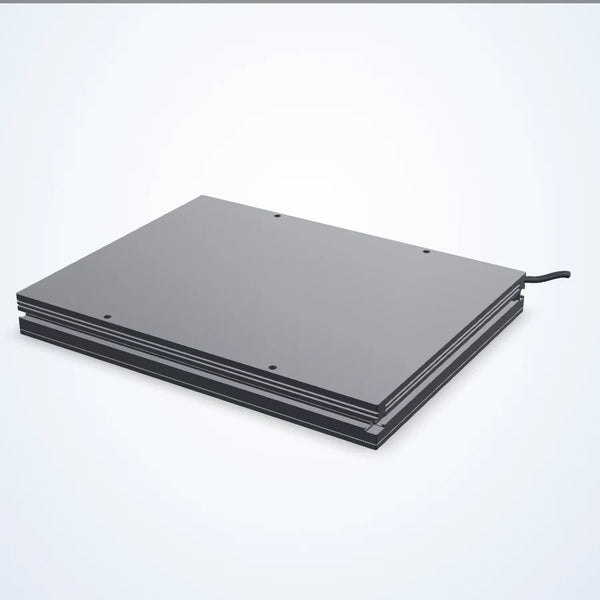

160 x 120 mm Collimated LED Backlight
LS-BKL-1045
- Colour Red, Green, Blue, White
- Emitting area 160x120 mm
- Size 174x134x19 mm
$439.00
Ships in 2-3 weeks
| Compare | ||||||||
|---|---|---|---|---|---|---|---|---|
 LS-BKL-1128600 x 400 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 600x400 mm | 635x435x9.5 mm | 24 V | 54 W | $1,629.00 | Ships in 2-3 weeks | |
 LS-BKL-1126350 x 350 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 350x350 mm | 385x385x9.5 mm | 24 V | 28 W | $1,339.00 | Ships in 2-3 weeks | |
 LS-BKL-1127400 x 300 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 400x300 mm | 435x335x9.5 mm | 24 V | 32 W | $1,319.00 | Ships in 2-3 weeks | |
 LS-BKL-1125250 x 200 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 250x200 mm | 285x235x9.5 mm | 24 V | 20 W | $709.00 | Ships in 2-3 weeks | |
 LS-BKL-1124200 x 200 mm Edge-Lit Through-Hole LED Backlight, 40x40 opening
| Red, Green, Blue, White | 200x200 mm | 235x235x9.5 mm | 24 V | 17.5 W | $609.00 | Ships in 2-3 weeks | |
 LS-BKL-1123150 x 100 mm Edge-Lit Through-Hole LED Backlight
| Red, Green, Blue, White | 150x100 mm | 185x135x9.5 mm | 24 V | 11 W | $369.00 | Ships in 2-3 weeks | |
 LS-BKL-1122600 x 400 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 600x400 mm | 635x435x9.5 mm | 24 V | 30 W | $1,439.00 | Ships in 2-3 weeks | |
 LS-BKL-1121400 x 300 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 400x300 mm | 435x335x9.5 mm | 24 V | 28 W | $1,169.00 | Ships in 2-3 weeks | |
 LS-BKL-1120300 x 300 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 300x300 mm | 335x335x9.5 mm | 24 V | 25 W | $939.00 | Ships in 2-3 weeks | |
 LS-BKL-1119300 x 200 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 300x200 mm | 335x235x9.5 mm | 24 V | 15 W | $709.00 | Ships in 2-3 weeks | |
 LS-BKL-1118250 x 200 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 250x200 mm | 285x235x9.5 mm | 24 V | 12 W | $629.00 | Ships in 2-3 weeks | |
 LS-BKL-1117200 x 200 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 200x200 mm | 235x235x9.5 mm | 24 V | 10 W | $539.00 | Ships in 2-3 weeks | |
 LS-BKL-1116200 x 160 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 200x160 mm | 235x195x9.5 mm | 24 V | 9 W | $469.00 | Ships in 2-3 weeks | |
 LS-BKL-1115150 x 100 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 150x100 mm | 185x135x9.5 mm | 24 V | 8.5 W | $319.00 | Ships in 2-3 weeks | |
 LS-BKL-1114110 x 110 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 110x110 mm | 145x145x9.5 mm | 24 V | 8.5 W | $299.00 | Ships in 2-3 weeks | |
 LS-BKL-111390 x 90 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 90x90 mm | 125x125x9.5 mm | 24 V | 7.5 W | $259.00 | Ships in 2-3 weeks | |
 LS-BKL-111280 x 80 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 80x80 mm | 115x115x9.5 mm | 24 V | 7 W | $249.00 | Ships in 2-3 weeks | |
 LS-BKL-111170 x 70 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 70x70 mm | 105x105x9.5 mm | 24 V | 7 W | $229.00 | Ships in 2-3 weeks | |
 LS-BKL-111050 x 50 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 50x50 mm | 85x85x9.5 mm | 24 V | 6 W | $209.00 | Ships in 2-3 weeks | |
 LS-BKL-110925 x 25 mm Edge-Lit LED Backlight
| Red, Green, Blue, White | 25x25 mm | 60x60x9.5 mm | 24 V | 2.3 W | $199.00 | Ships in 2-3 weeks | |
 LS-BKL-1048211 x 200 mm Collimated LED Backlight
| Red, Green, Blue, White | 211x200 mm | 225x214x19 mm | 24 V | 33 W | $709.00 | Ships in 2-3 weeks | |
 LS-BKL-1049224 x 170 mm Collimated LED Backlight
| Red, Green, Blue, White | 224x170 mm | 238x184x19 mm | 24 V | 25 W | $669.00 | Ships in 2-3 weeks | |
 LS-BKL-1047200 x 150 mm Collimated LED Backlight
| Red, Green, Blue, White | 200x150 mm | 214x164x19 mm | 24 V | 30 W | $569.00 | Ships in 2-3 weeks | |
 LS-BKL-1045160 x 120 mm Collimated LED Backlight
| Red, Green, Blue, White | 160x120 mm | 174x134x19 mm | 24 V | 20 W | $439.00 | Ships in 2-3 weeks |
