Lights

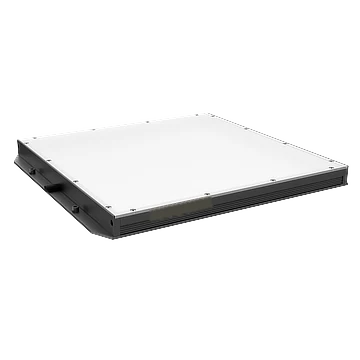

Blue backlights

Backlights sit behind the part and give the camera a sharp, high-contrast silhouette - the standard choice for gauging, outline and hole inspection, and for spotting contamination in clear film. Blue light has a short wavelength that brings out fine surface detail and scratches on shiny metal, and contrasts well against red, orange and yellow features.

All backlights · Red backlights · Green backlights · White backlights · Infrared backlights · UV backlights

1086 models Configure a system All lights

Products

								Compare
LS-BKL-1562187 x 107 mm square diffuse light	Red, Blue, White, Green, Infrared, UV	187 x 107 mm	200 × 120 × 30 mm	24 VDC	-	From $495.00	Ships in 3-4 weeks	Compare LS-BKL-1562
LS-BKL-155720 x 20 mm square diffuse light	Red, Blue, White, Green, Infrared, UV	20 x 20 mm	32 × 32 × 30 mm	24 VDC	-	From $200.00	Ships in 3-4 weeks	Compare LS-BKL-1557
LS-BKL-1561108 x 108 mm square diffuse light	Red, Blue, White, Green, Infrared, UV	108 x 108 mm	120 × 120 × 30 mm	24 VDC	-	From $375.00	Ships in 3-4 weeks	Compare LS-BKL-1561
LS-BKL-156084 x 84 mm square diffuse light	Red, Blue, White, Green, Infrared, UV	84 x 84 mm	96 × 96 × 30 mm	24 VDC	-	From $320.00	Ships in 3-4 weeks	Compare LS-BKL-1560
LS-BKL-155836 x 36 mm square diffuse light	Red, Blue, White, Green, Infrared, UV	36 x 36 mm	48 × 48 × 30 mm	24 VDC	-	From $250.00	Ships in 3-4 weeks	Compare LS-BKL-1558
LS-BKL-155963 x 63 mm square diffuse light	Red, Blue, White, Green, Infrared, UV	63 x 63 mm	75 × 75 × 30 mm	24 VDC	-	From $270.00	Ships in 3-4 weeks	Compare LS-BKL-1559
LS-BKL-155612 x 8 mm square diffuse light	Red, Blue, White, Green, Infrared, UV	12 x 8 mm	20 × 20 × 23 mm	24 VDC	-	From $190.00	Ships in 3-4 weeks	Compare LS-BKL-1556
LS-BKL-1106100 x 100 mm parallel flat backlight	Red, Blue, White, Green, Infrared, UV	100 x 100 mm	-	24 VDC	Collimated	From $320.00	Ships in 3-4 weeks	Compare LS-BKL-1106
LS-BKL-1107140 x 105 mm parallel flat backlight	Red, Blue, White, Green, Infrared, UV	140 x 105 mm	-	24 VDC	Collimated	From $380.00	Ships in 3-4 weeks	Compare LS-BKL-1107
LS-BKL-110243 x 35 mm parallel flat backlight	Red, Blue, White, Green, Infrared, UV	43 x 35 mm	-	24 VDC	Collimated	From $160.00	Ships in 3-4 weeks	Compare LS-BKL-1102
LS-BKL-1099250 x 200 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	250 x 200 mm	285 × 235 × 11.5 mm	24 VDC	-	From $430.00	Ships in 3-4 weeks	Compare LS-BKL-1099
LS-BKL-110350 x 50 mm parallel flat backlight	Red, Blue, White, Green, Infrared, UV	50 x 50 mm	-	24 VDC	Collimated	From $160.00	Ships in 3-4 weeks	Compare LS-BKL-1103
LS-BKL-109490 x 90 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	90 x 90 mm	125 × 125 × 11.5 mm	24 VDC	-	From $220.00	Ships in 3-4 weeks	Compare LS-BKL-1094
LS-BKL-1098200 x 200 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	200 x 200 mm	235 × 235 × 11.5 mm	24 VDC	-	From $410.00	Ships in 3-4 weeks	Compare LS-BKL-1098
LS-BKL-1097200 x 160 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	200 x 160 mm	235 × 195 × 11.5 mm	24 VDC	-	From $370.00	Ships in 3-4 weeks	Compare LS-BKL-1097
LS-BKL-110583 x 75 mm parallel flat backlight	Red, Blue, White, Green, Infrared, UV	83 x 75 mm	-	24 VDC	Collimated	From $220.00	Ships in 3-4 weeks	Compare LS-BKL-1105
LS-BKL-109270 x 70 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	70 x 70 mm	105 × 105 × 11.5 mm	24 VDC	-	From $180.00	Ships in 3-4 weeks	Compare LS-BKL-1092
LS-BKL-110127 x 27 mm parallel flat backlight	Red, Blue, White, Green, Infrared, UV	27 x 27 mm	-	24 VDC	Collimated	From $130.00	Ships in 3-4 weeks	Compare LS-BKL-1101
LS-BKL-1100300 x 300 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	300 x 300 mm	335 × 235 × 11.5 mm	24 VDC	-	From $540.00	Ships in 3-4 weeks	Compare LS-BKL-1100
LS-BKL-110463 x 60 mm parallel flat backlight	Red, Blue, White, Green, Infrared, UV	63 x 60 mm	-	24 VDC	Collimated	From $100.00	Ships in 3-4 weeks	Compare LS-BKL-1104
LS-BKL-1095110 x 110 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	110 x 110 mm	145 × 145 × 11.5 mm	24 VDC	-	From $270.00	Ships in 3-4 weeks	Compare LS-BKL-1095
LS-BKL-1096150 x 100 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	150 x 100 mm	185 × 135 × 11.5 mm	24 VDC	-	From $280.00	Ships in 3-4 weeks	Compare LS-BKL-1096
LS-BKL-1090500 x 400 mm edge-lit flat light with centre opening	Red, Blue, White, Green, Infrared, UV	500 x 400 mm	534 × 434 × 10.5 mm	24 VDC	-	From $700.00	Ships in 3-4 weeks	Compare LS-BKL-1090
LS-BKL-109150 x 50 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	50 x 50 mm	85 × 85 × 11.5 mm	24 VDC	-	From $150.00	Ships in 3-4 weeks	Compare LS-BKL-1091

Blue backlights

Products

187 x 107 mm square diffuse light

20 x 20 mm square diffuse light

108 x 108 mm square diffuse light

84 x 84 mm square diffuse light

36 x 36 mm square diffuse light

63 x 63 mm square diffuse light

12 x 8 mm square diffuse light

100 x 100 mm parallel flat backlight

140 x 105 mm parallel flat backlight

43 x 35 mm parallel flat backlight

250 x 200 mm edge-lit parallel backlight

50 x 50 mm parallel flat backlight

90 x 90 mm edge-lit parallel backlight

200 x 200 mm edge-lit parallel backlight

200 x 160 mm edge-lit parallel backlight

83 x 75 mm parallel flat backlight

70 x 70 mm edge-lit parallel backlight

27 x 27 mm parallel flat backlight

300 x 300 mm edge-lit parallel backlight

63 x 60 mm parallel flat backlight

110 x 110 mm edge-lit parallel backlight

150 x 100 mm edge-lit parallel backlight

500 x 400 mm edge-lit flat light with centre opening

50 x 50 mm edge-lit parallel backlight
