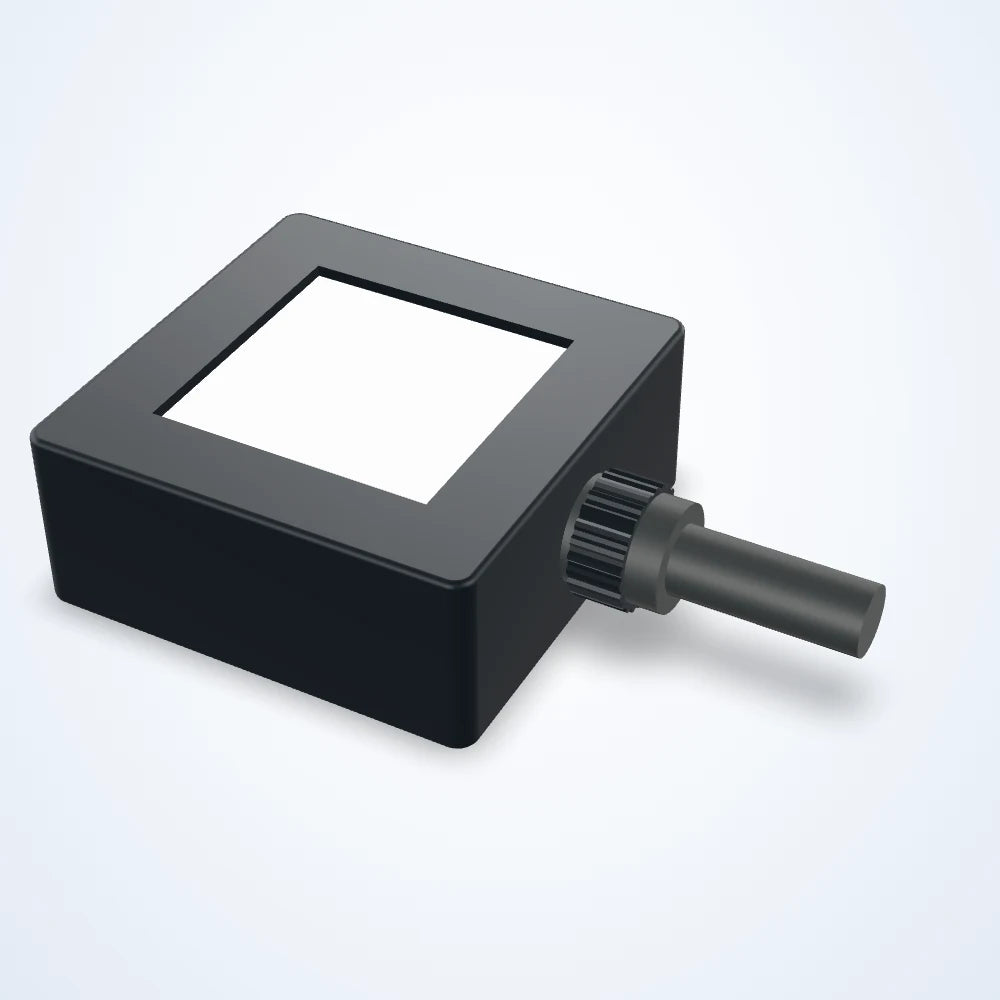

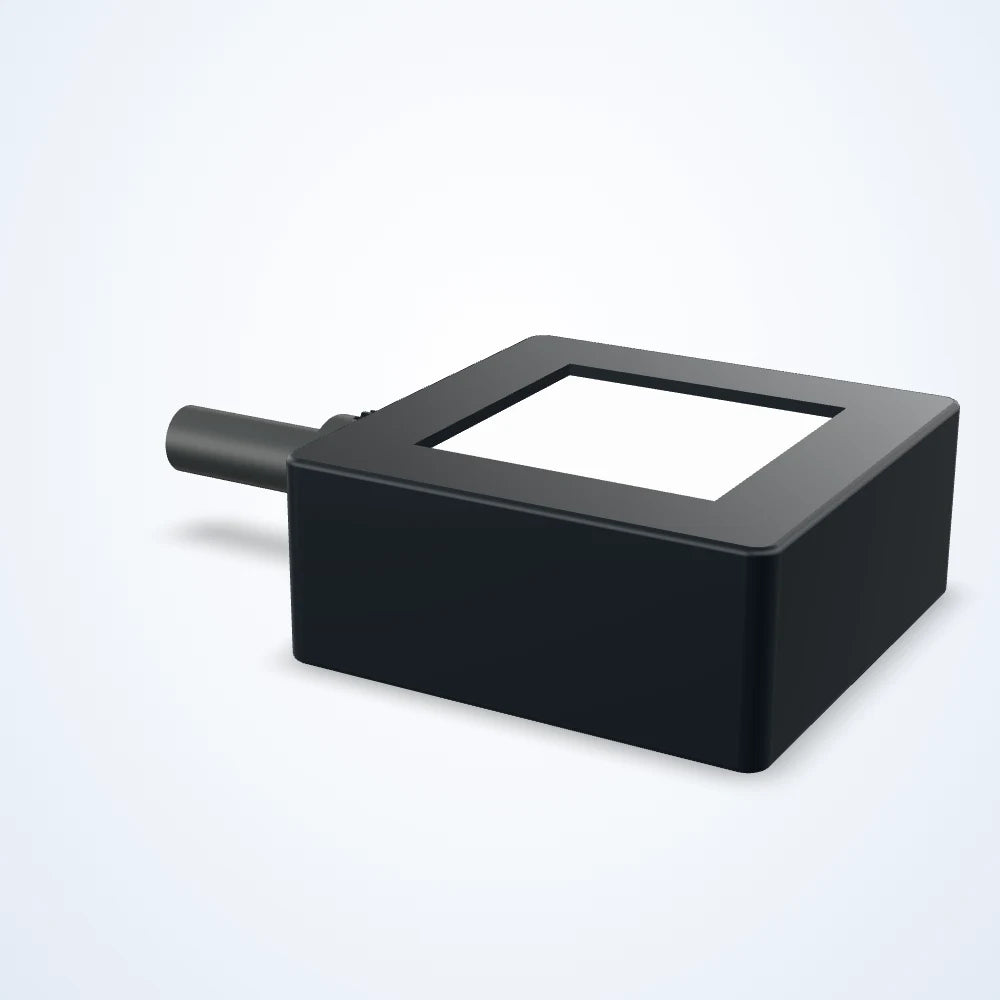

Rendered illustration: the actual product may differ in appearance.

Backlights

63 x 60 mm parallel flat backlight (LS-BKL-1104)

Model LS-BKL-1104

ColourRed, Blue, White, Green, Infrared, UV
Emitting area63 x 60 mm
Voltage24 VDC
TypeCollimated

$100.00

In stock - ships the same business day (4 available, order by 2 PM ET)

2.0 kg shipping weight

Color Red Blue White Green Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Parallel flat backlight for silhouettes, edges and gauging. Emitting area 63 x 60 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1104
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Light

Emitting area (mm)	63 x 60
Wavelength	Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm
Colour temperature (white)	5800-7500K

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage	24 VDC

Mechanical

Housing material	Aluminum alloy, Resin
Shipping weight	2.00 kg

Other models in the Parallel flat backlights (LS-BKL-S107) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-BKL-1101	27 x 27 mm	from $130.00	24 in stock	View
LS-BKL-1102	43 x 35 mm	from $160.00	18 in stock	View
LS-BKL-1103	50 x 50 mm	from $160.00	25 in stock	View
LS-BKL-1105	83 x 75 mm	from $220.00	20 in stock	View
LS-BKL-1106	100 x 100 mm	from $320.00	18 in stock	View
LS-BKL-1107	140 x 105 mm	from $380.00	23 in stock	View
