Backlights

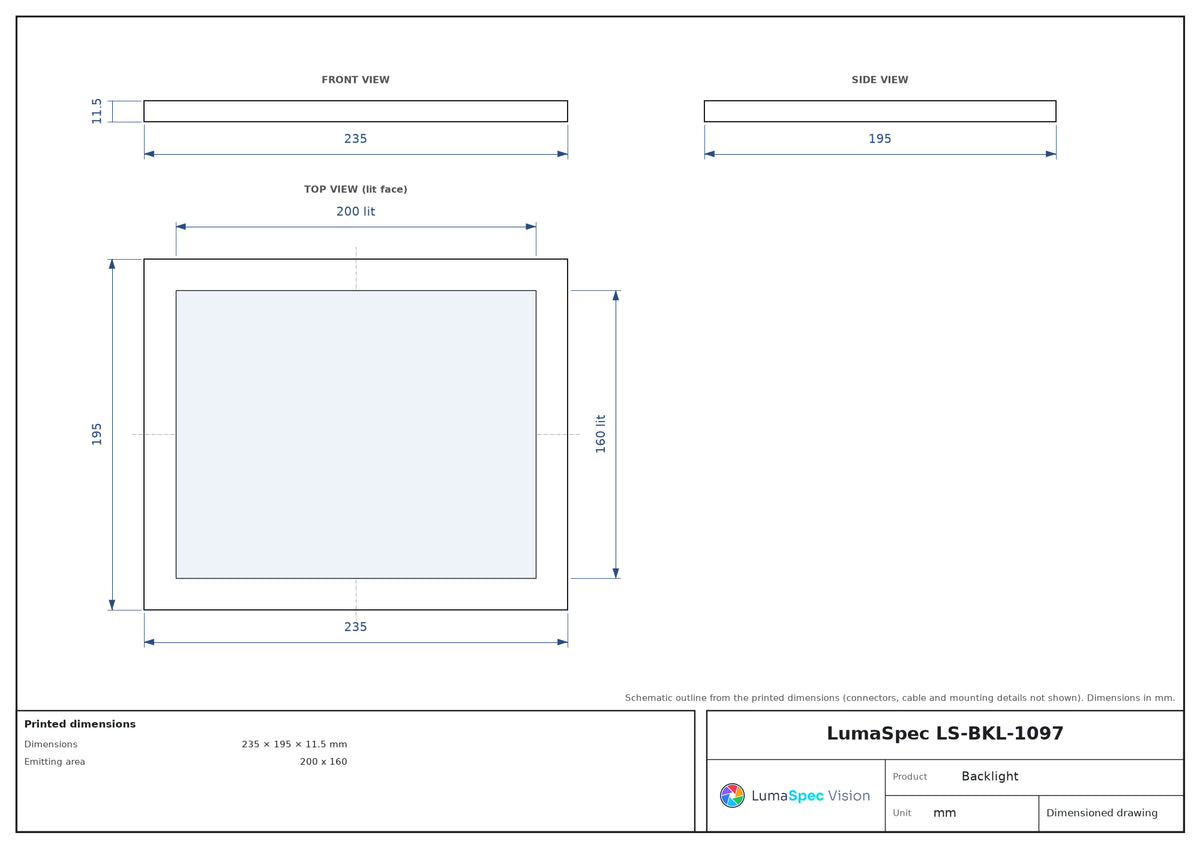

200 x 160 mm edge-lit parallel backlight (LS-BKL-1097)
Model LS-BKL-1097
- ColourRed, Blue, White, Green, Infrared, UV
- Emitting area200 x 160 mm
- Voltage24 VDC
- TypeCollimated
$370.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Edge-lit parallel backlight for silhouettes, edges and gauging. Emitting area 200 x 160 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1097 |
|---|---|
| Service life | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
Light
| Emitting area (mm) | 200 x 160 |
|---|---|
| Wavelength | Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm |
| Colour temperature (white) | 5800-7500K |
Environment and compliance
| Operating environment | Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation) |
|---|
Electrical
| Supply voltage | 24 VDC |
|---|
Mechanical
| Housing material | Aluminum alloy, Resin |
|---|---|
| Shipping weight | 2.00 kg |
Other models in the Edge-lit parallel backlights (LS-BKL-S106) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1091 | 50 x 50 mm | from $150.00 | Ships in 3-4 weeks | View |
| LS-BKL-1092 | 70 x 70 mm | from $180.00 | Ships in 3-4 weeks | View |
| LS-BKL-1093 | 80 x 80 mm | from $190.00 | Ships in 3-4 weeks | View |
| LS-BKL-1094 | 90 x 90 mm | from $220.00 | Ships in 3-4 weeks | View |
| LS-BKL-1095 | 110 x 110 mm | from $270.00 | Ships in 3-4 weeks | View |
| LS-BKL-1096 | 150 x 100 mm | from $280.00 | Ships in 3-4 weeks | View |
| LS-BKL-1098 | 200 x 200 mm | from $410.00 | Ships in 3-4 weeks | View |
| LS-BKL-1099 | 250 x 200 mm | from $430.00 | Ships in 3-4 weeks | View |
| LS-BKL-1100 | 300 x 300 mm | from $540.00 | Ships in 3-4 weeks | View |
