Lights

Blue backlights

Backlights sit behind the part and give the camera a sharp, high-contrast silhouette - the standard choice for gauging, outline and hole inspection, and for spotting contamination in clear film. Blue light has a short wavelength that brings out fine surface detail and scratches on shiny metal, and contrasts well against red, orange and yellow features.

All backlights · Red backlights · Green backlights · White backlights · Infrared backlights · UV backlights

1086 models Configure a system All lights

Products

								Compare

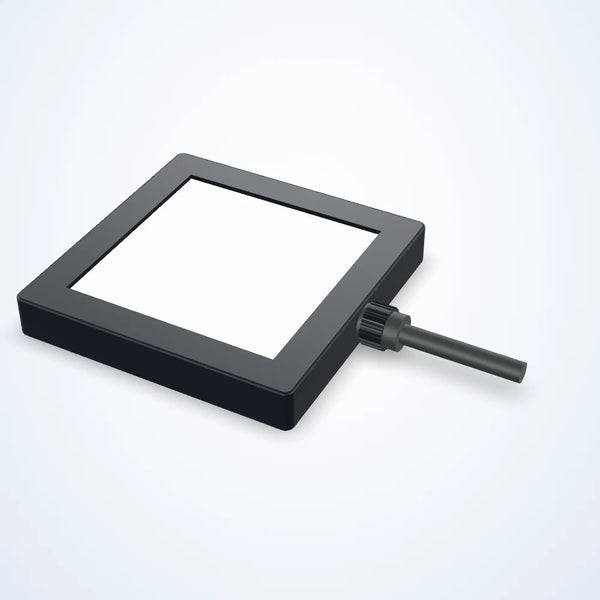

LS-BKL-1081350 x 350 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	350 x 350 mm	24 VDC	Edge-lit / ultra-thin	-	From $517.00	Ships in 3-4 weeks	Compare LS-BKL-1081
LS-BKL-109380 x 80 mm edge-lit parallel backlight	Red, Blue, White, Green, Infrared, UV	80 x 80 mm	24 VDC	-	115 × 115 × 11.5 mm	From $190.00	Ships in 3-4 weeks	Compare LS-BKL-1093
LS-BKL-1084600 x 400 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	600 x 400 mm	24 VDC	Edge-lit / ultra-thin	-	From $627.00	Ships in 3-4 weeks	Compare LS-BKL-1084
LS-BKL-1082400 x 300 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	400 x 300 mm	24 VDC	Edge-lit / ultra-thin	-	From $528.00	Ships in 3-4 weeks	Compare LS-BKL-1082
LS-BKL-1088350 x 350 mm edge-lit flat light with centre opening	Red, Blue, White, Green, Infrared, UV	350 x 350 mm	24 VDC	-	384 × 384 × 10.5 mm	From $520.00	Ships in 3-4 weeks	Compare LS-BKL-1088
LS-BKL-1086200 x 200 mm edge-lit flat light with centre opening	Red, Blue, White, Green, Infrared, UV	200 x 200 mm	24 VDC	-	235 × 235 × 9.5 mm	From $460.00	Ships in 3-4 weeks	Compare LS-BKL-1086
LS-BKL-1089400 x 300 mm edge-lit flat light with centre opening	Red, Blue, White, Green, Infrared, UV	400 x 300 mm	24 VDC	-	435 × 335 × 9.5 mm	From $640.00	Ships in 3-4 weeks	Compare LS-BKL-1089
LS-BKL-1074110 x 110 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	110 x 110 mm	24 VDC	-	145 × 145 × 9.5 mm	From $230.00	Ships in 3-4 weeks	Compare LS-BKL-1074
LS-BKL-1079300 x 200 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	300 x 200 mm	24 VDC	Edge-lit / ultra-thin	-	From $418.00	Ships in 3-4 weeks	Compare LS-BKL-1079
LS-BKL-1087250 x 200 mm edge-lit flat light with centre opening	Red, Blue, White, Green, Infrared, UV	250 x 200 mm	24 VDC	-	285 × 235 × 9.5 mm	From $460.00	Ships in 3-4 weeks	Compare LS-BKL-1087
LS-BKL-1083500 x 400 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	500 x 400 mm	24 VDC	Edge-lit / ultra-thin	-	From $570.00	Ships in 3-4 weeks	Compare LS-BKL-1083
LS-BKL-1085150 x 100 mm edge-lit flat light with centre opening	Red, Blue, White, Green, Infrared, UV	150 x 100 mm	24 VDC	-	185 × 135 × 9.5 mm	From $320.00	Ships in 3-4 weeks	Compare LS-BKL-1085
LS-BKL-1080300 x 300 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	300 x 300 mm	24 VDC	Edge-lit / ultra-thin	-	From $495.00	Ships in 3-4 weeks	Compare LS-BKL-1080
LS-BKL-1069600 x 400 mm bottom-lit flat backlight	Red, Blue, White, Green, Infrared, UV	600 x 400 mm	24 VDC	Standard	-	From $1,180.00	Ships in 3-4 weeks	Compare LS-BKL-1069
LS-BKL-107050 x 50 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	50 x 50 mm	24 VDC	-	85 × 85 × 9.5 mm	From $125.00	Ships in 3-4 weeks	Compare LS-BKL-1070
LS-BKL-1066400 x 350 mm bottom-lit flat backlight	Red, Blue, White, Green, Infrared, UV	400 x 350 mm	24 VDC	Standard	-	From $855.00	Ships in 3-4 weeks	Compare LS-BKL-1066
LS-BKL-1078250 x 200 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	250 x 200 mm	24 VDC	Edge-lit / ultra-thin	-	From $370.00	Ships in 3-4 weeks	Compare LS-BKL-1078
LS-BKL-107280 x 80 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	80 x 80 mm	24 VDC	-	115 × 115 × 9.5 mm	From $123.00	Ships in 3-4 weeks	Compare LS-BKL-1072
LS-BKL-1077200 x 200 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	200 x 200 mm	24 VDC	Edge-lit / ultra-thin	-	From $340.00	Ships in 3-4 weeks	Compare LS-BKL-1077
LS-BKL-107170 x 70 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	70 x 70 mm	24 VDC	-	105 × 105 × 9.5 mm	From $150.00	Ships in 3-4 weeks	Compare LS-BKL-1071
LS-BKL-1076200 x 160 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	200 x 160 mm	24 VDC	-	235 × 195 × 9.5 mm	From $320.00	Ships in 3-4 weeks	Compare LS-BKL-1076
LS-BKL-1075150 x 100 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	150 x 100 mm	24 VDC	-	185 × 135 × 9.5 mm	From $260.00	Ships in 3-4 weeks	Compare LS-BKL-1075
LS-BKL-107390 x 90 mm edge-lit flat backlight	Red, Blue, White, Green, Infrared, UV	90 x 90 mm	24 VDC	-	125 × 125 × 9.5 mm	From $195.00	Ships in 3-4 weeks	Compare LS-BKL-1073
LS-BKL-1058160 x 120 mm bottom-lit flat backlight	Red, Blue, White, Green, Infrared, UV	160 x 120 mm	24 VDC	Standard	-	From $325.00	Ships in 3-4 weeks	Compare LS-BKL-1058
