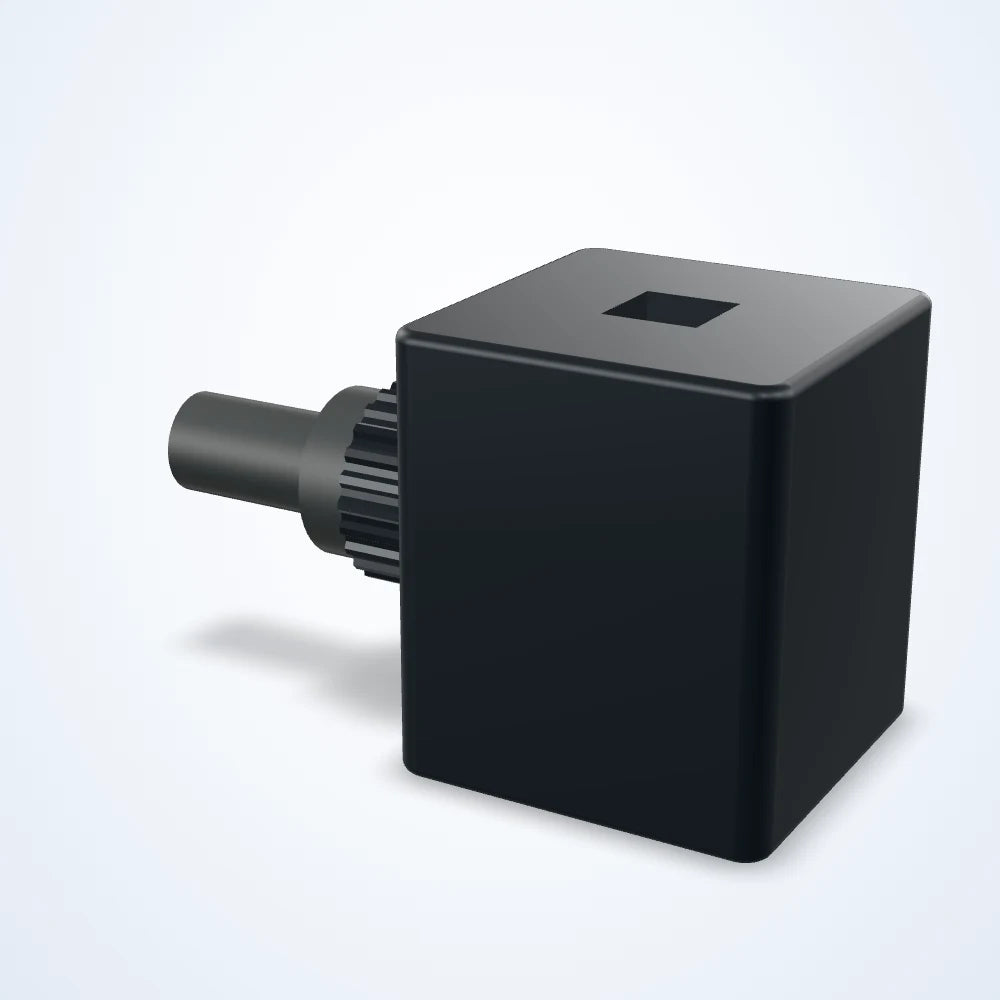

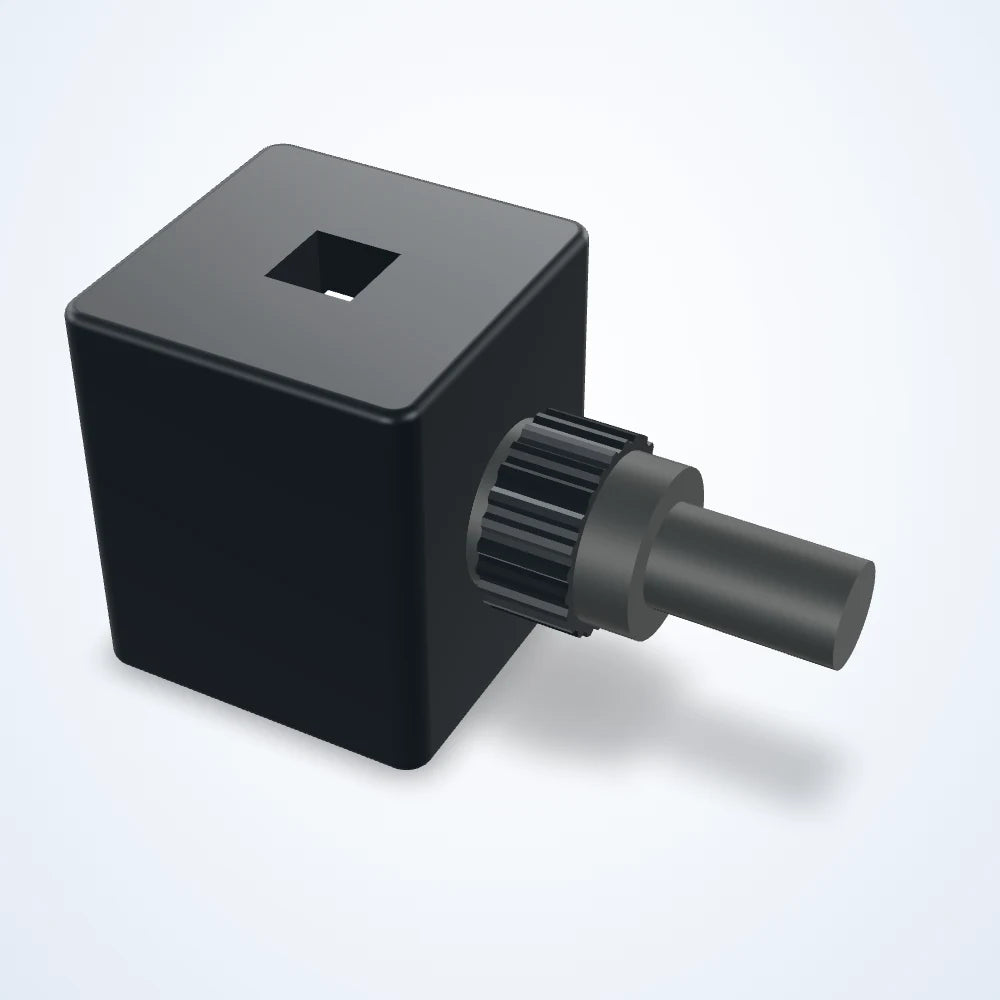

Rendered illustration: the actual product may differ in appearance.
Backlights
12 x 8 mm square diffuse light (LS-BKL-1556)
Model LS-BKL-1556-R
- ColourRed, Blue, White, Green, Infrared, UV
- Emitting area12 x 8 mm
- Size20 × 20 × 23 mm
- Voltage24 VDC
$190.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-bkl-1556
The smallest of the 7 sizes in this backlight series, LS-BKL-1556 has a 12 x 8 mm emitting area, for small parts and tight spaces (for fields of view up to about 12 x 8 mm).

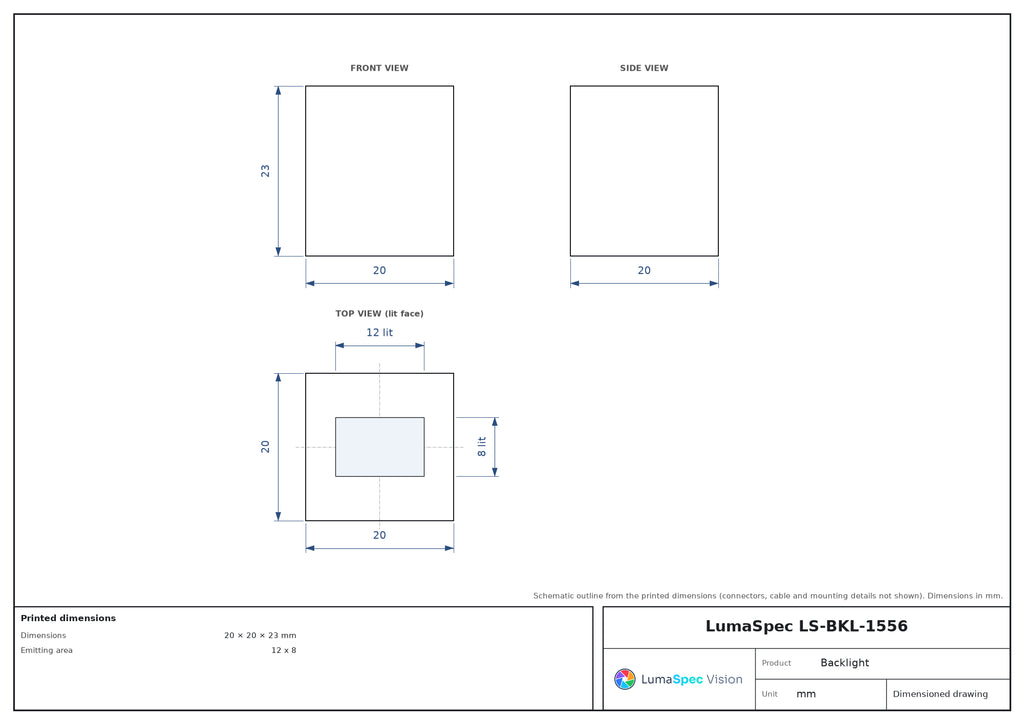

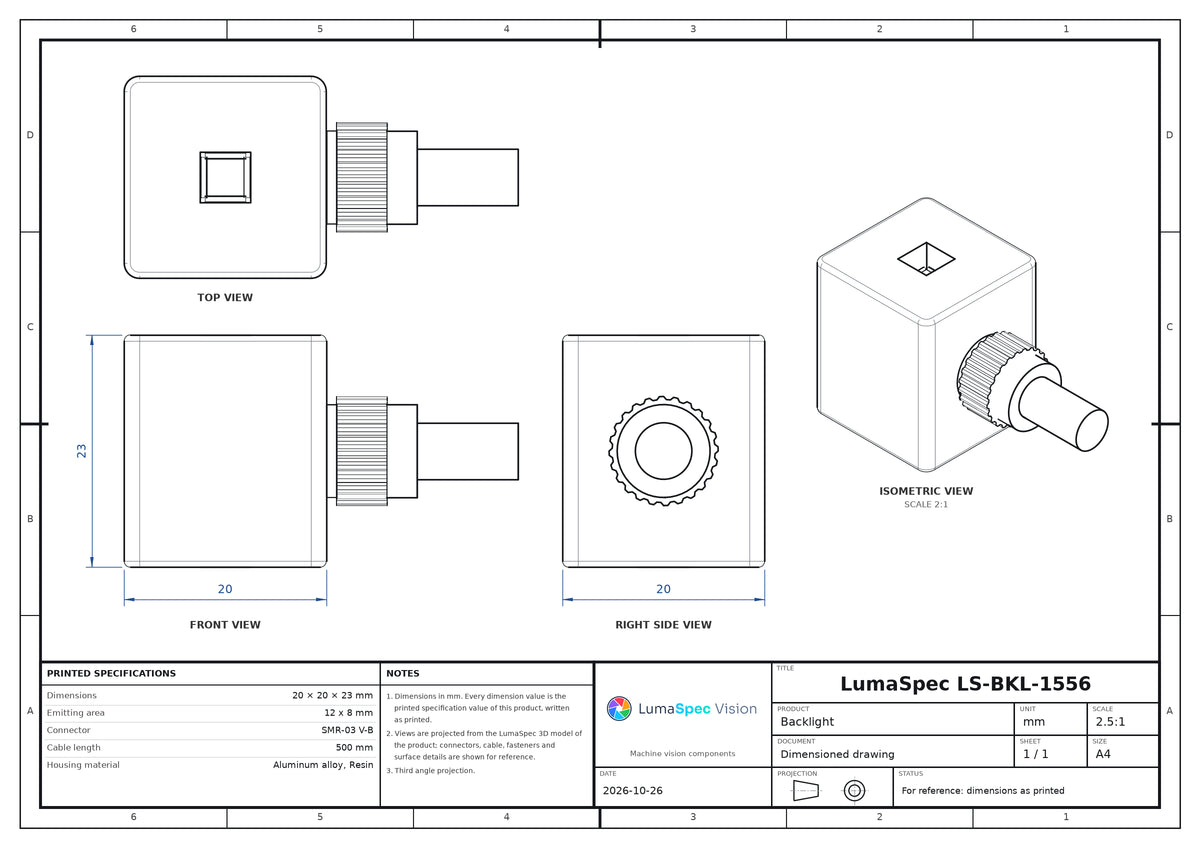

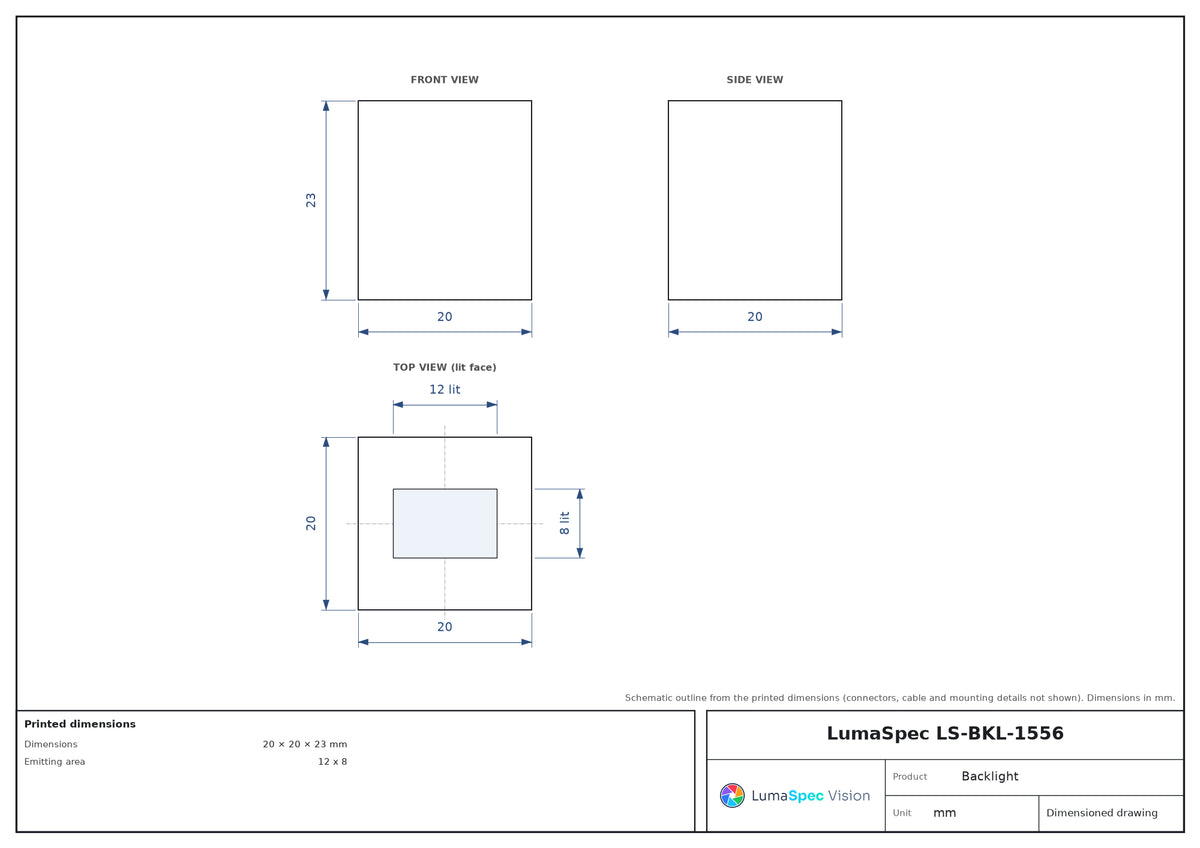

LS-BKL-1556: emitting area 12 x 8 mm, dimensions 20 x 20 x 23 mm, inner hole size 5 x 5 mm.
Square diffuse light for silhouettes, edges and gauging. Emitting area 12 x 8 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-BKL-1556 |
|---|---|
| Service life | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a guarantee) |
| Pin assignment | 1: (+), 2: NC, 3: (-) |
Interfaces and I/O
| Connector | SMR-03 V-B |
|---|---|
| Cable length | 500 mm |
Light
| Emitting area (mm) | 12 x 8 |
|---|---|
| Wavelength | Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm; infrared and UV: wavelength on request |
| Colour temperature (white) | 5800-7500K |
Environment and compliance
| Operating environment | Temperature: 0~40 °C Humidity: 20% to 85% RH (with no condensation) |
|---|
Electrical
| Supply voltage | 24 VDC |
|---|
Mechanical
| Housing material | Aluminum alloy, Resin |
|---|---|
| Inner Hole Size | 5×5 mm |
| Dimensions (mm) | 20 × 20 × 23 mm |
| Shipping weight | 2.00 kg |
Engineering data
Drive and fit the LS-BKL-1556
Supply24 V DC
Emitting area12 × 8 mmKeep the camera's field of view inside it for an even background.
Mounting and installation
| Mounting | See the dimension drawing |
|---|---|
| Viewing opening | 5 × 5 mm |
| Cable | 0.5 m |
| Connector | SMR-03 V-B |
| Housing | Aluminum alloy, Resin |
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.
Controllers for this light
Same 24 V supply
Digital power supply controller, 2 ch, 0~24 V, 16.5 A total output
LS-CTL-0344
- Channels 2
- Output 0~24 V
$359.00
Ships in 2-3 weeks
Same 24 V supply
Digital controller, 8 ch, 5.2 A total output
LS-CTL-0357
- Channels 8
- Output 16-24 V
$429.00
Ships in 2-3 weeks
Same 24 V supply
Digital power supply controller, 6 ch, 8.3 A total output
LS-CTL-0342
- Channels 6
- Output 16~24 V
$519.00
Ships in 2-3 weeks
Same 24 V supply
Digital constant-voltage light controller, 150 W, 1 channel @ 12M-2B connector
LS-CTL-0302
- Output 24 VDC
- Input 170 ~ 240 VAC, 50/60 Hz
$329.00
Ships in 2-3 weeks
Same 24 V supply
External power digital controller, 16 ch
LS-CTL-0422
- Channels 16
- Output Constant voltage 24 V
$1,599.00
Ships in 2-3 weeks
Same 24 V supply
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-BKL-1536, the same type of part
Glass, displays and optics
Fibre-end alignment
Silhouette the fibres, then calibrate before reporting an offset.Light in sourceLS-BKL-1536 · whiteExplore the study
Set up with the LS-BKL-1012, the same type of part
Metal parts and machining
Screw outline with a collimated panel
Collimated lighting improves a silhouette; stable magnification is a separate lens decision.Proposed light housing (spec)64 × 64 × 19 mmExplore the study
Set up with the LS-BKL-0719, the same type of part
Glass, displays and optics
Surface marks on optical lenses
Choose the light path for the defect class instead of treating every visible spot alike.MethodBlue coaxial reflected lightExplore the study
Before you buy
Questions about the LS-BKL-1556
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which controller drives the LS-BKL-1556?
Fit-tested controllers: LS-CTL-0561 (same 24 V supply), LS-CTL-0344 (same 24 V supply), LS-CTL-0357 (same 24 V supply) and LS-CTL-0342 (same 24 V supply).
What supply voltage does the LS-BKL-1556 need?
It runs on 24 VDC.
What temperature range is the LS-BKL-1556 rated for?
Its rated operating environment is temperature 0~40 °C Humidity 20% to 85% RH (with no condensation).
Learn
Guides for this part
Engineering guides picked for the LS-BKL-1556: how to choose it, set it up and get a better image.
Collimated backlight or diffuse backlight for edge gaugingUse a collimated backlight with a telecentric lens when you measure edges of thick, round or shiny parts: its parallel rays match the lens's narrow acceptance angle, so edges stay sharp and most of the light reaches…
Multi wavelength light: sequence colours to get more from one cameraA multi-wavelength light puts several LED colours in one housing, each on its own channel.
Which LED colour gives the best contrast in machine visionPick the light colour that makes the feature and its background reflect differently.
Other models in the Square diffuse light (LS-BKL-S139) series
See all 7 modelsHow this model compares
- Emitting area 12 x 8 mm, the smallest of 7 sizes in the series (12 x 8 to 187 x 107 mm); next larger area 20 x 20 mm (LS-BKL-1557).
- Compared with LS-BKL-1558: emitting area 12 x 8 mm here, 36 x 36 mm there.
Swipe to see all columns
| Model | Emitting area | Size | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-BKL-1556This model | 12 x 8 mm | 20 x 20 x 23 mm | from $190.00 | Ships in 3-4 weeks | |
| LS-BKL-1557 | 20 x 20 mm | 32 x 32 x 30 mm | from $200.00 | Ships in 3-4 weeks | View |
| LS-BKL-1558 | 36 x 36 mm | 48 x 48 x 30 mm | from $250.00 | Ships in 3-4 weeks | View |
| LS-BKL-1559 | 63 x 63 mm | 75 x 75 x 30 mm | from $270.00 | Ships in 3-4 weeks | View |
| LS-BKL-1560 | 84 x 84 mm | 96 x 96 x 30 mm | from $320.00 | Ships in 3-4 weeks | View |
| LS-BKL-1561 | 108 x 108 mm | 120 x 120 x 30 mm | from $375.00 | Ships in 3-4 weeks | View |
| LS-BKL-1562 | 187 x 107 mm | 200 x 120 x 30 mm | from $495.00 | Ships in 3-4 weeks | View |
