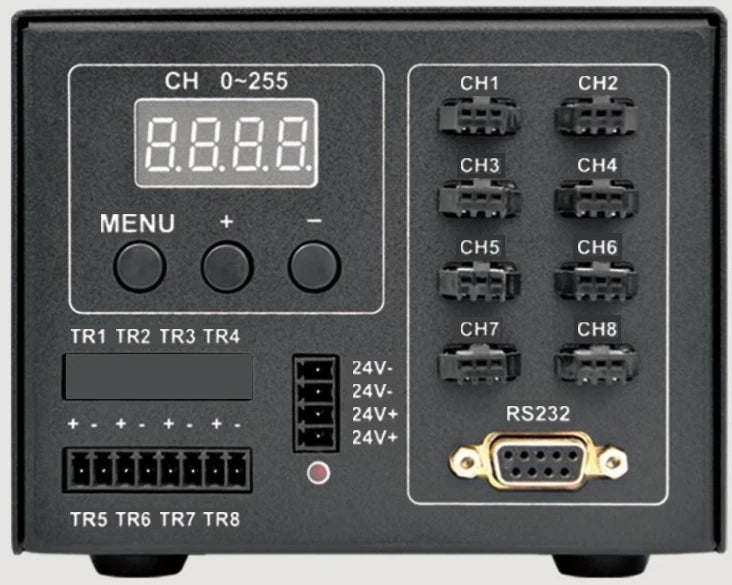

Representative photo of this series
Light controllers
External power digital controller, 16 ch (LS-CTL-0422)
Model LS-CTL-0422
- Channels16
- Control9600-115200bps optional
- TriggerEdge + level trigger
- OutputConstant voltage 24 V
$1,599.00
Ships in 2-3 weeks
0.95 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Support RS232 communication. External power supply up to 24V. Low trigger response time.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0422 |
|---|---|
| Working mode | 0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe |
| Control | digital (buttons, 4-digit display) / RS232 |
Interfaces and I/O
| Communication baud rate | 9600-115200bps optional |
|---|
Light
| Brightness level | 255 levels |
|---|---|
| Luminous mode | Normal light, normal extinction, strobe |
| Connected light source type | 10mA~2A 24V power supply |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum input voltage | 24V |
|---|---|
| Maximum output voltage | 24V |
| Overheat protection | NO |
| Short-circuit protection | have |
| Millisecond strobe time | 1~999ms |
| Microsecond strobe time | 1~999us |
| Trigger mode | Edge + level trigger |
| Driving mode | PWM |
| Built-in power supply power | NO |
| Number of channels | 16 |
| Maximum output current of single channel | 2A |
Mechanical

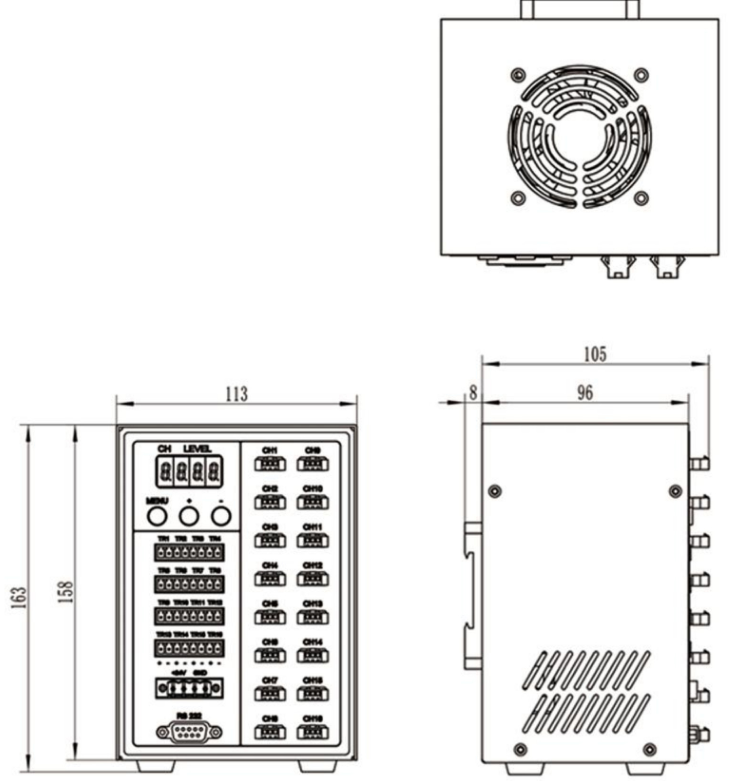

| Dimension | 113×113×163mm |
|---|---|
| Shipping weight | 0.95 kg |
Other models in the External power digital controller, 8/16 channels (LS-CTL-S83) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0423 | 8 ch | $709.00 | Ships in 2-3 weeks | View |
