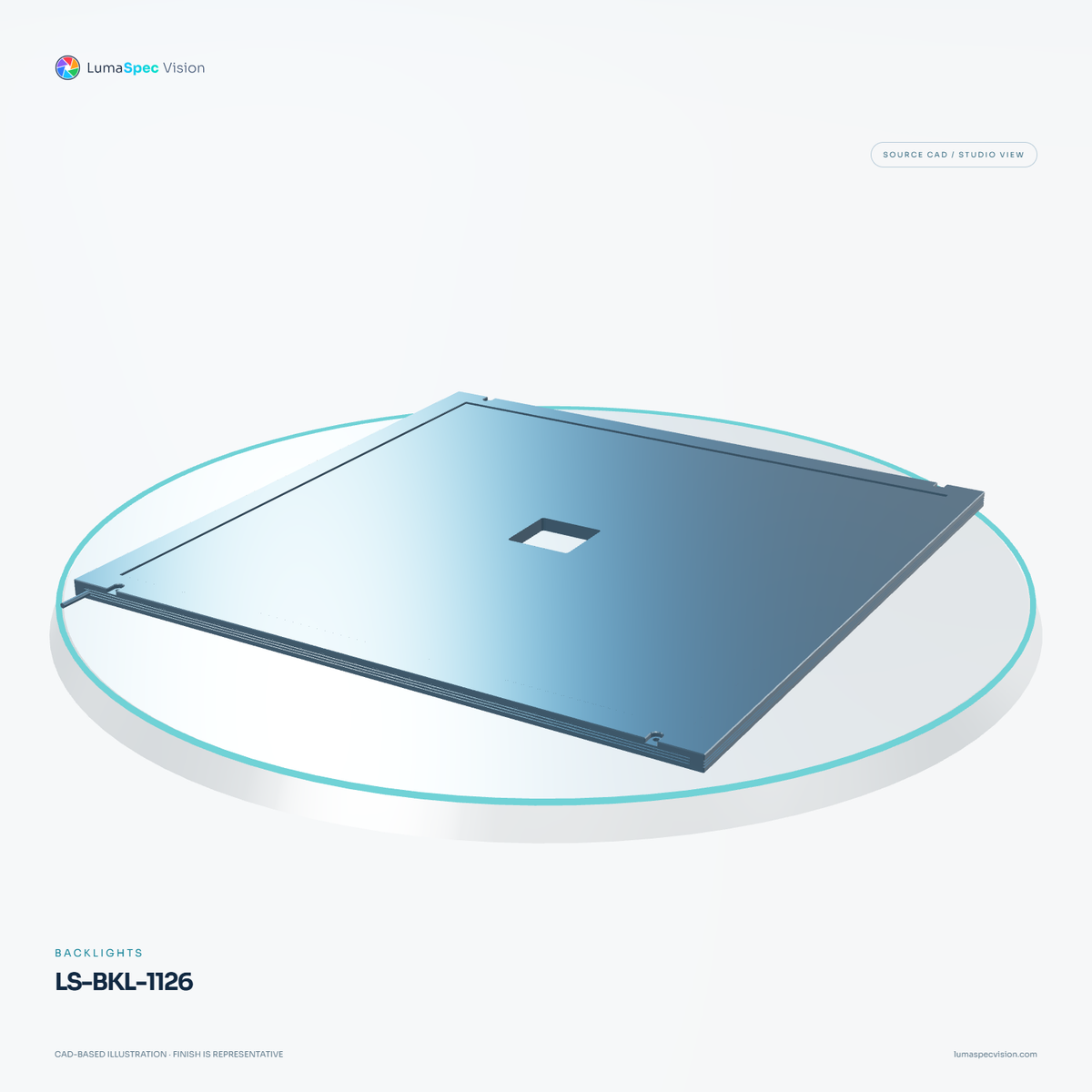

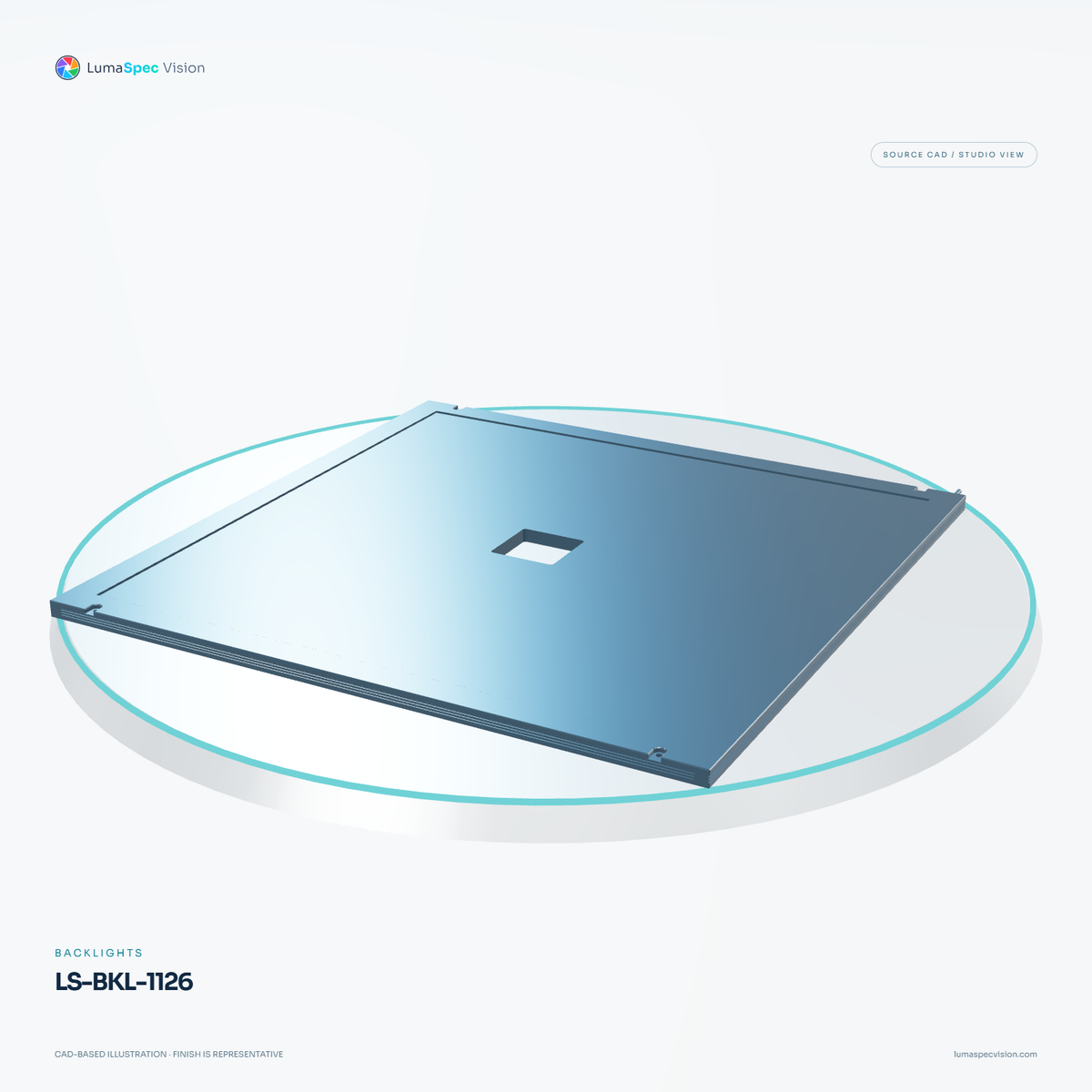

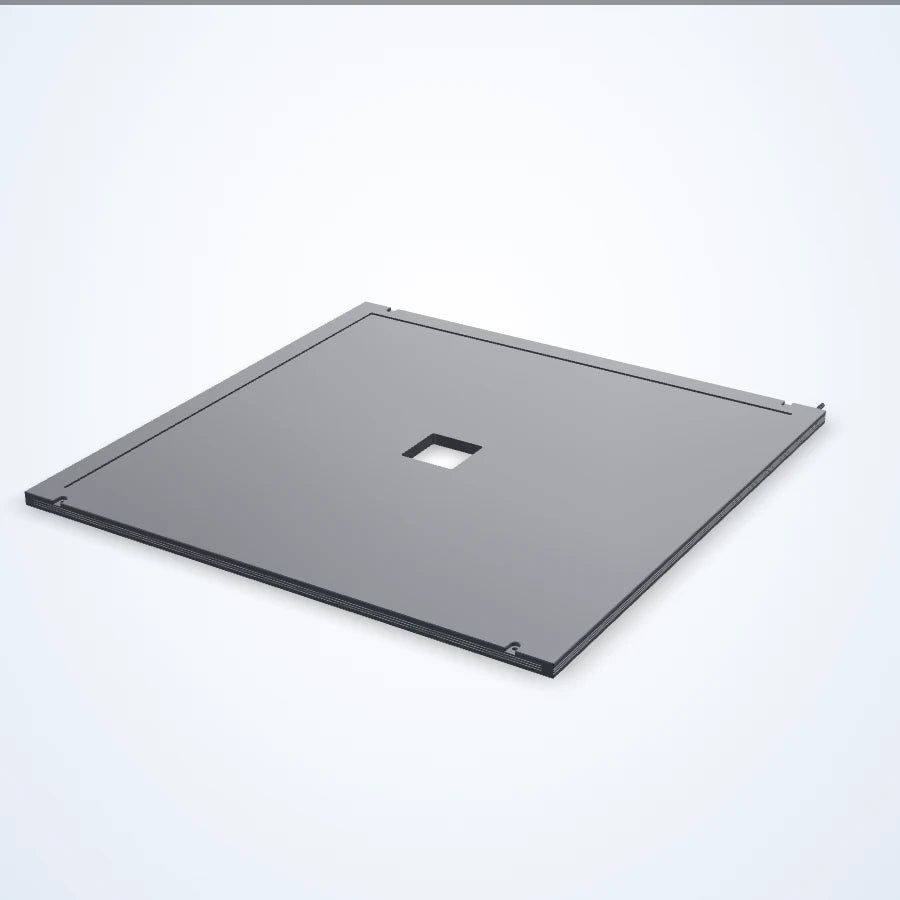

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.
Backlights
350 x 350 mm Edge-Lit Through-Hole LED Backlight (LS-BKL-1126)
Model LS-BKL-1126-R
- ColourRed, Green, Blue, White
- Emitting area350x350 mm
- Size385x385x9.5 mm
- Voltage24 V
- Power28 W
Ships in 2-3 weeks
1.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
350 x 350 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight (LED + light-guide plate) with a central through-hole so the camera looks through the light onto the part below; square (T) or round (D) hole, 9.5 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1126 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 350x350 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 18.8 |
| Power W/B/G (W) | 28 |
Mechanical
| Hole size (mm) | 40x40 |
|---|---|
| Outer size L x W x H (mm) | 385x385x9.5 |
| Thickness (mm) | 9.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Shipping weight (estimated) | 1.70 kg |
Mounting and drawing data

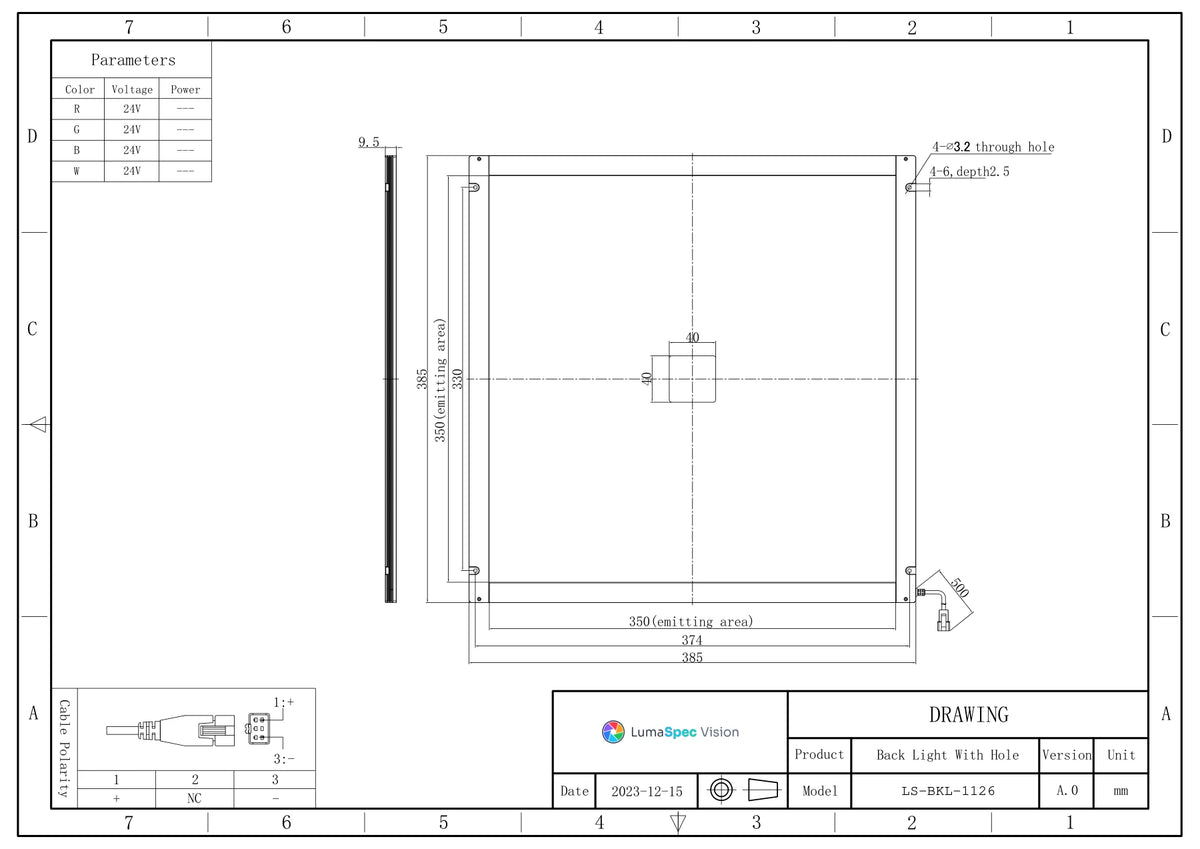

drawing table (X = qty of 3.2 mm through mounting holes): X=4, C=330, D=374, hole size=40X40
LS-BKL-1126

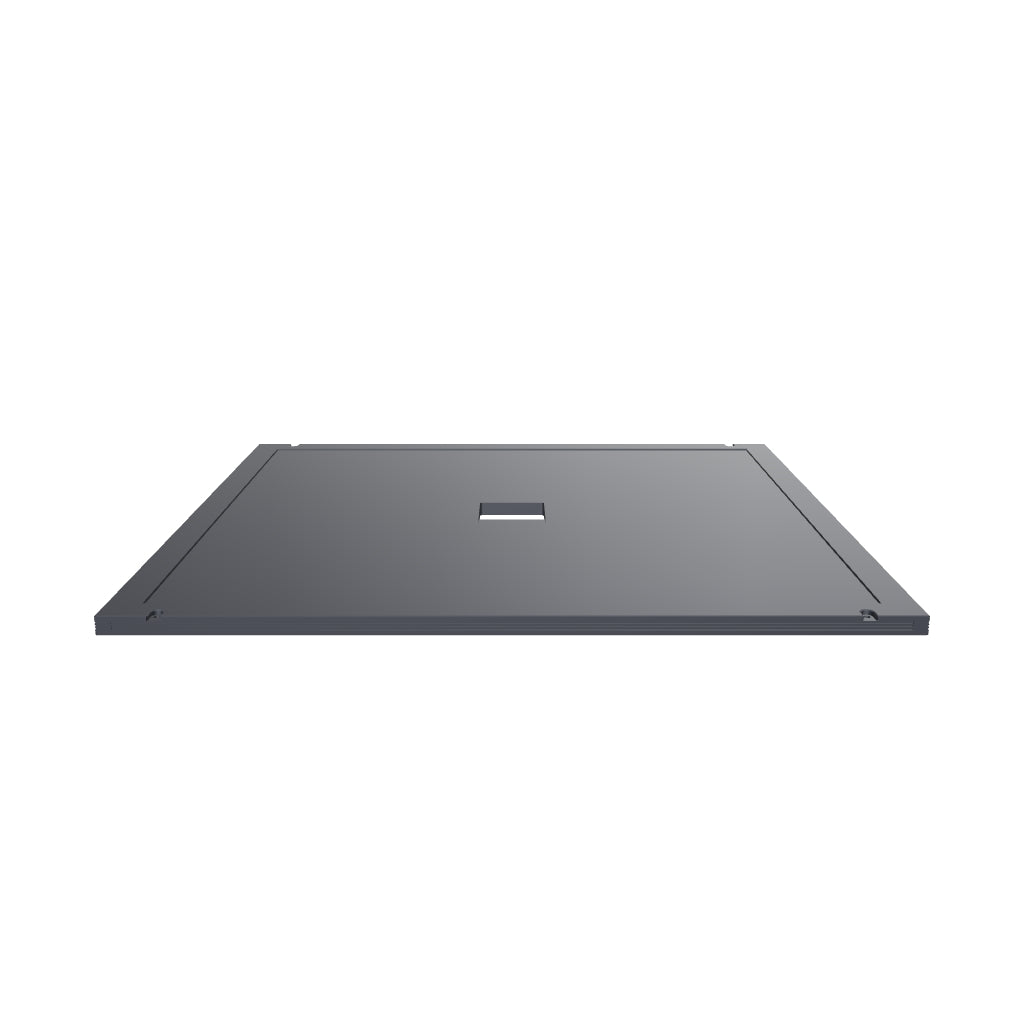

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Outer size L x W x H (mm)
- 385x385x9.5
- Emitting area (mm)
- 350x350
- Voltage (V)
- 24
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Flank Back Light with Hole (LS-BKL-S110) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1123 | 150 x 100 mm | $369.00 | Ships in 2-3 weeks | View |
| LS-BKL-1124 | 200 x 200 mm | $609.00 | Ships in 2-3 weeks | View |
| LS-BKL-1125 | 250 x 200 mm | $709.00 | Ships in 2-3 weeks | View |
| LS-BKL-1127 | 400 x 300 mm | $1,319.00 | Ships in 2-3 weeks | View |
| LS-BKL-1128 | 600 x 400 mm | $1,629.00 | Ships in 2-3 weeks | View |
