200 x 200 mm Edge-Lit Through-Hole LED Backlight, 40x40 opening (LS-BKL-1124)
Model LS-BKL-1124
- ColourRed, Green, Blue, White
- Emitting area200x200 mm
- Size235x235x9.5 mm
- Voltage24 V
- Power17.5 W
$609.00
Ships in 2-3 weeks
0.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
200 x 200 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight (LED + light-guide plate) with a central through-hole so the camera looks through the light onto the part below; square (T) or round (D) hole, 9.5 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1124 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 200x200 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 11.7 |
| Power W/B/G (W) | 17.5 |
Mechanical
| Hole size (mm) | 40x40 |
|---|---|
| Outer size L x W x H (mm) | 235x235x9.5 |
| Thickness (mm) | 9.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Shipping weight (estimated) | 0.75 kg |

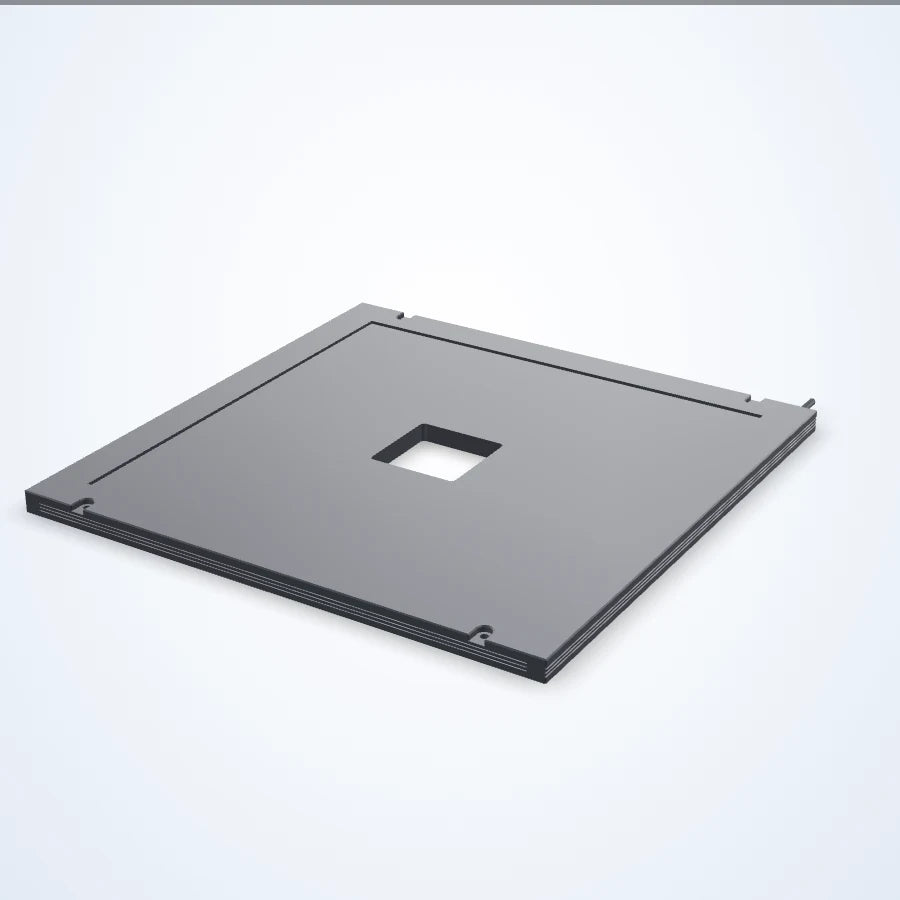

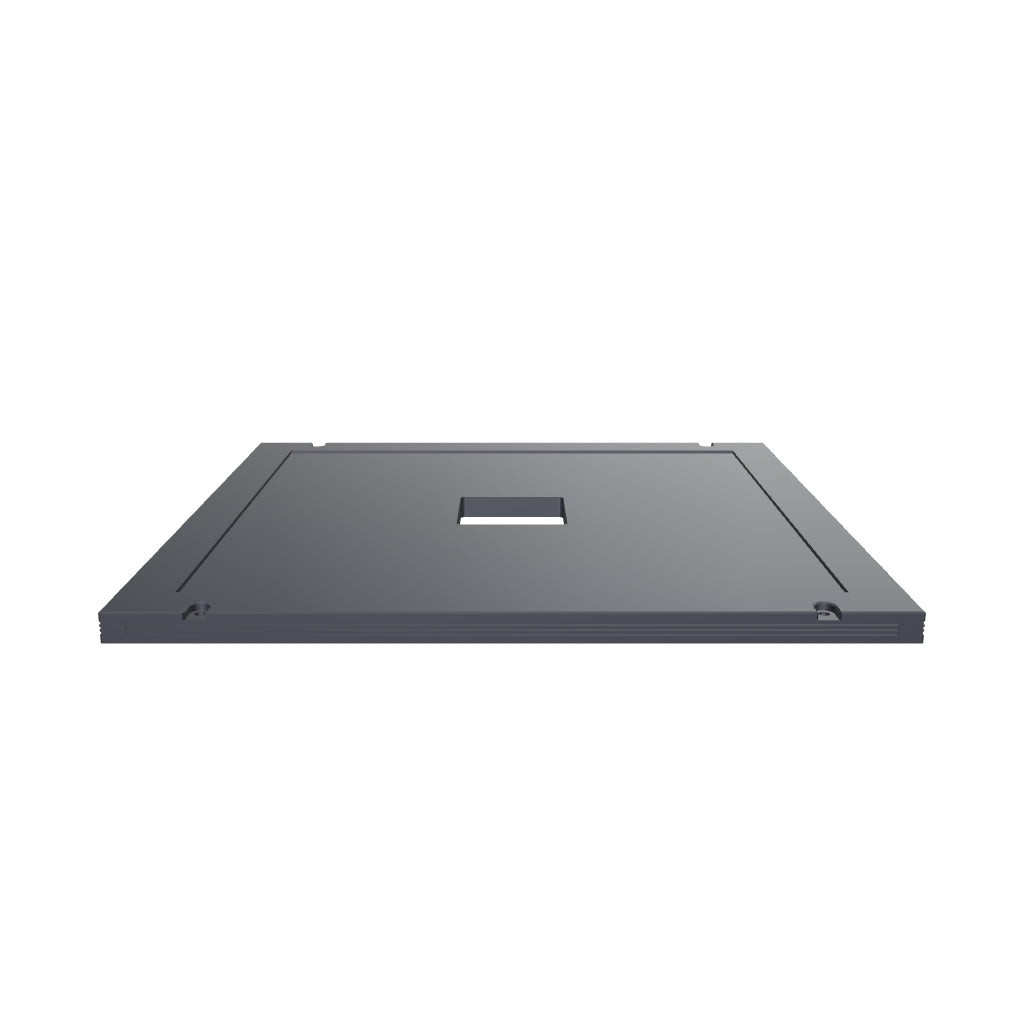

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data
drawing table (X = qty of 3.2 mm through mounting holes): X=4, C=180, D=224, hole size=40X40
