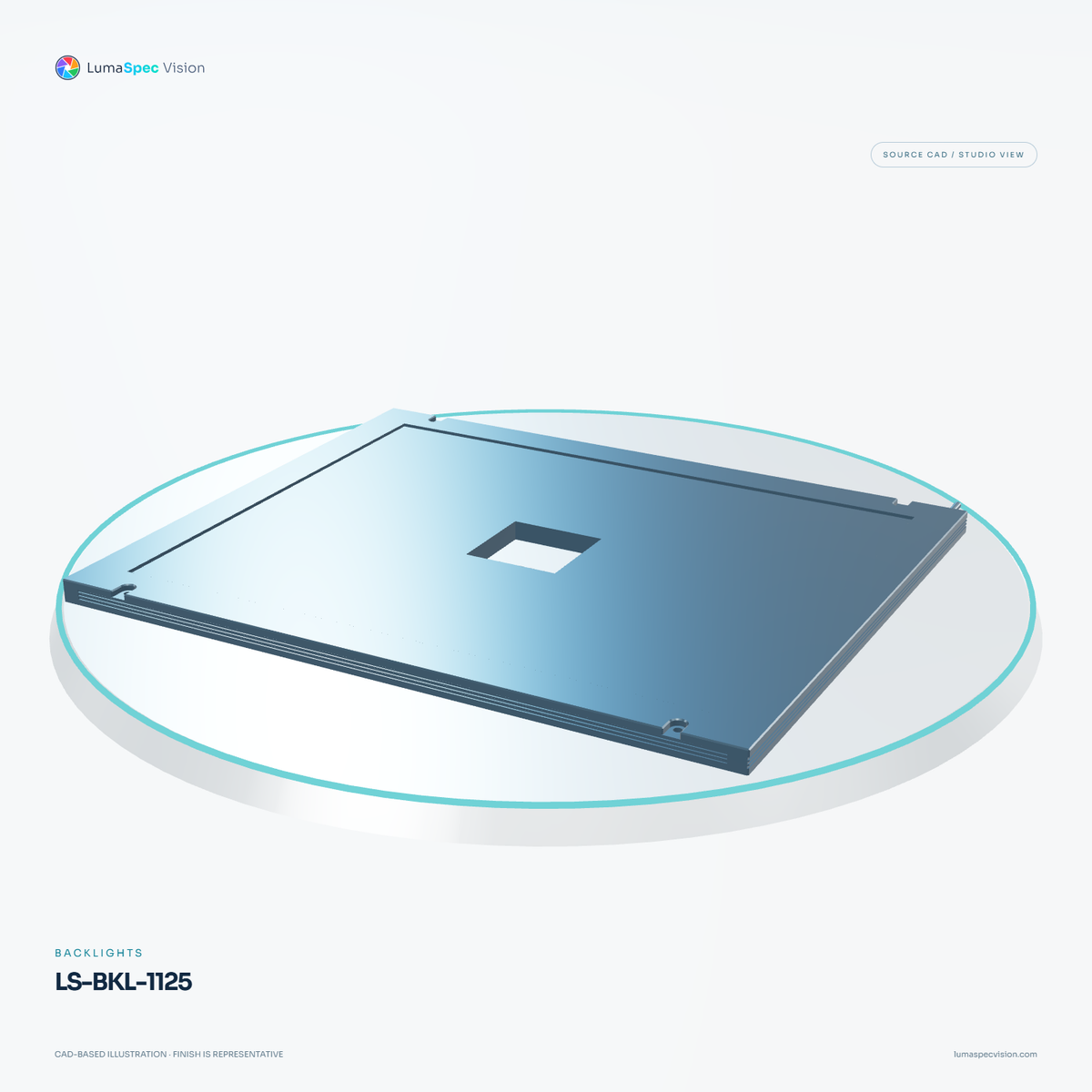

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.
Backlights
250 x 200 mm Edge-Lit Through-Hole LED Backlight (LS-BKL-1125)
Model LS-BKL-1125
- ColourRed, Green, Blue, White
- Emitting area250x200 mm
- Size285x235x9.5 mm
- Voltage24 V
- Power20 W
Ships in 2-3 weeks
0.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
250 x 200 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight (LED + light-guide plate) with a central through-hole so the camera looks through the light onto the part below; square (T) or round (D) hole, 9.5 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1125 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 250x200 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 13.4 |
| Power W/B/G (W) | 20 |
Mechanical
| Hole size (mm) | 45x45 |
|---|---|
| Outer size L x W x H (mm) | 285x235x9.5 |
| Thickness (mm) | 9.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Shipping weight (estimated) | 0.85 kg |

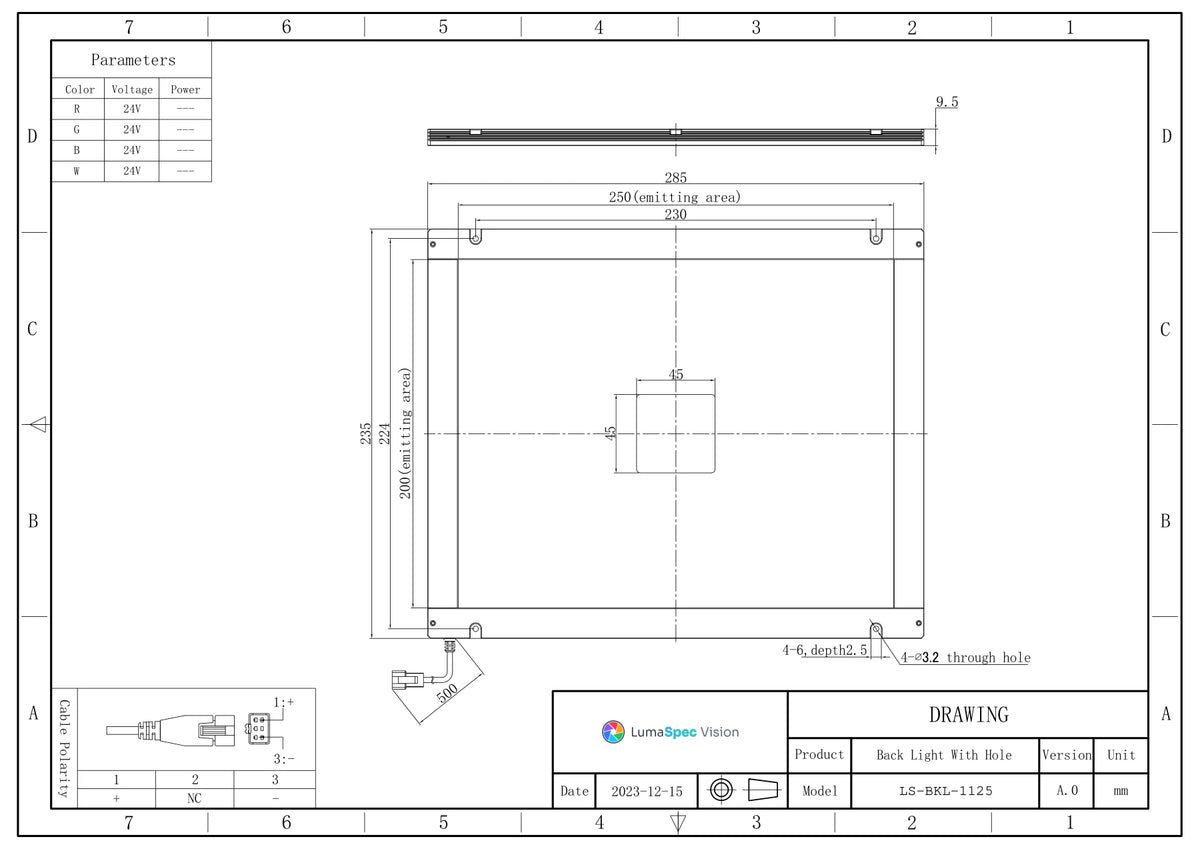

Mounting and drawing data
drawing table (X = qty of 3.2 mm through mounting holes): X=4, C=230, D=224, hole size=45X45
LS-BKL-1125

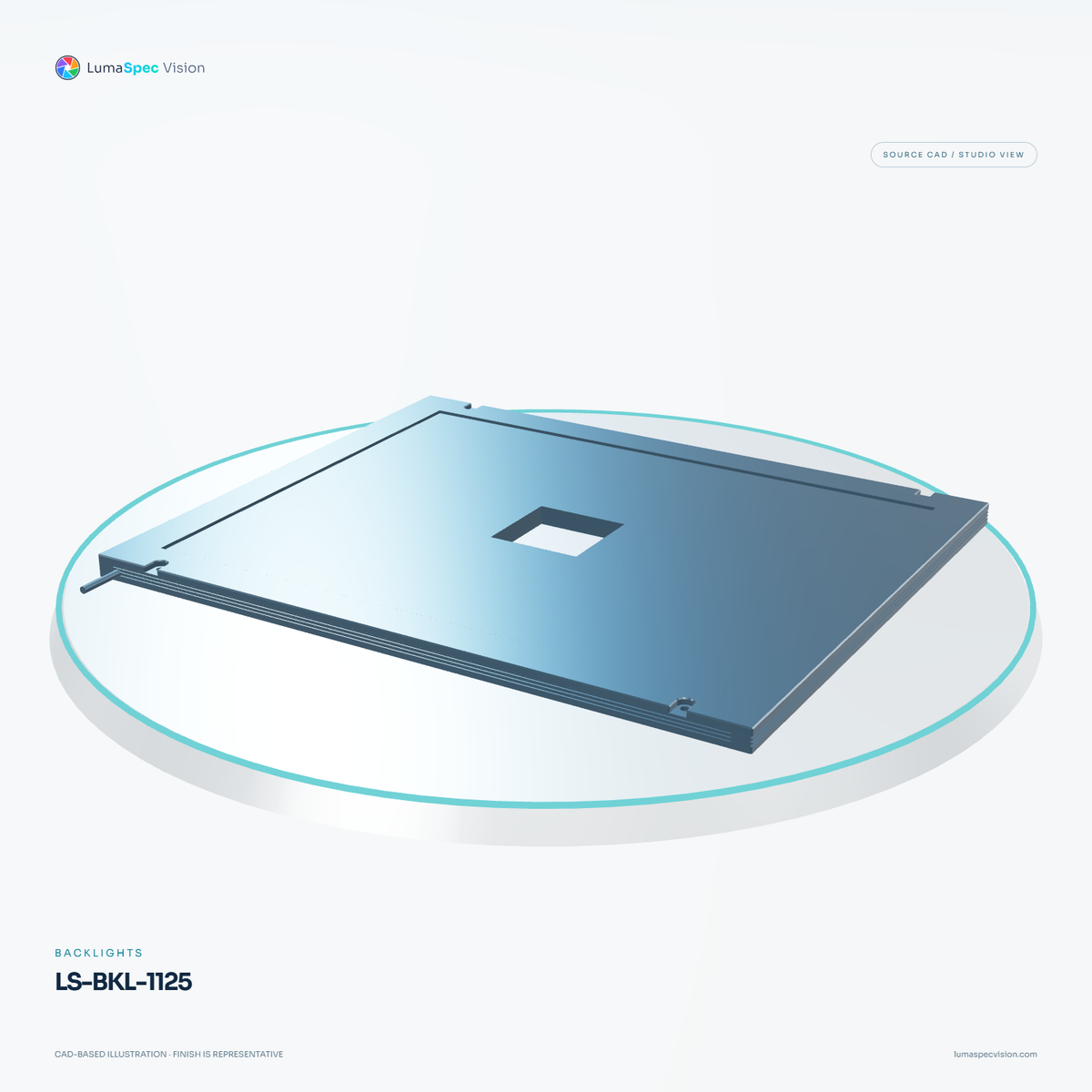

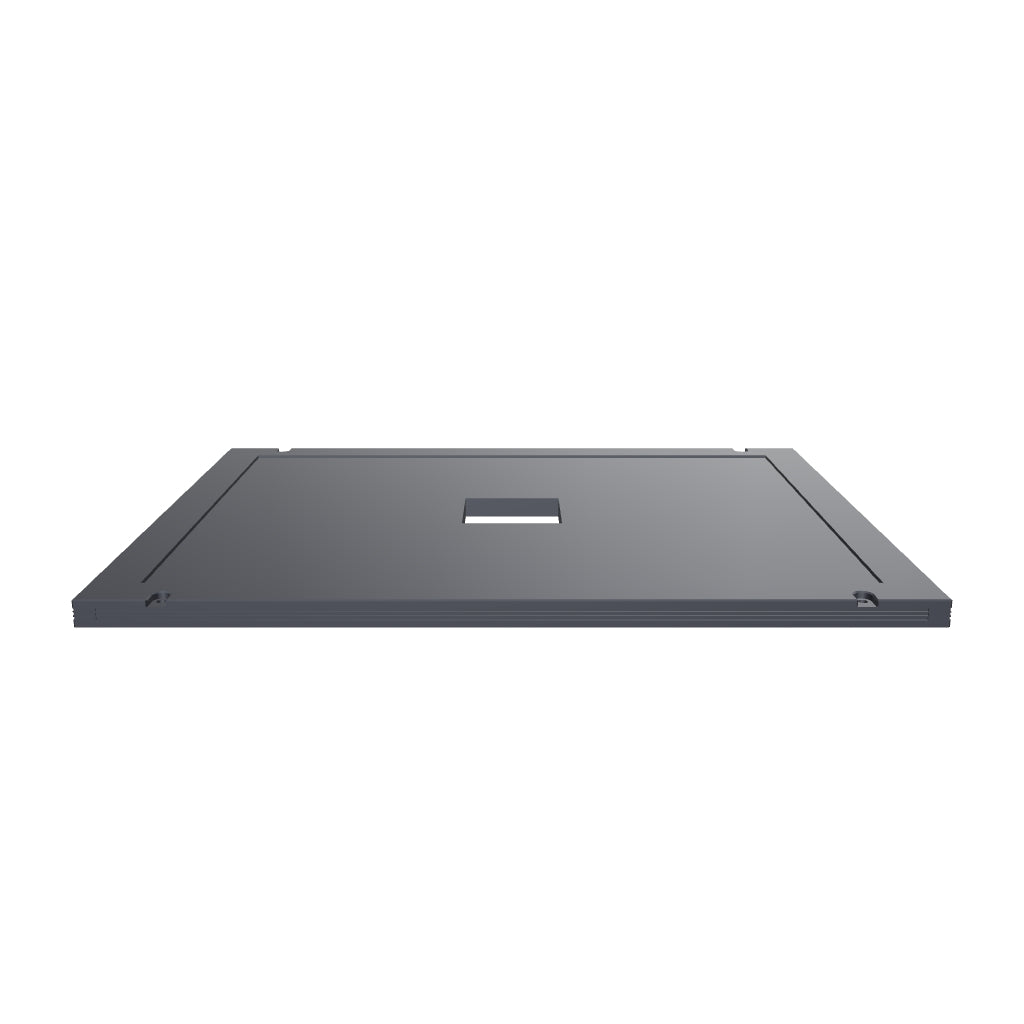

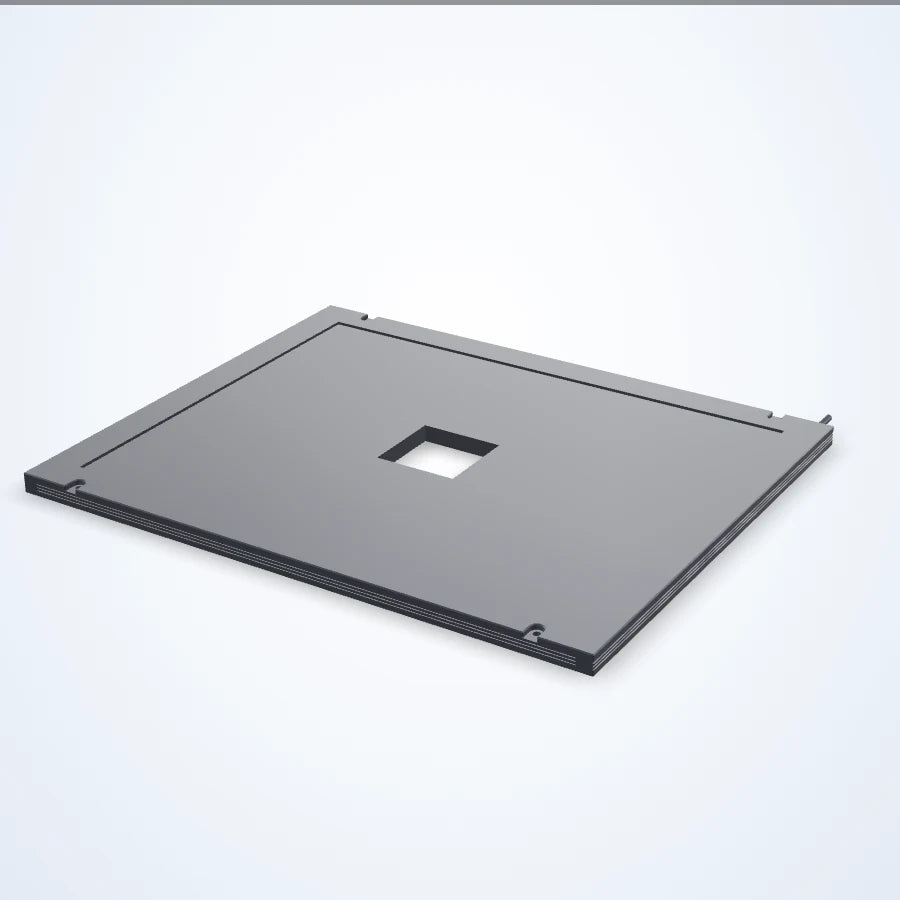

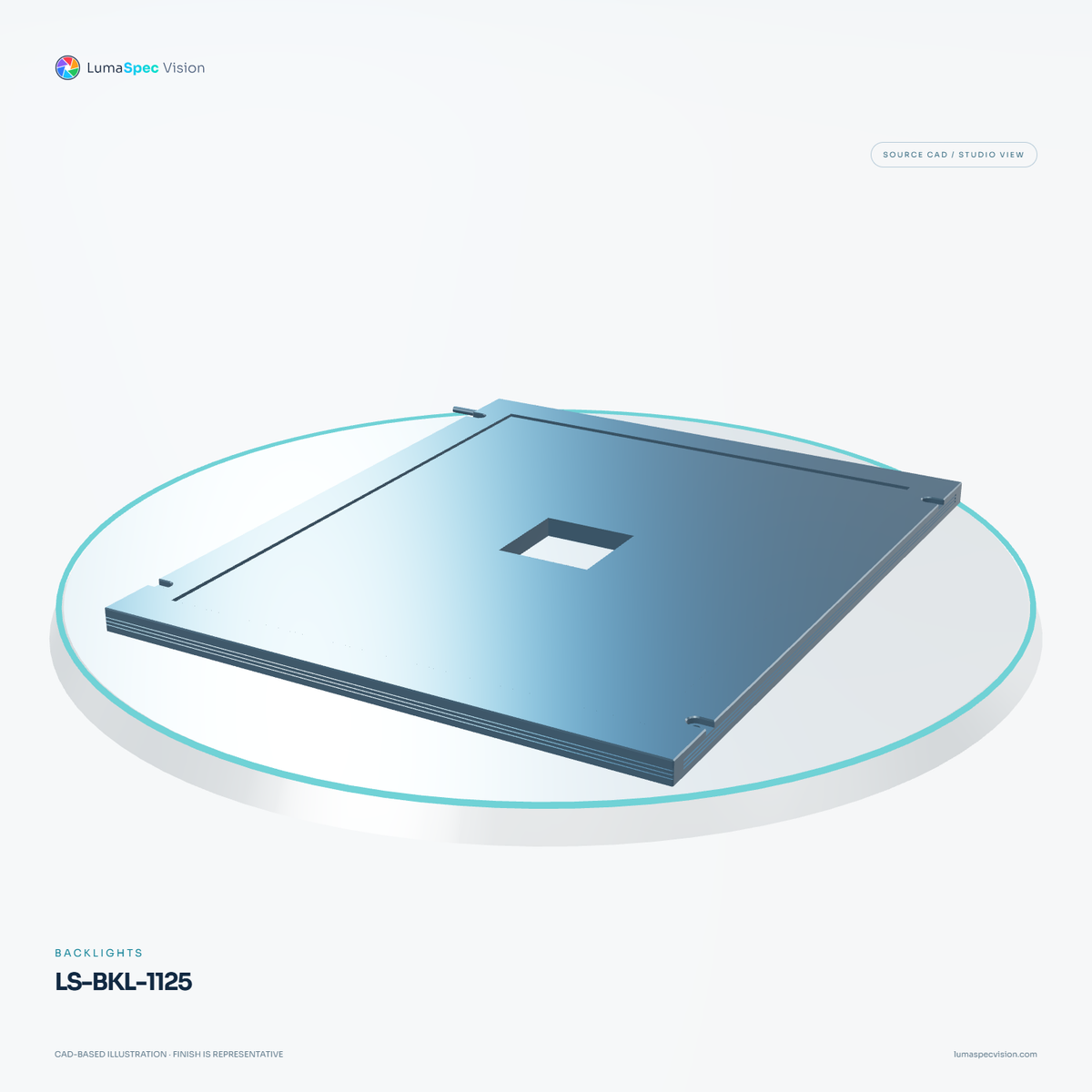

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Outer size L x W x H (mm)
- 285x235x9.5
- Emitting area (mm)
- 250x200
- Voltage (V)
- 24
- Power R (W)
- 13.4
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
