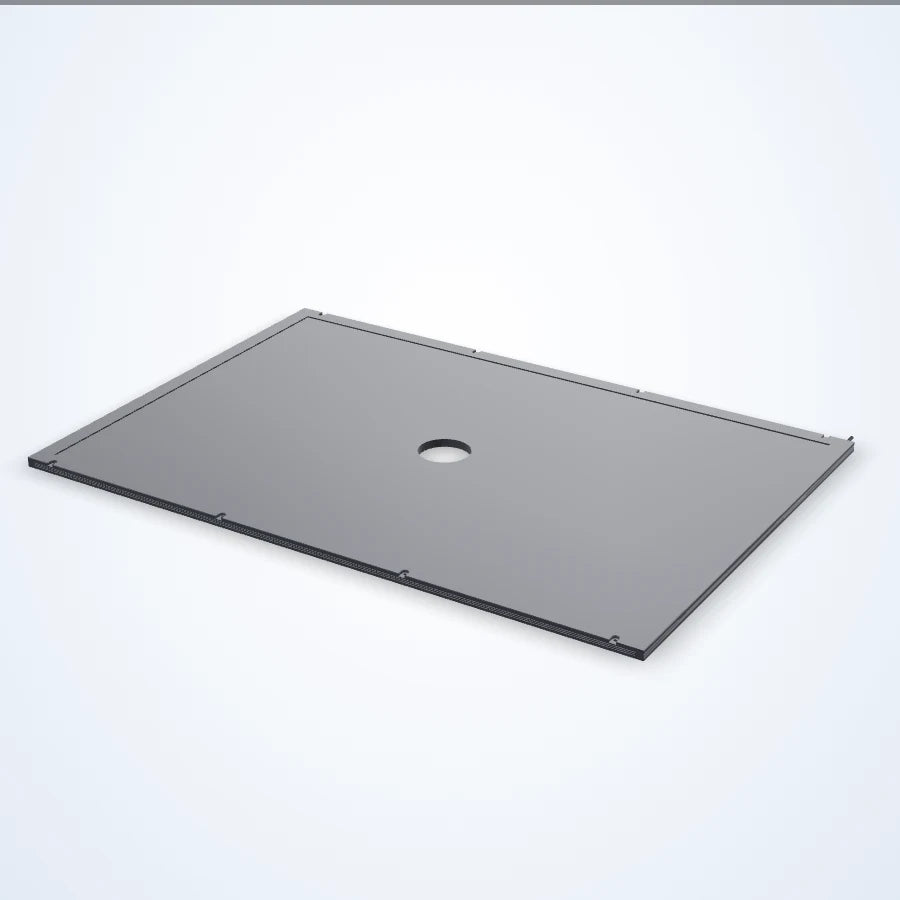

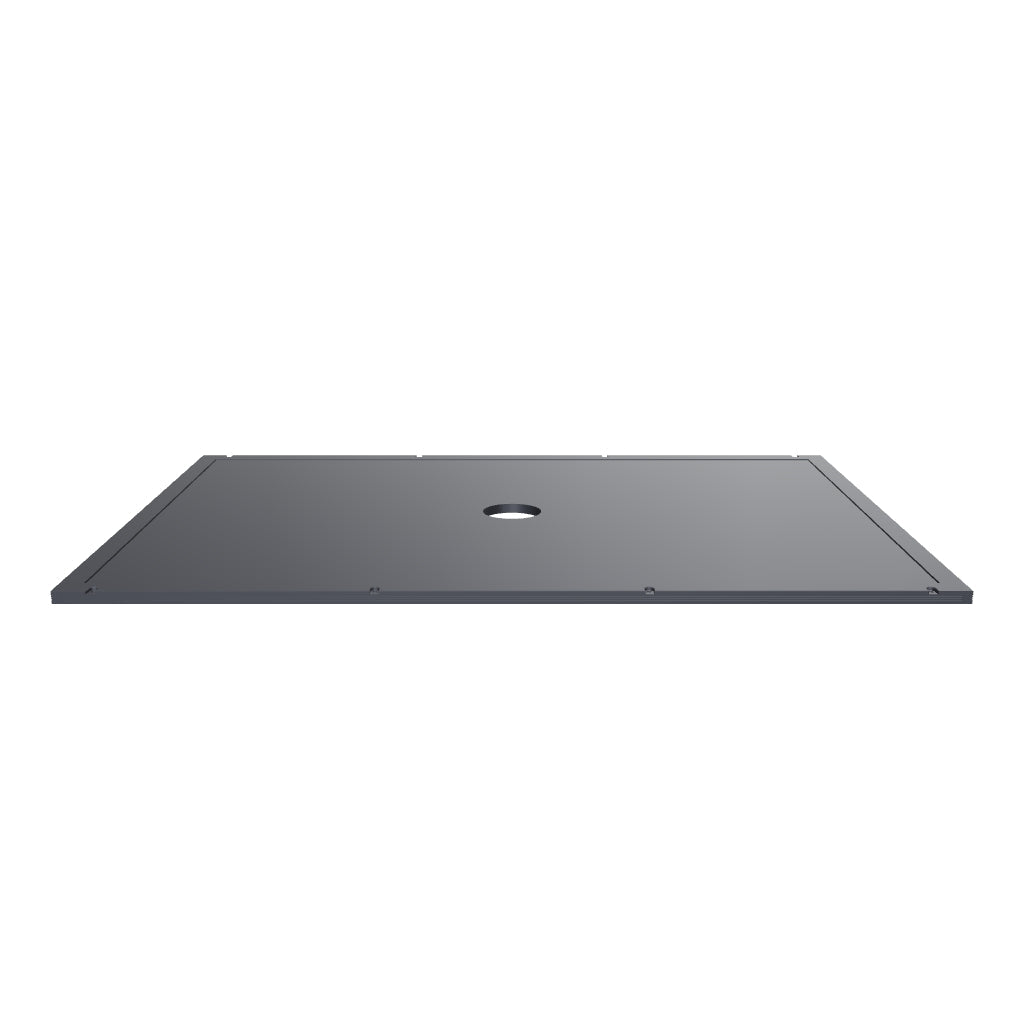

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.
Backlights
600 x 400 mm Edge-Lit Through-Hole LED Backlight (LS-BKL-1128)
Model LS-BKL-1128-R
- ColourRed, Green, Blue, White
- Emitting area600x400 mm
- Size635x435x9.5 mm
- Voltage24 V
- Power54 W
Ships in 2-3 weeks
3.05 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
600 x 400 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight (LED + light-guide plate) with a central through-hole so the camera looks through the light onto the part below; square (T) or round (D) hole, 9.5 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1128 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 600x400 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 36.2 |
| Power W/B/G (W) | 54 |
Mechanical
| Hole size (mm) | Φ50 |
|---|---|
| Outer size L x W x H (mm) | 635x435x9.5 |
| Thickness (mm) | 9.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Shipping weight (estimated) | 3.05 kg |

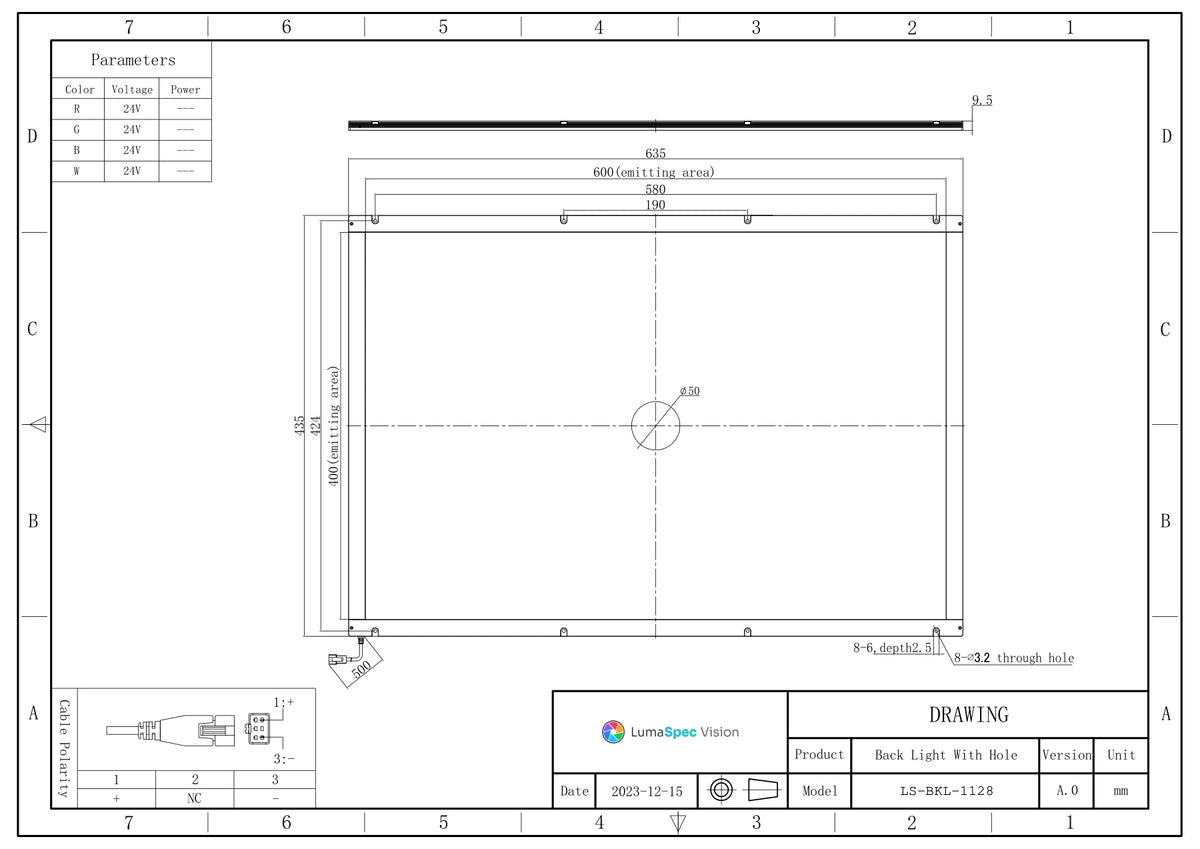

Mounting and drawing data
drawing table (X = qty of 3.2 mm through mounting holes): X=8, C=424, D=580/190, hole size=Φ51; drawing table hole size Φ51 vs parameter table Φ50
LS-BKL-1128

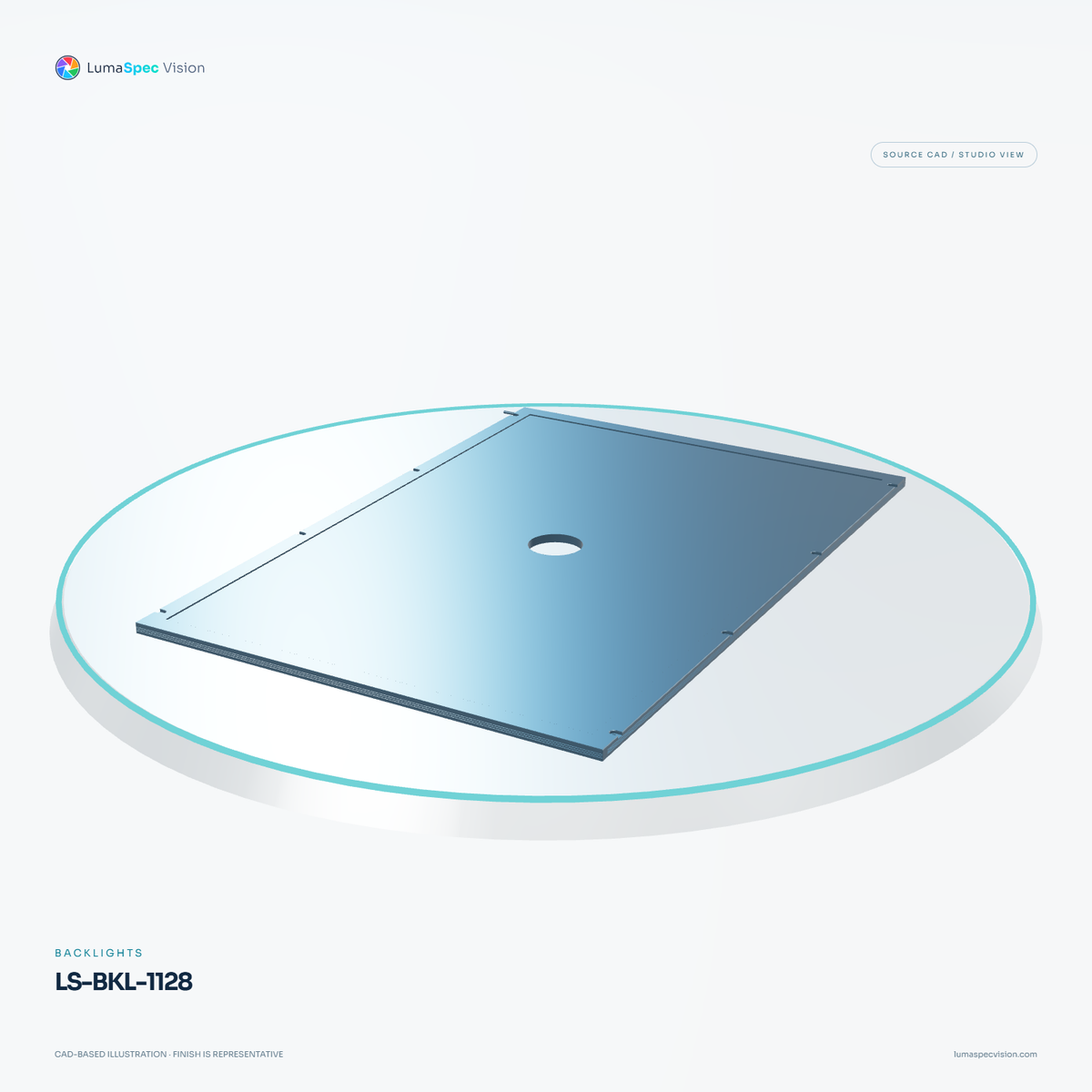

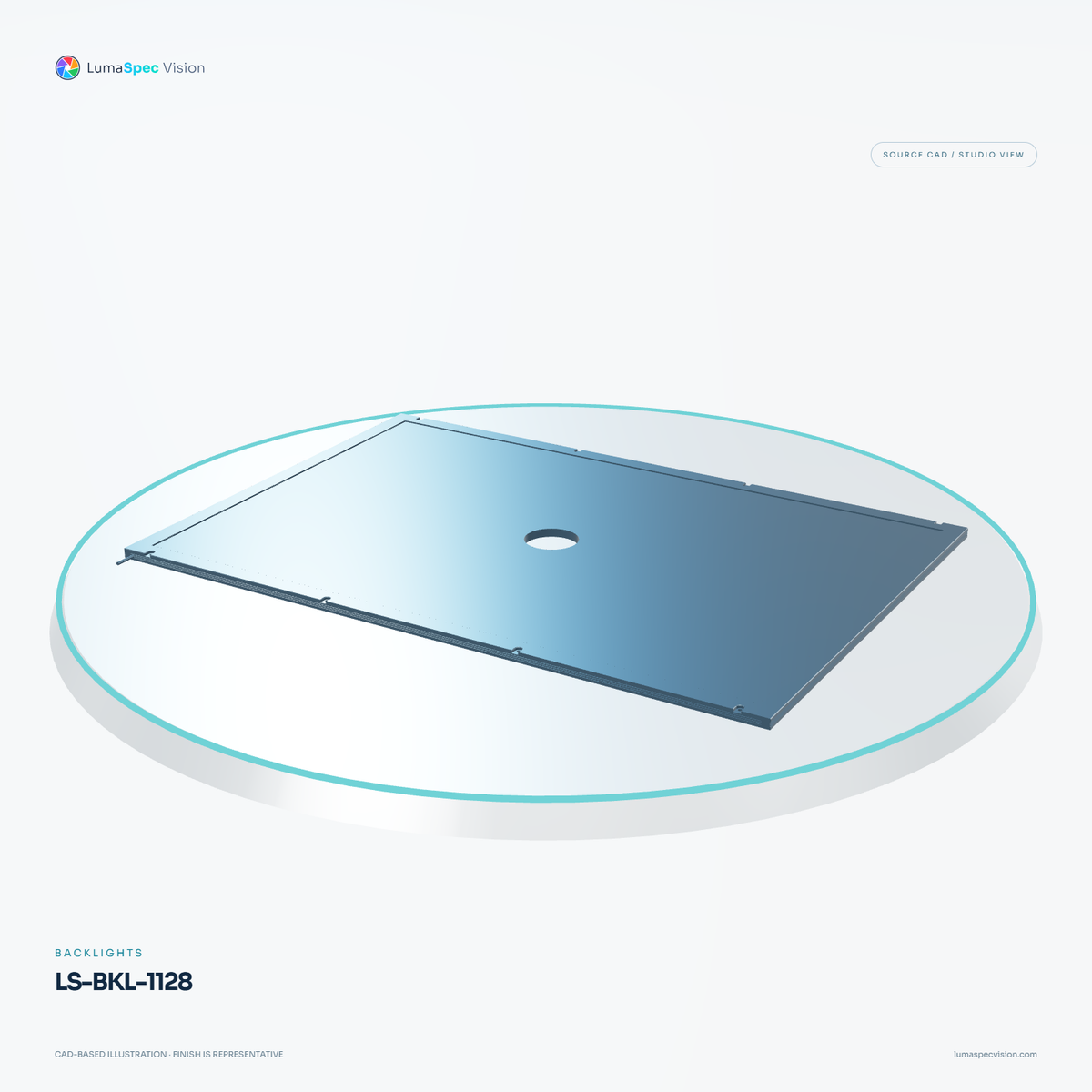

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Outer size L x W x H (mm)
- 635x435x9.5
- Emitting area (mm)
- 600x400
- Voltage (V)
- 24
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
