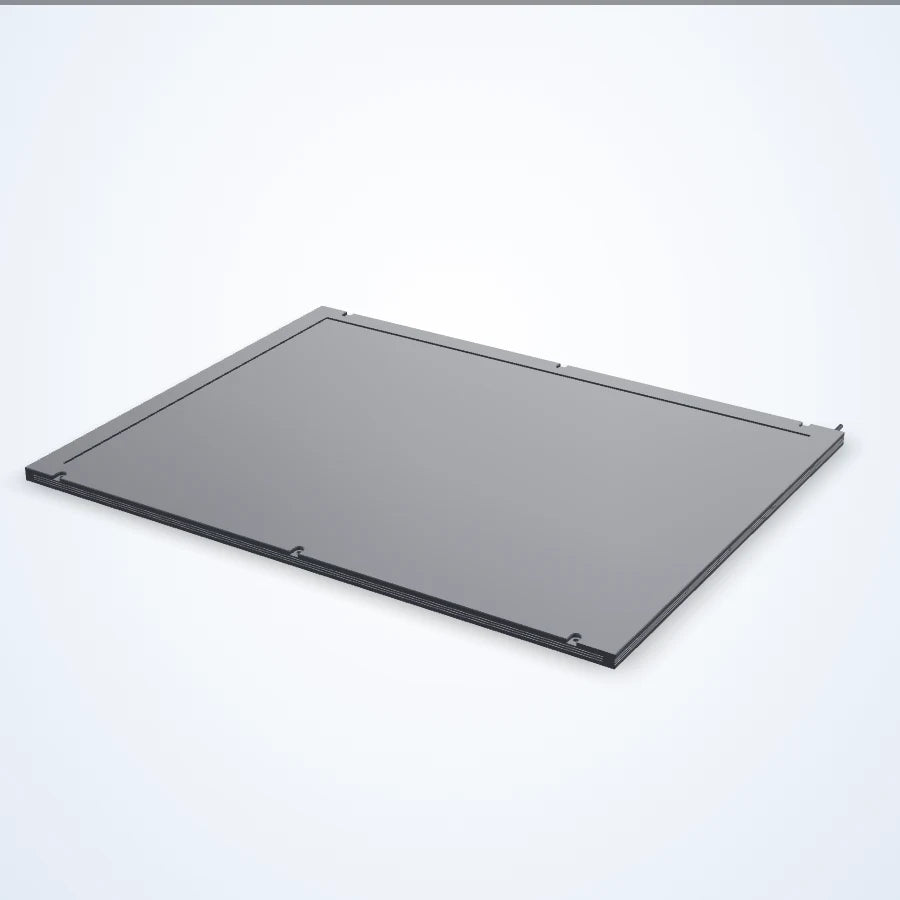

  • LS-BKL-1121 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

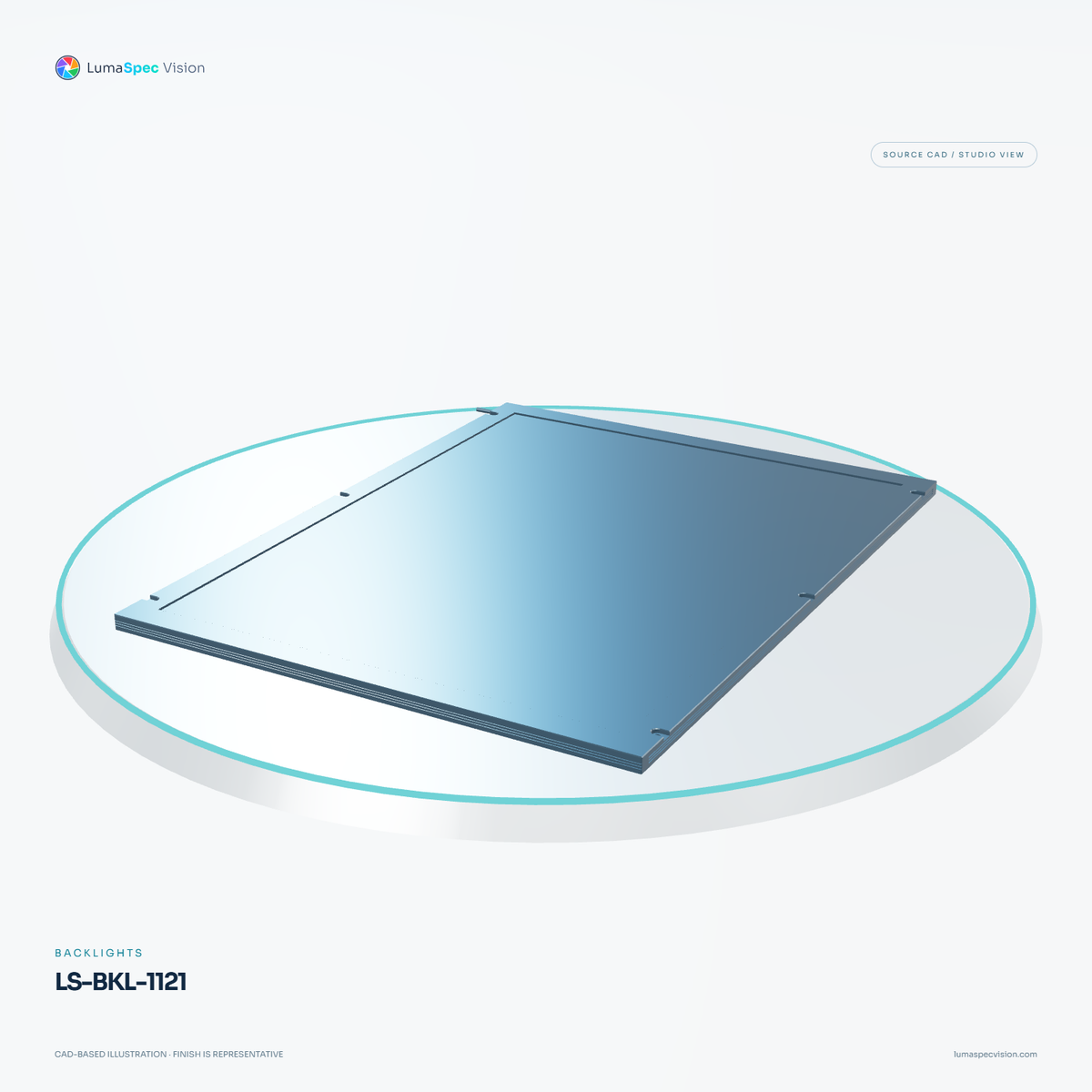

  • LS-BKL-1121 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

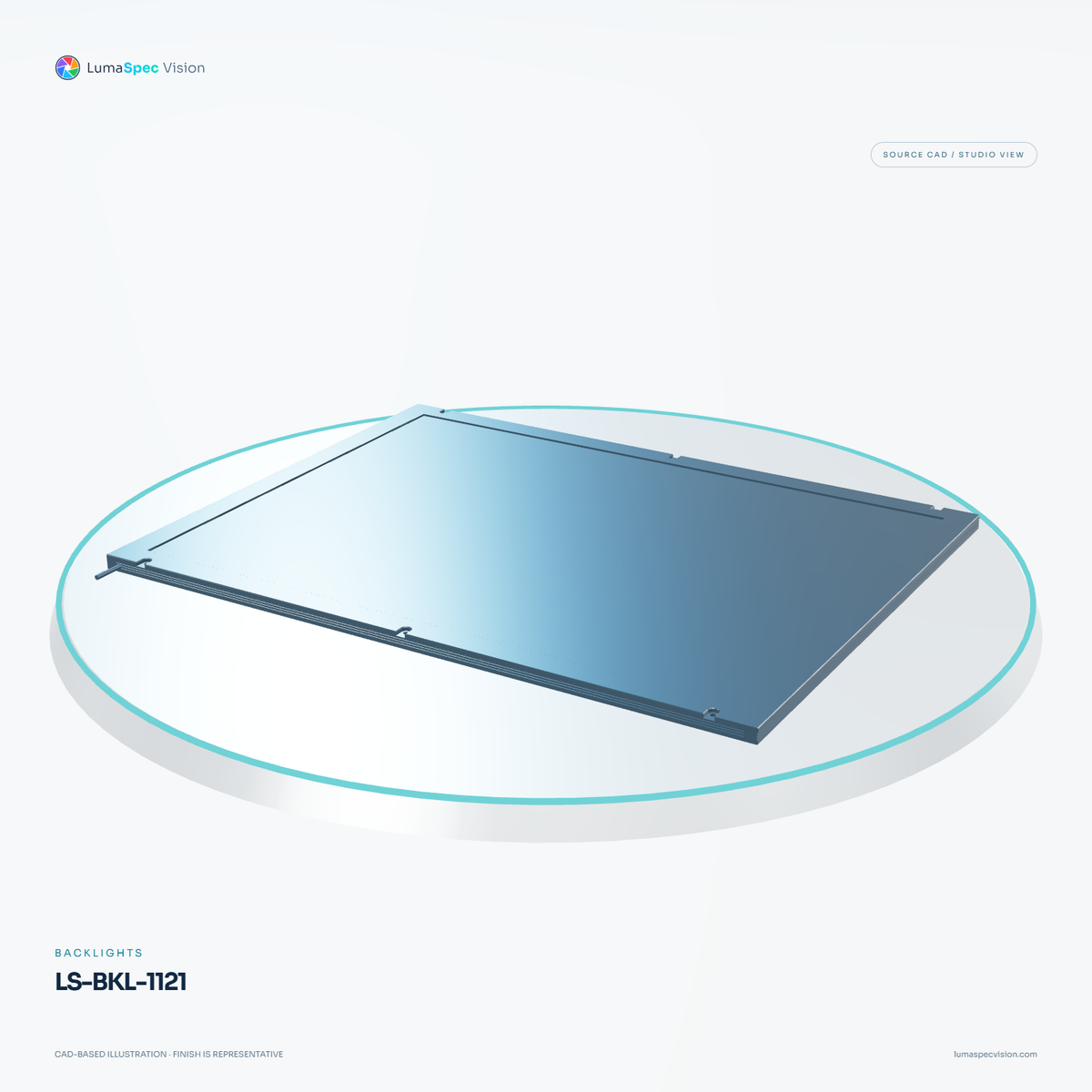

  • LS-BKL-1121 — Backlights, 3D view 3. CAD-based illustration; finish is representative.

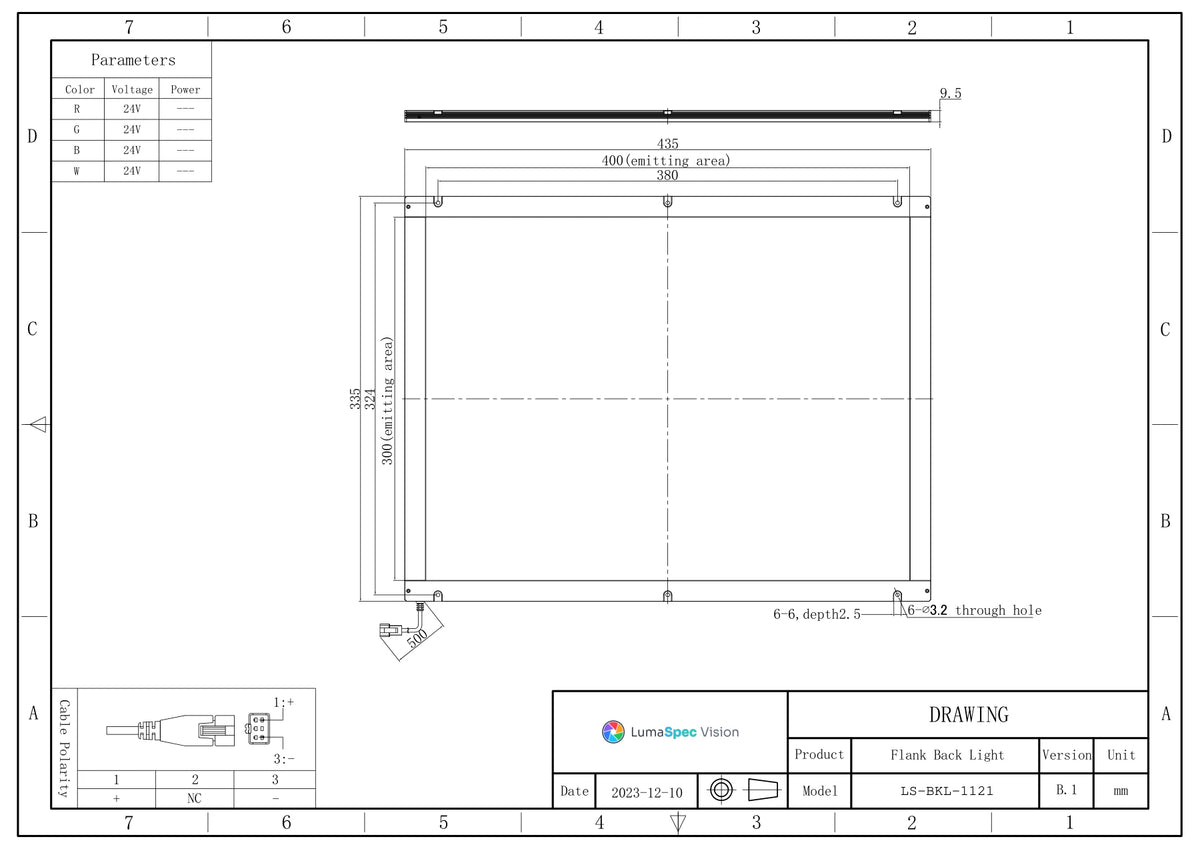

  • LS-BKL-1121 dimensions (mm)

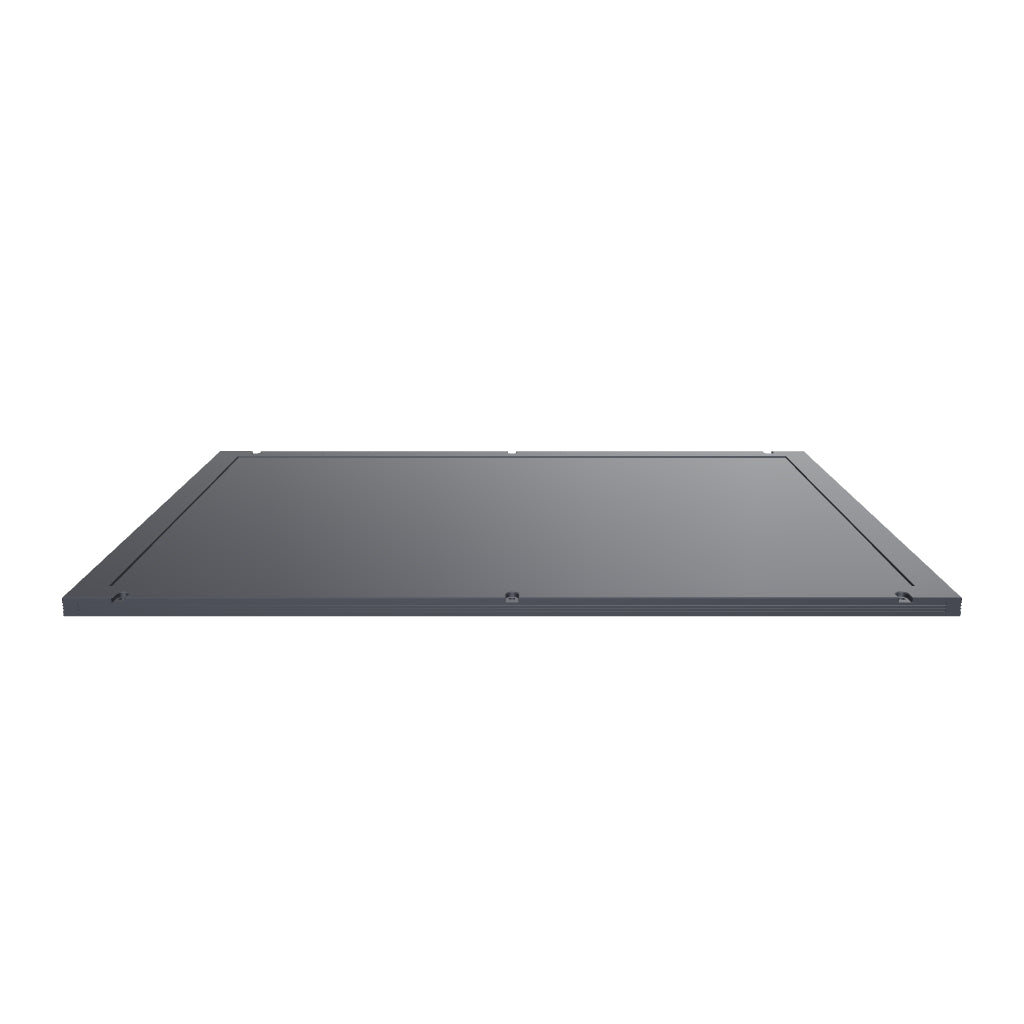

  • LS-BKL-1121 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

400 x 300 mm Edge-Lit LED Backlight (LS-BKL-1121)

Model LS-BKL-1121

  • ColourRed, Green, Blue, White
  • Emitting area400x300 mm
  • Size435x335x9.5 mm
  • Voltage24 V
  • Power28 W
$1,169.00

Ships in 2-3 weeks

1.7 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

400 x 300 mm Edge-Lit LED Backlight (LS-BKL-1121)LS-BKL-1121

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

400 x 300 mm Edge-Lit LED Backlight. Edge-lit (side-lit) backlight: LEDs at the edge feed a light-guide plate, giving a 9.5 mm thin panel with uniform large-area illumination that highlights workpiece contours.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1121
Construction (setup diagram)LED / housing / light-guide plate

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)400x300
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)18
Power W/B/G (W)28

Mechanical

Outer size L x W x H (mm)435x335x9.5
Thickness (mm)9.5
MountingX-Φ3.2 through holes (installation); 4-6 depth 3
Shipping weight (estimated)1.70 kg

Mounting and drawing data

drawing table (X = qty of 3.2 mm through mounting holes): X=6, C=380, D=324

LS-BKL-1121

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-1121 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm)
435x335x9.5
Emitting area (mm)
400x300
Voltage (V)
24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
