Light controllers power and dim your LED lights and sync them to the camera trigger. Analog controllers use a knob; digital controllers add per-channel brightness settings, strobe and serial control from the PC or PLC.

Shop by channels: 1-channel light controllers · 2-channel light controllers · 4-channel light controllers · 8-channel light controllers

573 models Configure a systemAll light controllers
Light controllers

481-504 of 573 models

Products

Compare
LS-CTL-0142APC analog power supply controller, 4 ch 40-24 VAC100-240V 50/60Hz2.5AStepless knob$229.00 Ships in 2-3 weeks

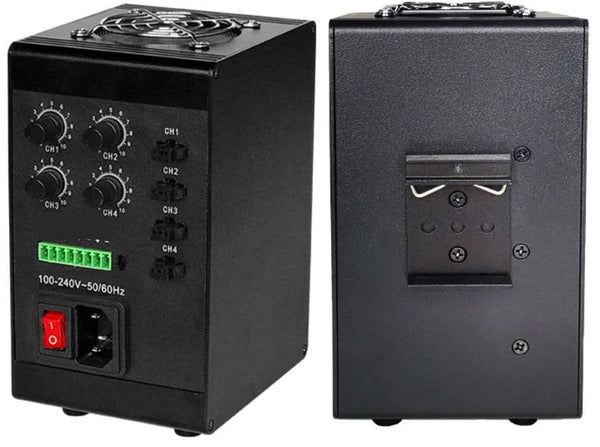

LS-CTL-0103Standard analog controller (LS-CTL-S19 series, ordinary type), 4 ch, 20 W, output voltage 5 V 45VAC220V20 WAnalog$299.00 Ships in 2-3 weeks
LS-CTL-0110Two / four channel standard analog controller, 4 ch, 120 W 4DC14V~24V100-220VAC120 W-$349.00 Ships in 2-3 weeks
LS-CTL-0104Standard analog controller (LS-CTL-S19 series, ordinary type), 4 ch, 20 W, output voltage 12 V 412VAC220V20 WAnalog$299.00 Ships in 2-3 weeks
LS-CTL-0140APC analog power supply controller, 1 ch 10-24 VAC100-240V 50/60Hz1AStepless knob$139.00 Ships in 2-3 weeks
LS-CTL-0107Two / four channel standard analog controller, 2 ch, 60 W 2DC14V~24V100-220VAC60 W-$249.00 Ships in 2-3 weeks

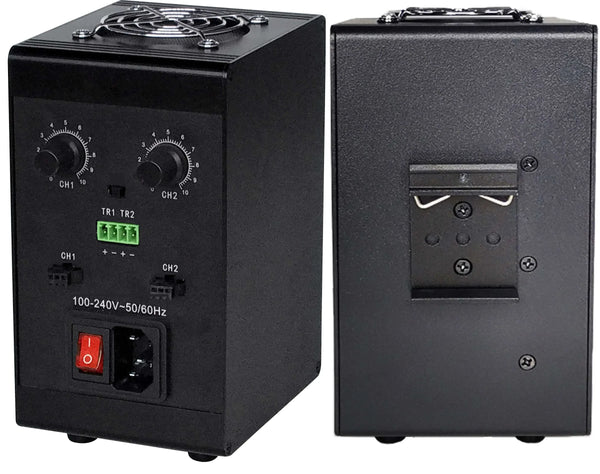

LS-CTL-0100Standard analog controller (LS-CTL-S19 series, ordinary type), 2 ch, 6 W 25VAC220V6 WAnalog$219.00 Ships in 2-3 weeks
LS-CTL-0108Two / four channel standard analog controller, 2 ch, 120 W 2DC14V~24V100-220VAC120 W-$289.00 Ships in 2-3 weeks
LS-CTL-0082Brighten strobe controller, 4 ch, 200 W 448VAC 100-240V200WRS232 serial port$1,089.00 Ships in 2-3 weeks
LS-CTL-0081Brighten strobe controller, 2 ch, 200 W 248VAC 100-240V200WRS232 serial port$1,089.00 Ships in 2-3 weeks
LS-CTL-0105Standard analog controller (LS-CTL-S19 series, ordinary type), 2 ch, 24 W 224VAC220V24 WAnalog$229.00 Ships in 2-3 weeks
LS-CTL-0080Brighten strobe controller, 2 ch, 60 W 248VAC 100-240V60WRS232 serial port$689.00 Ships in 2-3 weeks
LS-CTL-0102Standard analog controller (LS-CTL-S19 series, ordinary type), 2 ch, 10 W, output voltage 24 V 224VAC220V10 WAnalog$219.00 Ships in 2-3 weeks
LS-CTL-0101Standard analog controller (LS-CTL-S19 series, ordinary type), 2 ch, 10 W, output voltage 12 V 212VAC220V10 WAnalog$219.00 Ships in 2-3 weeks
LS-CTL-0033Alternate strobe controller, 2 ch, 200 W 224VAC 100-240V200WRS232 serial port$279.00 Ships in 2-3 weeks
LS-CTL-0065Digital control box, 4 ch, 80 W 424VDC 24V3.34ARS232$469.00 Ships in 2-3 weeks
LS-CTL-0034Alternate strobe controller, 4 ch, 200 W 424VAC 100-240V200WRS232 serial port$329.00 Ships in 2-3 weeks
LS-CTL-0030Digital controller, 8 ch, 200 W, 60 W 80-24VAC 100-240V200WRS232$719.00 Ships in 2-3 weeks
LS-CTL-0032Digital controller, 2 ch, 600 W 20-48VAC 170-264V600WRS232$939.00 Ships in 2-3 weeks
LS-CTL-0026Digital controller, 4 ch, 75 W 40-24V-75WRS232$479.00 Ships in 2-3 weeks
LS-CTL-0028Digital controller, 8 ch, 120 W, 60 W 80-24VAC 100-240V120WRS232$679.00 Ships in 2-3 weeks
LS-CTL-0031Digital controller, 2 ch, 400 W 20-24VAC 200-240V400WRS232$799.00 Ships in 2-3 weeks
LS-CTL-0029Digital controller, 4 ch, 200 W, 60 W 40-24VAC 100-240V200WRS232$549.00 Ships in 2-3 weeks
LS-CTL-0027Digital controller, 8 ch, 75 W 80-24VAC 100-240V75WRS232$649.00 Ships in 2-3 weeks

How to choose a machine vision light controller

1. Channels

One channel drives one light at its own brightness. Count the lights that must be set or switched separately: a ring plus a backlight need two channels; a multi-angle setup that takes several images in sequence needs one channel per angle. 2-channel, 4-channel and 8-channel controllers cover most stations.

2. Power per channel

Add up the power of the lights on each channel and keep a margin: a controller rated for less current than the light draws runs it dim or shuts down. High-power line and spot lights may need a high-power controller.

3. Constant, strobe or overdrive

Constant light suits slow or stationary parts. Strobing flashes the light only during the exposure, from the camera or sensor trigger: it freezes moving parts, keeps the LEDs cool and lets the controller drive short pulses above the continuous rating (overdrive) for more light. Check the trigger input, the shortest pulse and the delay between trigger and flash.

4. How it is set

Manual knobs suit fixed setups; RS-232 or Ethernet control lets the vision software change brightness per inspection step and store recipes. Analog dimming takes a 0-10 V signal from a PLC.

5. Voltage and connectors

Match the output voltage to the lights (24 V DC for almost every light here) and check the connector, or plan an adapter cable. Lights and controllers from the same range plug together directly.
