C-mount machine vision lenses

Choose the lens beyond its mount

Choose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.

All Machine vision lenses

1330 models Configure a systemAll lenses
C-mount machine vision lenses

25-48 of 1330 models

Products

Compare
LS-FFL-146475 mm macro lens, 1.1", F2.6, C-mount 75 mm2.52x to 0.059xC-mount1.1"0.3 m to ∞F2.6$560.00 Ships in 3-4 weeks

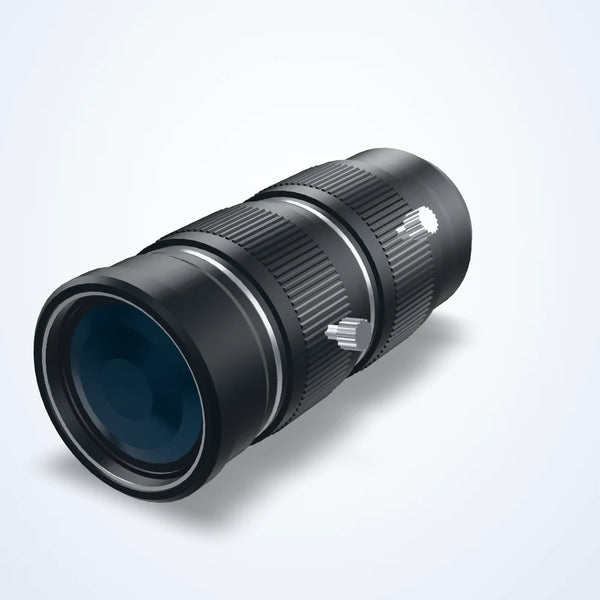

LS-FFL-146575 mm macro lens, 1.1", F3.8, C-mount 75 mm0.38X~0.18XC-mount1.1"-F3.8$222.00 Ships in 3-4 weeks

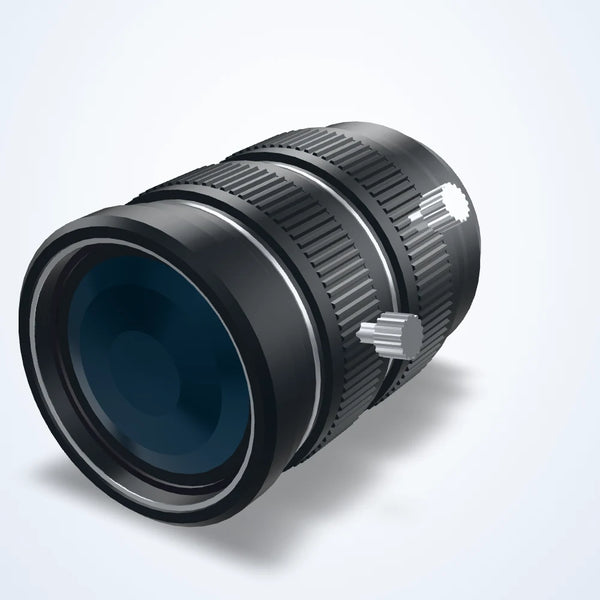

LS-FFL-146016 mm macro lens, 1.1", F2.8, C-mount 16 mm0.25X~0.03XC-mount1.1"-F2.8$222.00 Ships in 3-4 weeks

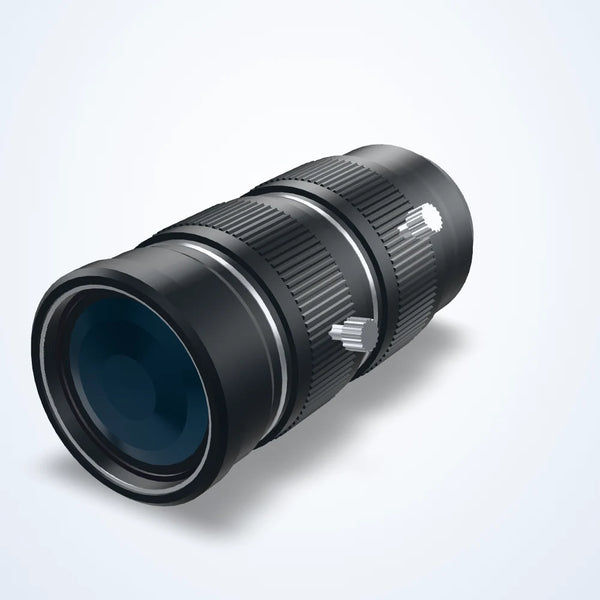

LS-FFL-146350 mm macro lens, 1.1", F2.8, C-mount 50 mm0.8X~0.5XC-mount1.1"-F2.8$202.00 Ships in 3-4 weeks
LS-FFL-146235 mm macro lens, 1.1", F2.8, C-mount 35 mm0.7X, 0.5X, 0.25XC-mount1.1"59, 78, 150 mmF2.8$202.00 Ships in 3-4 weeks

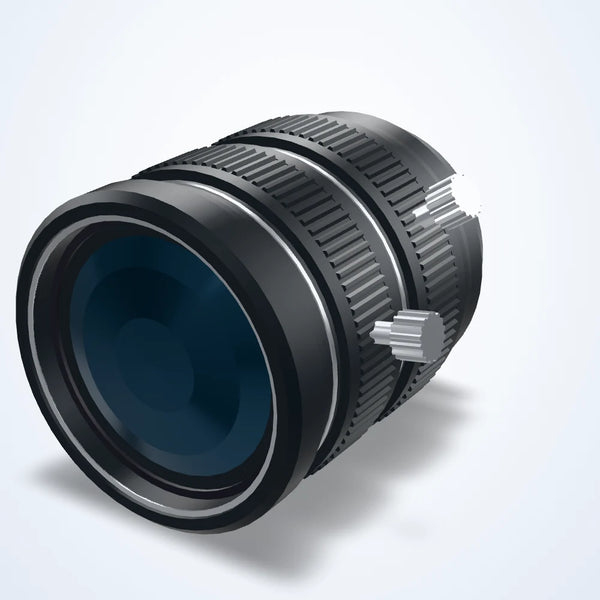

LS-FFL-146125 mm macro lens, 1.1", F2.8, C-mount 25 mm0.4X~0.1XC-mount1.1"-F2.8$202.00 Ships in 3-4 weeks

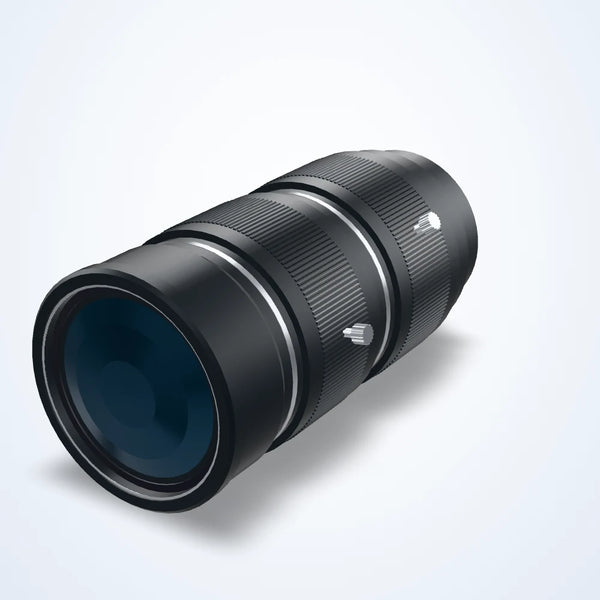

LS-FFL-138425 mm IR-corrected lens, 4/3", 8 MP, F1.6, C-mount 25 mm-C-mount4/3"-F1.6$590.00 Ships in 3-4 weeks

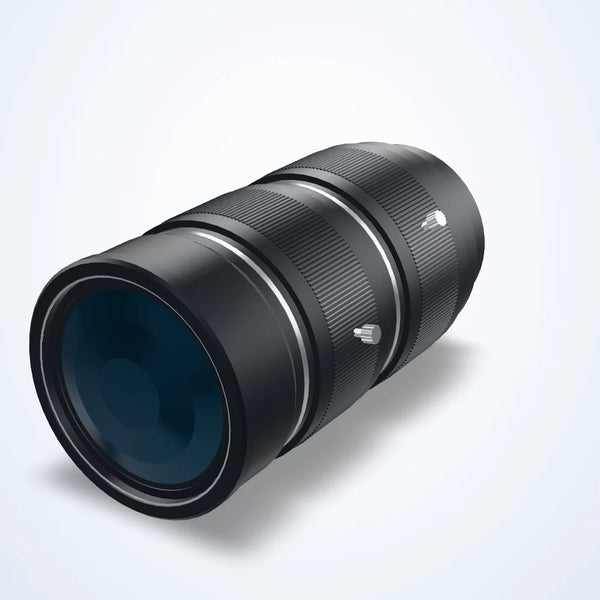

LS-FFL-138325 mm IR-corrected lens, 4/3", 8 MP, F1.4, C-mount 25 mm-C-mount4/3"-F1.4-32$590.00 Ships in 3-4 weeks

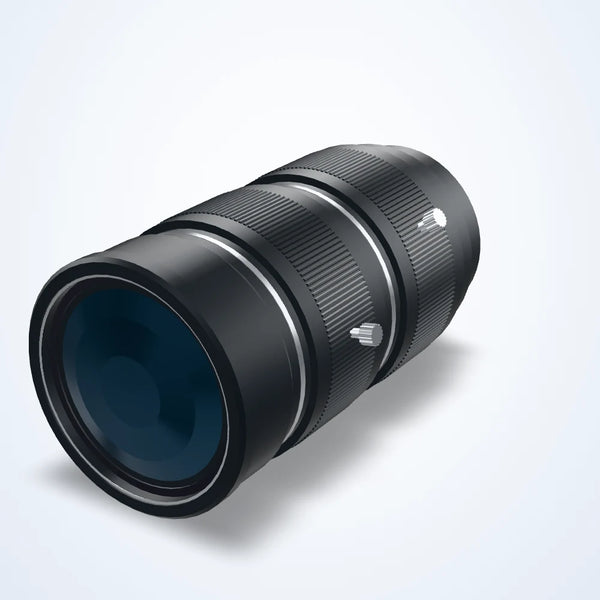

LS-FFL-138216 mm IR-corrected lens, 4/3", 10 MP, F1.6, C-mount 16 mm-C-mount4/3"-F1.6$590.00 Ships in 3-4 weeks

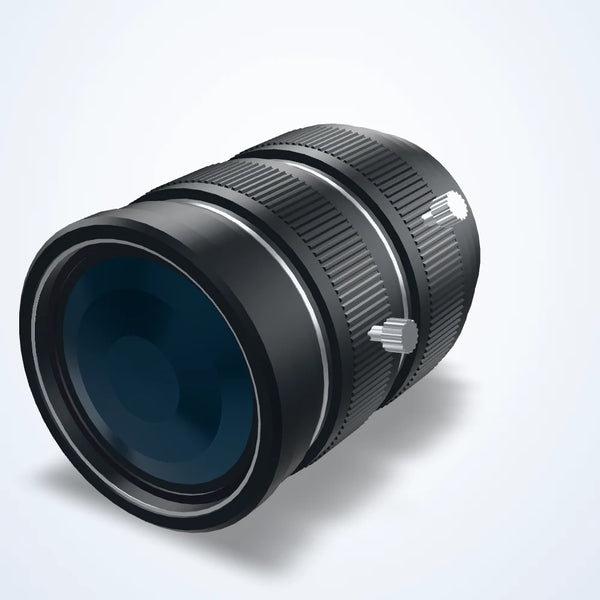

LS-FFL-13818 mm IR-corrected lens, 1/1.2", 3 MP, F1.5, C-mount 8 mm-C-mount1/1.2"-F1.5$260.00 Ships in 3-4 weeks

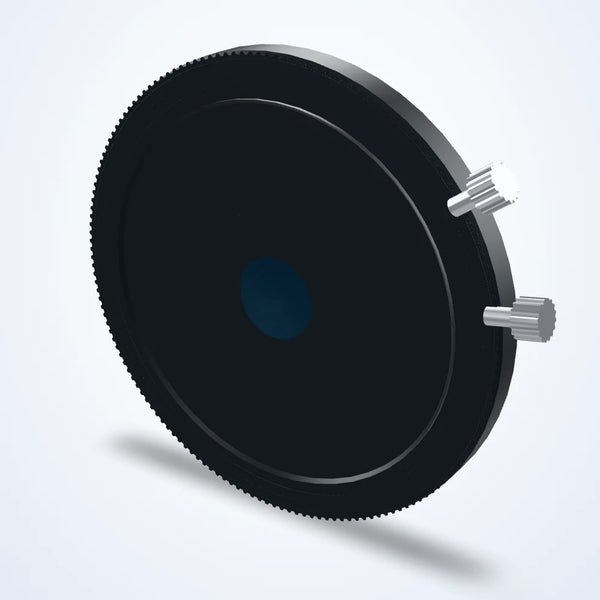

LS-FFL-138050 mm IR-corrected lens, 1.1", 12 MP, F1.5, C-mount 50 mm-C-mount1.1"-F1.5$590.00 Ships in 3-4 weeks
LS-FFL-137950 mm IR-corrected lens, 1.1", 12 MP, F1.4, C-mount 50 mm-C-mount1.1"-F1.4$590.00 Ships in 3-4 weeks
LS-FFL-137835 mm IR-corrected lens, 1.1", 12 MP, F1.4, C-mount 35 mm-C-mount1.1"-F1.4$590.00 Ships in 3-4 weeks

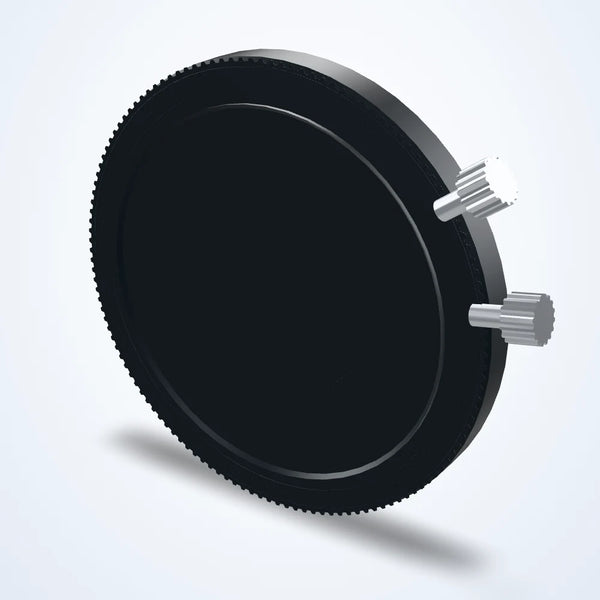

LS-FFL-137725 mm IR-corrected lens, 1.1", 12 MP, F1.4, C-mount 25 mm-C-mount1.1"-F1.4$590.00 Ships in 3-4 weeks

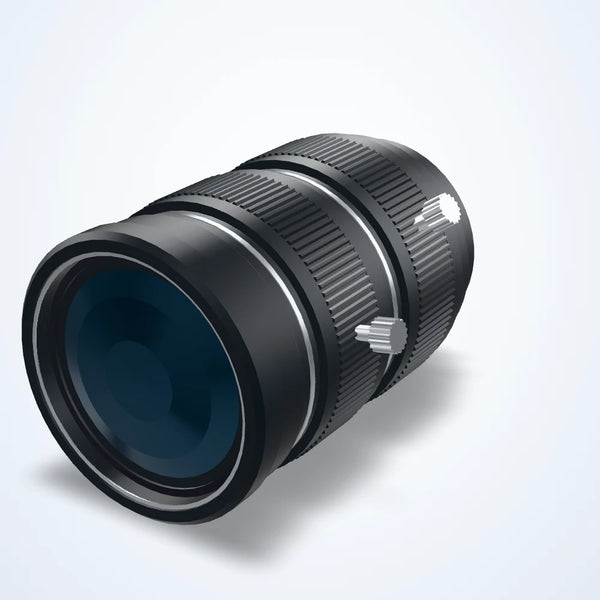

LS-FFL-137435 mm IR-corrected lens, 1", 5 MP, F2.0, C-mount 35 mm-C-mount1"-F2.0$510.00 Ships in 3-4 weeks

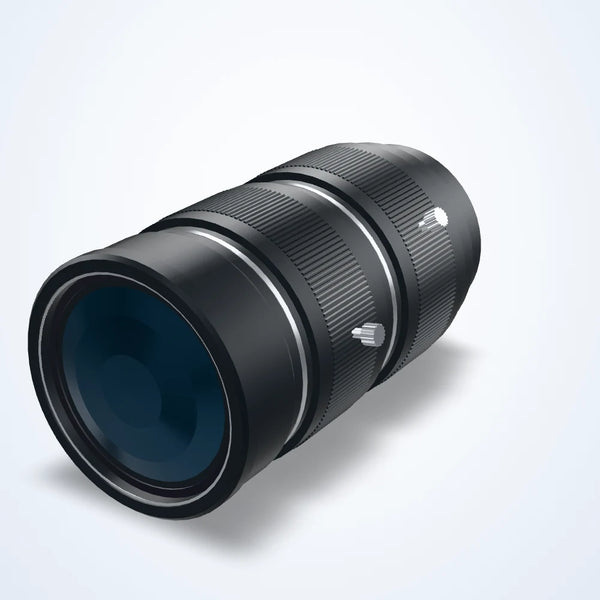

LS-FFL-137535 mm IR-corrected lens, 1", 10 MP, F1.2, C-mount 35 mm-C-mount1"-F1.2$510.00 Ships in 3-4 weeks
LS-FFL-137325 mm IR-corrected lens, 1", 10 MP, F1.8, C-mount 25 mm-C-mount1"-F1.8$510.00 Ships in 3-4 weeks

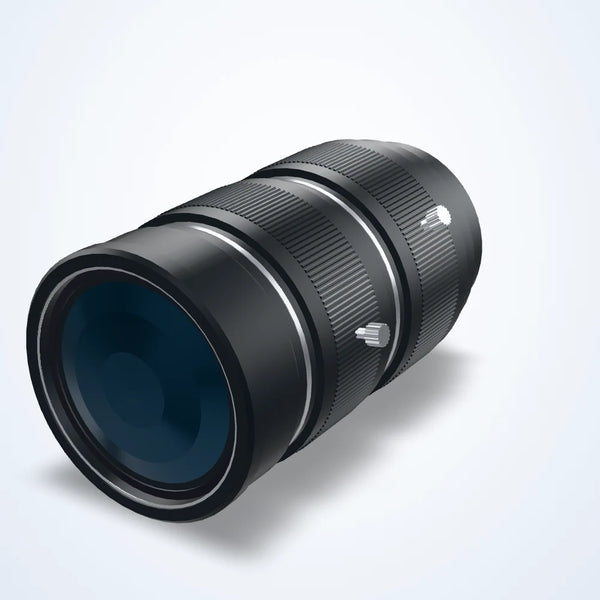

LS-FFL-137225 mm IR-corrected lens, 1", 10 MP, F1.2, C-mount 25 mm-C-mount1"-F1.2$510.00 Ships in 3-4 weeks

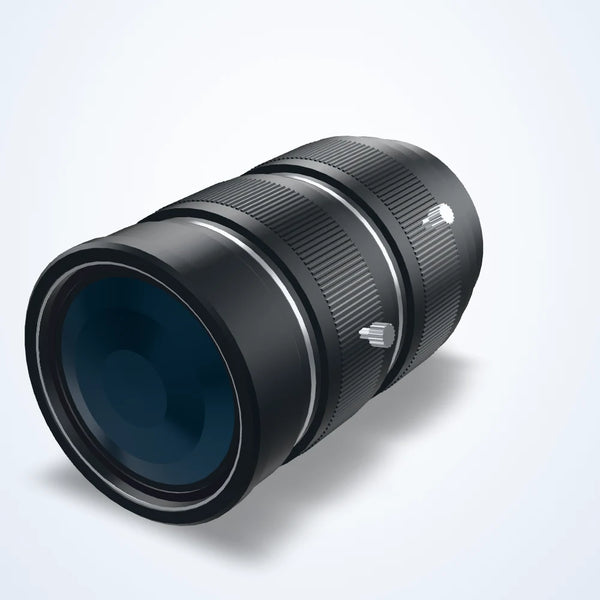

LS-FFL-137120 mm IR-corrected lens, 1", 10 MP, F1.2, C-mount 20 mm-C-mount1"-F1.2$510.00 Ships in 3-4 weeks
LS-FFL-137016 mm IR-corrected lens, 1", 10 MP, F1.6, C-mount 16 mm-C-mount1"-F1.6$510.00 Ships in 3-4 weeks

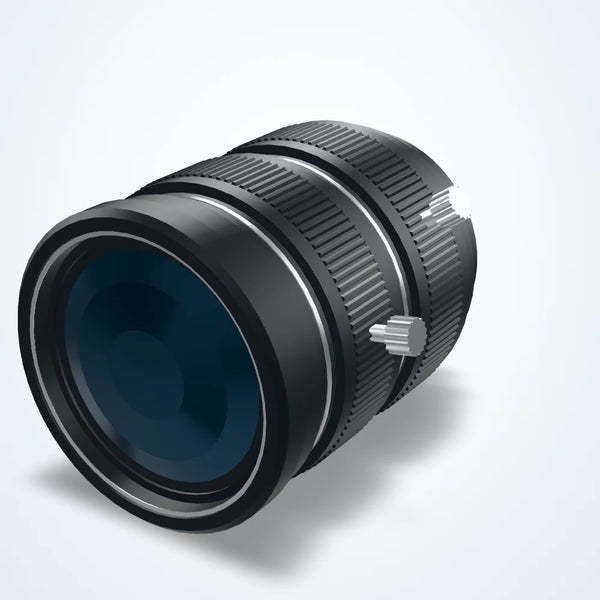

LS-FFL-137650 mm IR-corrected lens, 1", 5 MP, F2.8, C-mount 50 mm-C-mount1"-F2.8$440.00 Ships in 3-4 weeks
LS-FFL-134685 mm fixed focal length lens, 4/3", 10 MP, F2.0, C-mount 85 mm-C-mount4/3"-F2.0$450.00 Ships in 3-4 weeks
LS-FFL-13408.5 mm fixed focal length lens, 4/3", 12 MP, F2.8, C-mount 8.5 mm-C-mount4/3"-F2.8$418.00 Ships in 3-4 weeks

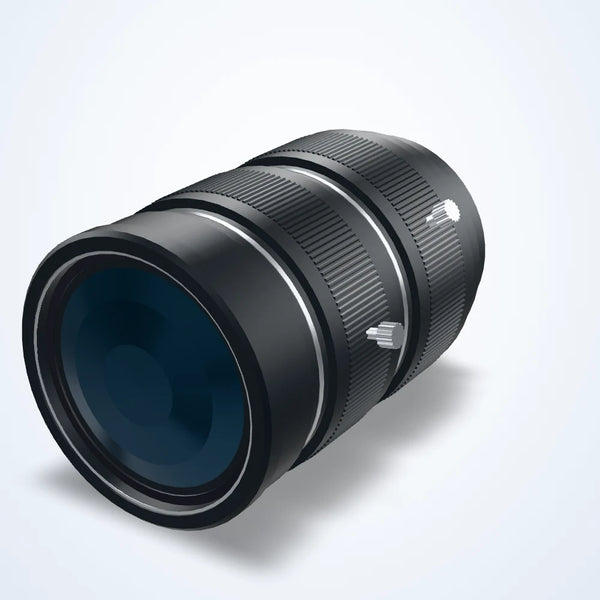

LS-FFL-134550 mm fixed focal length lens, 4/3", 10 MP, F2.0, C-mount 50 mm-C-mount4/3"-F2.0$330.00 Ships in 3-4 weeks

Choose the lens beyond its mount

A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.

  • Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
  • Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
  • Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
