Machine vision lenses

50 mm IR-corrected lens, 1", 5 MP, F2.8, C-mount (LS-FFL-1376)

Model LS-FFL-1376

Focal length50 mm
MountC-mount
Sensor1"
ApertureF2.8
Resolution5 MP

$440.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

50 mm IR-corrected lens for machine-vision cameras. Focal length 50 mm; covers sensors up to 1"; resolves 5 MP; aperture F2.8; corrected for 400-1000 nm; C-mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1376
FOV DHV	18.4°x14.62°x11°
IR Correction	Yes

Optics

Focal length	50 mm
Aperture	F2.8
Distortion	<0.26%
Focus	Manual
Filter thread	M30.5X0.5

Sensor and imaging

Sensor format	1"
Resolution	5 MP

Light

Wavelength range	400-1000 nm

Environment and compliance

Operating temperature	-20- 65°C(Working)

Mechanical

Mount	C-mount

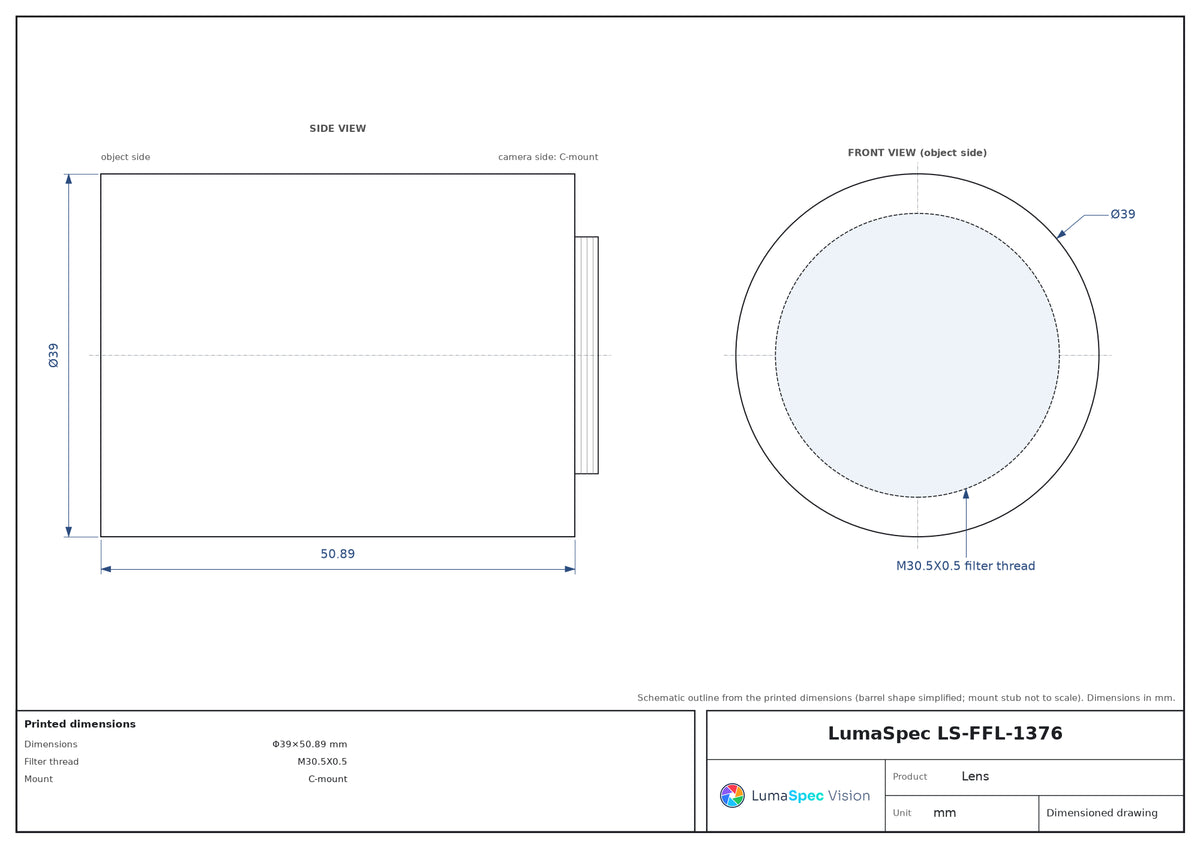

Dimensions	Φ39×50.89 mm
Shipping weight	1.00 kg
