Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

20 mm IR-corrected lens, 1", 10 MP, F1.2, C-mount (LS-FFL-1371)

Model LS-FFL-1371

Focal length20 mm
MountC-mount
Sensor1"
ApertureF1.2
Resolution10 MP

$510.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

20 mm IR-corrected lens for machine-vision cameras. Focal length 20 mm; covers sensors up to 1"; resolves 10 MP; aperture F1.2; corrected for 400-1000 nm; C-mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1371
FOV DHV	45.4°x 33.18°x 26.2°
IR Correction	Yes

Optics

Focal length	20 mm
Aperture	F1.2
Distortion	<-4.0%
Focus	Manual
Filter thread	M43X0.75

Sensor and imaging

Sensor format	1"
Resolution	10 MP

Light

Wavelength range	400-1000 nm

Environment and compliance

Operating temperature	-20- 65°C(Working)

Mechanical

Mount	C-mount

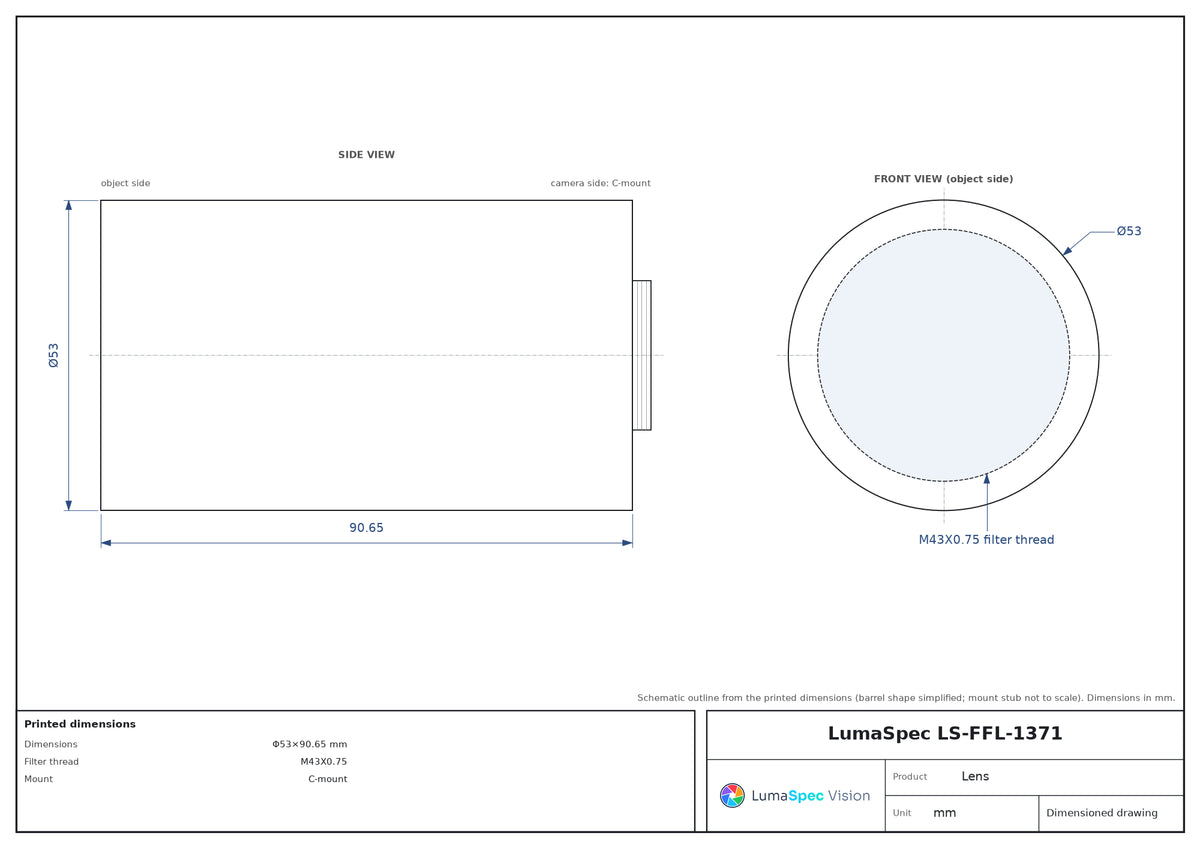

Dimensions	Φ53×90.65 mm
Shipping weight	1.00 kg

Other models in the 1" IR-corrected lenses (LS-FFL-S118) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-FFL-1376	50 mm, 1", C-mount	$440.00	Ships in 3-4 weeks	View
LS-FFL-1370	16 mm, 1", C-mount	$510.00	Ships in 3-4 weeks	View
LS-FFL-1372	25 mm, 1", C-mount	$510.00	Ships in 3-4 weeks	View
LS-FFL-1373	25 mm, 1", C-mount	$510.00	Ships in 3-4 weeks	View
LS-FFL-1375	35 mm, 1", C-mount	$510.00	Ships in 3-4 weeks	View
LS-FFL-1374	35 mm, 1", C-mount	$510.00	Ships in 3-4 weeks	View
