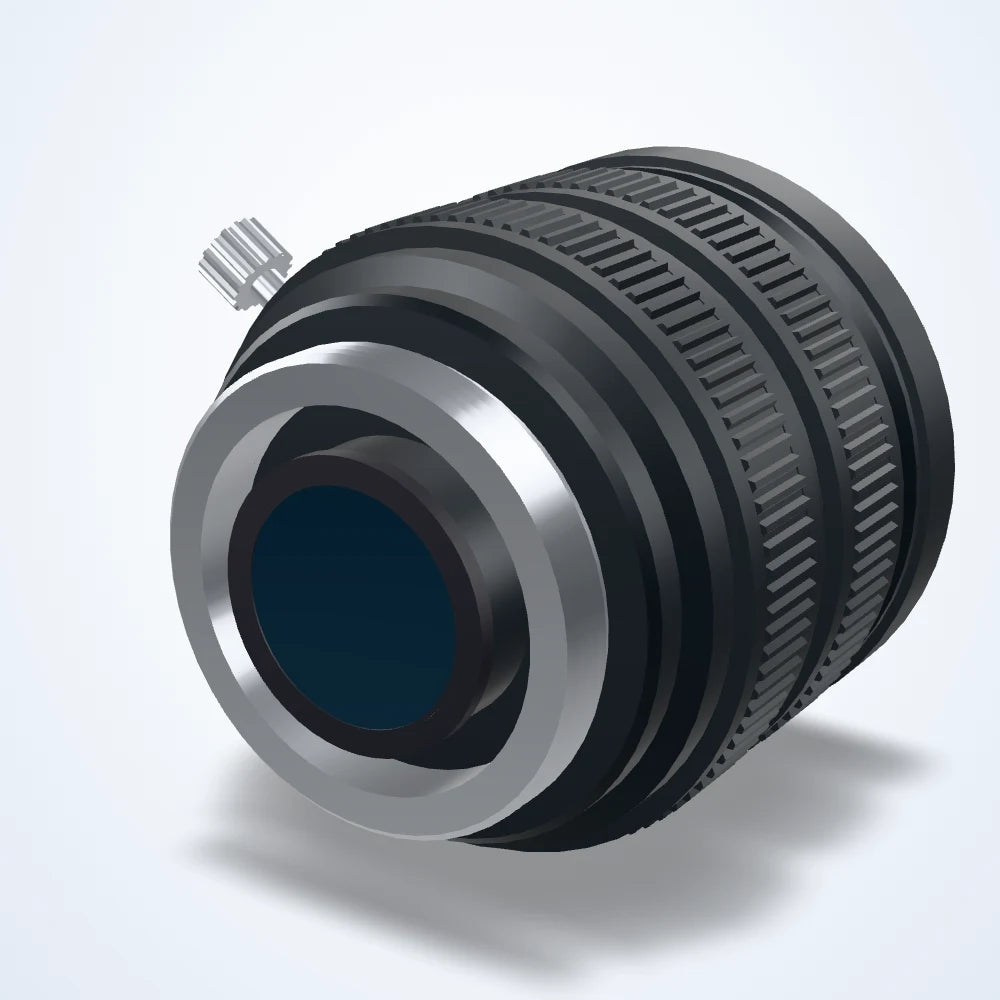

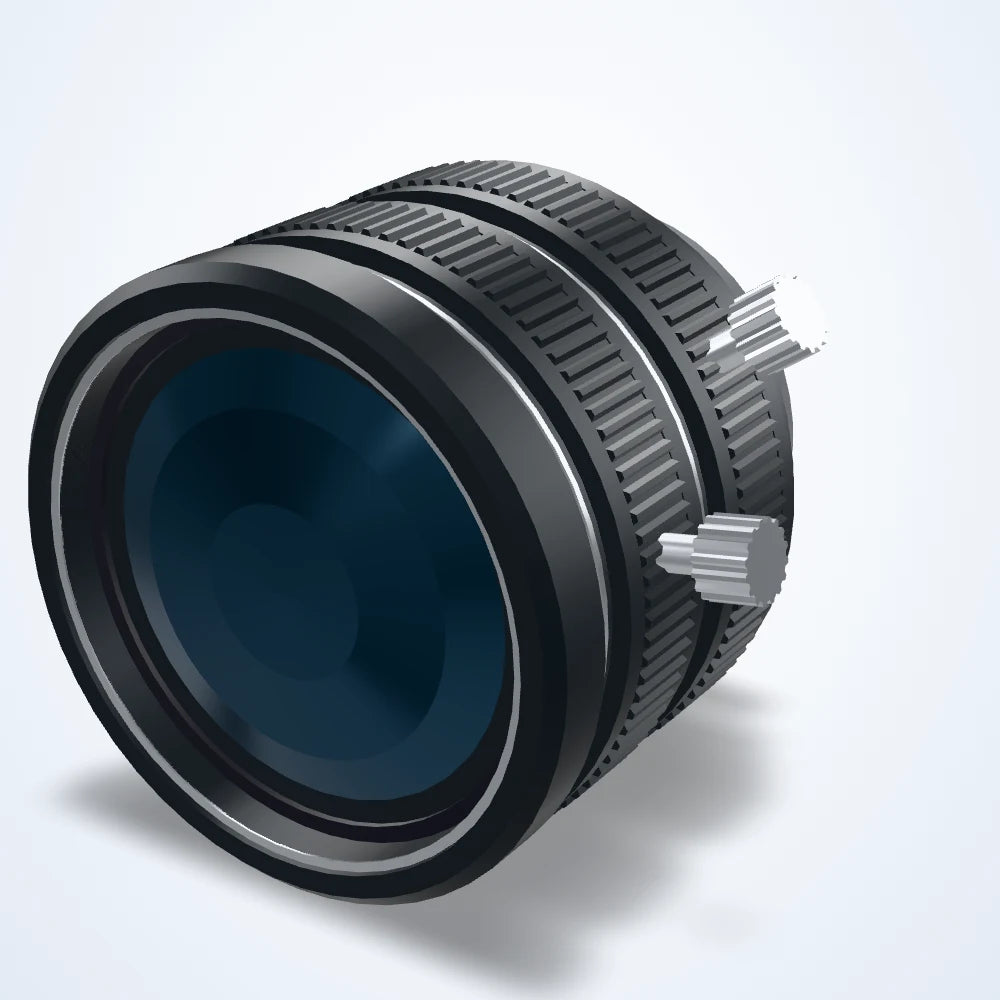

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm macro lens, 1.1", F2.8, C-mount (LS-FFL-1461)
Model LS-FFL-1461
- Focal length25 mm
- Magnification-0.4X~-0.1X
- MountC-mount
- Sensor1.1"
- Aperture2.8
- Resolution12 Mega Pixels
$202.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm macro lens for machine-vision cameras. Focal length 25 mm; covers sensors up to 1.1"; aperture F2.8; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1461 |
|---|---|
| Min. object distance | 65-260.4 mm |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | 2.8 |
| Magnification | -0.4X~-0.1X |
| Distortion | ﹤0.07% |
| Focus | Manual |
| Filter thread | M27×P0.5 mm |
Sensor and imaging
| Sensor format | 1.1” |
|---|---|
| Resolution | 12 Mega Pixels |
Mechanical
| Mount | C |
|---|---|
| Flange back length | 17.526 mm |
| Dimensions | φ32×(35.7-43.9) |
| Shipping weight | 1.00 kg |
Other models in the 1.1" macro lenses (LS-FFL-S133) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1462 | 35 mm, 1.1", C-mount | $202.00 | Ships in 3-4 weeks | View |
| LS-FFL-1463 | 50 mm, 1.1", C-mount | $202.00 | Ships in 3-4 weeks | View |
| LS-FFL-1460 | 16 mm, 1.1", C-mount | $222.00 | Ships in 3-4 weeks | View |
| LS-FFL-1465 | 75 mm, 1.1", C-mount | $222.00 | Ships in 3-4 weeks | View |
| LS-FFL-1464 | 75 mm, 1.1", C-mount | $560.00 | Ships in 3-4 weeks | View |
