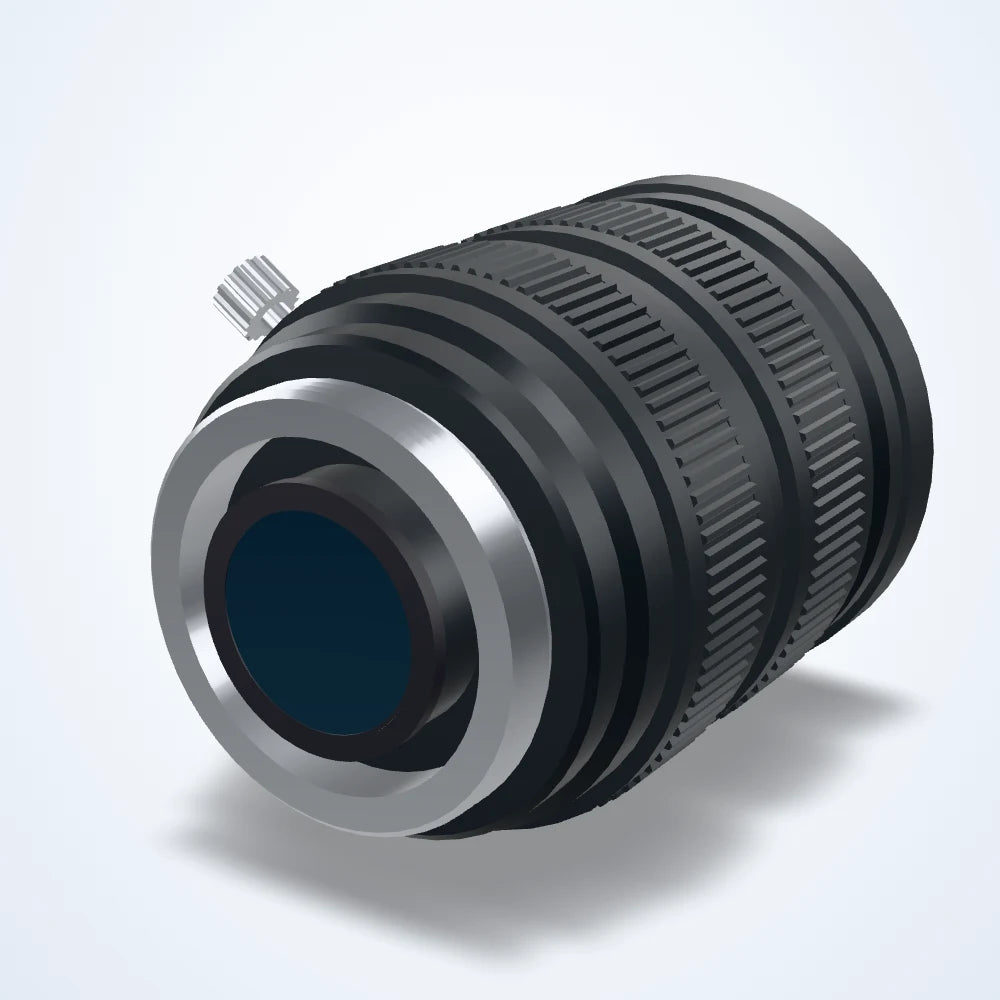

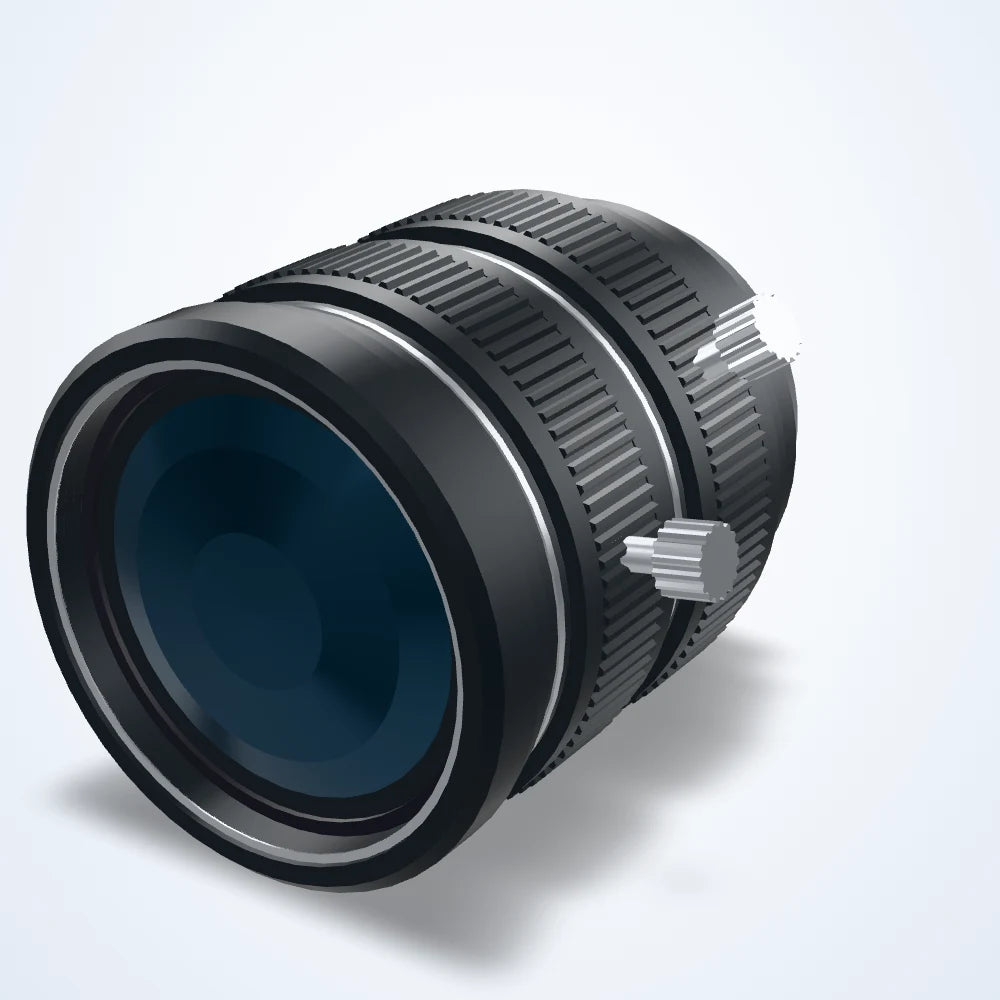

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm IR-corrected lens, 4/3", 8 MP, F1.4, C-mount (LS-FFL-1383)
Model LS-FFL-1383
- Focal length25 mm
- MountC-mount
- Sensor4/3"
- ApertureF1.4-32
- Resolution8 MP
$590.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm IR-corrected lens for machine-vision cameras. Focal length 25 mm; covers sensors up to 4/3"; resolves 8 MP; aperture F1.4; corrected for 400-950 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1383 |
|---|---|
| FOV D*H*V | 48.15°x 39.74°x 30.02° |
| IR Correction | Yes |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F1.4-32 |
| Distortion | <-3.5% |
| Focus | Manual |
| Filter thread | M58X0.75 |
Sensor and imaging
| Sensor format | 4/3" |
|---|---|
| Resolution | 8 MP |
Light
| Wavelength range | 400-950 nm |
|---|
Environment and compliance
| Operating temperature | -20°C~+65°C(Working) |
|---|

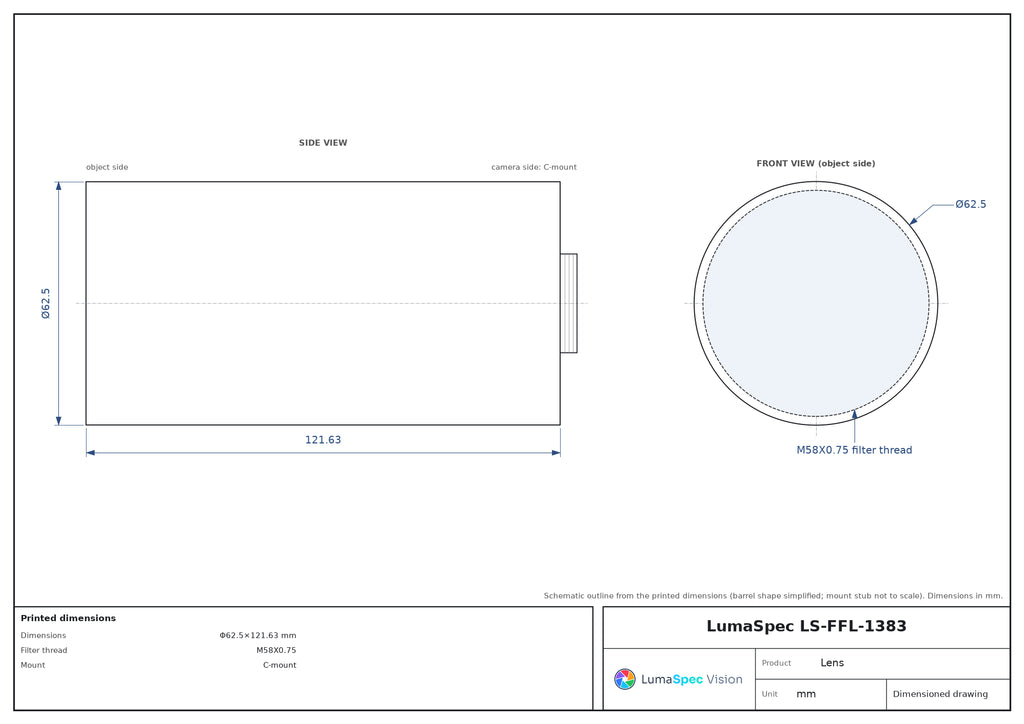

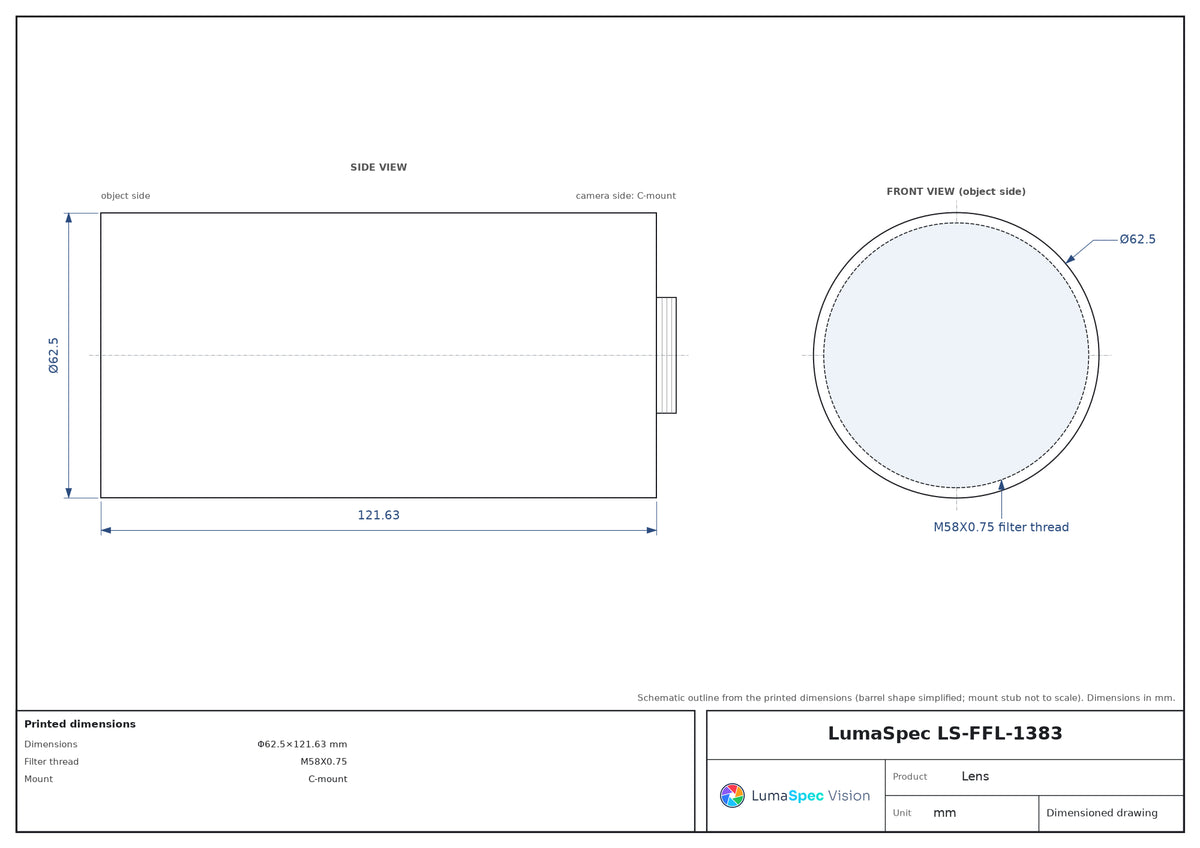

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | Φ62.5×121.63 mm |
| Shipping weight | 1.00 kg |
Other models in the 4/3" IR-corrected lenses (LS-FFL-S121) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1382 | 16 mm, 4/3", C-mount | $590.00 | Ships in 3-4 weeks | View |
| LS-FFL-1384 | 25 mm, 4/3", C-mount | $590.00 | Ships in 3-4 weeks | View |
