Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8.5 mm fixed focal length lens, 4/3", 12 MP, F2.8, C-mount (LS-FFL-1340)
Model LS-FFL-1340
- Focal length8.5 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.8
- Resolution12MP
$418.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8.5 mm fixed focal length lens for machine-vision cameras. Focal length 8.5 mm; covers sensors up to 4/3"; resolves 12 MP; aperture F2.8; corrected for 400-700 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1340 |
|---|---|
| Min. object distance | 0.5 m |
| Angle of view | D:107.4° H:94.9° V:77.9° |
Optics
| Focal length | 8.5 mm |
|---|---|
| Aperture | F2.8 |
| Back focal length | 18.87 mm |
| Distortion | -4.54%@y=11.5 mm |
| Focus | Manual |
Sensor and imaging
| Sensor format | 4/3" |
|---|---|
| Resolution | 12MP |
Light
| Wavelength range | 400-700 nm |
|---|
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|

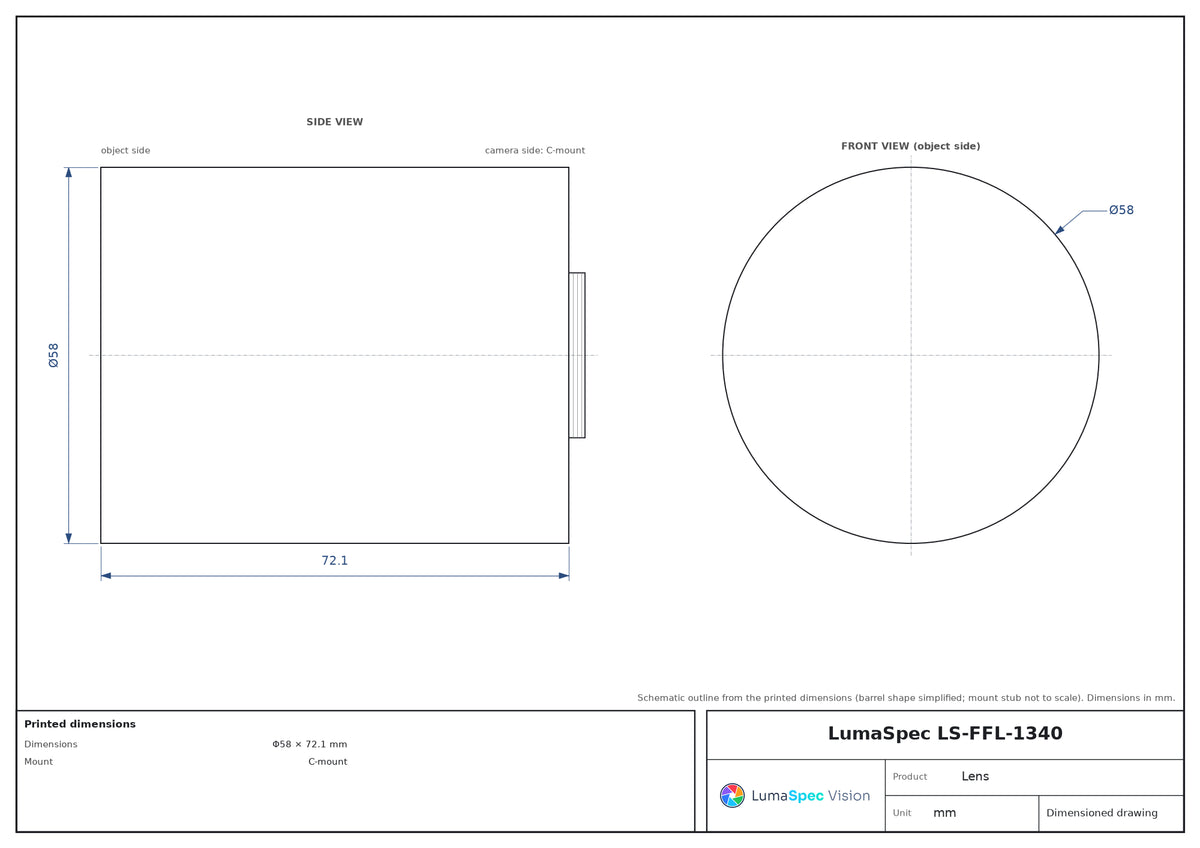

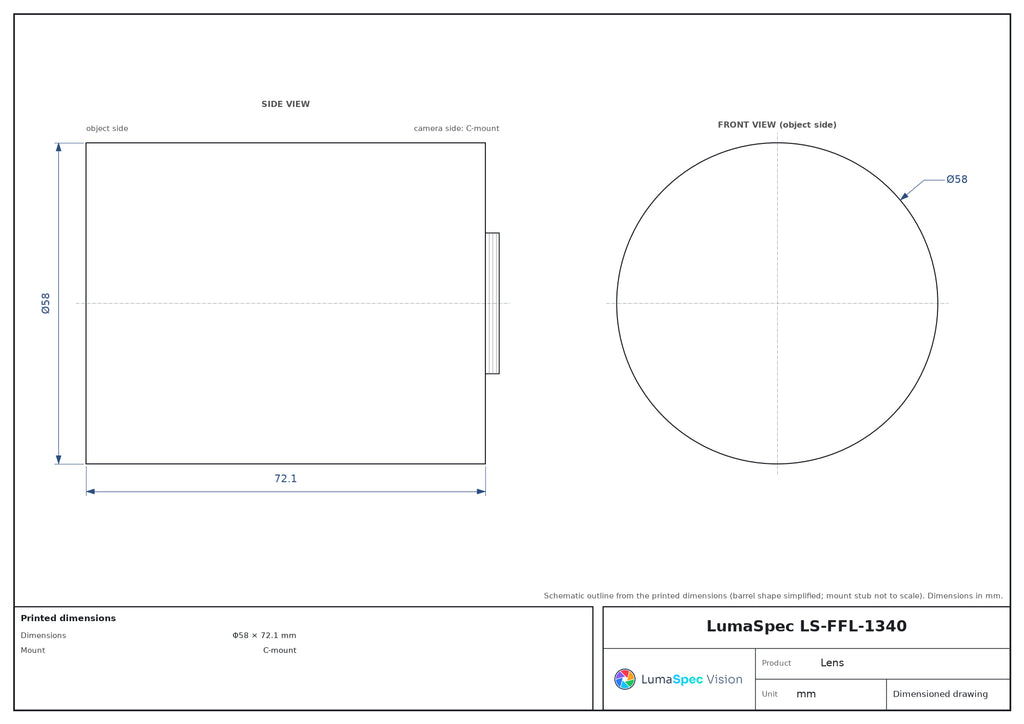

Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimensions | Φ58 × 72.1 mm |
| Shipping weight | 0.50 kg |
Other models in the 4/3" fixed focal length lenses (LS-FFL-S113) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1341 | 12 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1342 | 16 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1343 | 25 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1344 | 35 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1345 | 50 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1346 | 85 mm, 4/3", C-mount | $450.00 | Ships in 3-4 weeks | View |
