Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm fixed focal length lens, 4/3", 10 MP, F2.0, C-mount (LS-FFL-1345)
Model LS-FFL-1345
- Focal length50 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.0
- Resolution10MP
$330.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm fixed focal length lens for machine-vision cameras. Focal length 50 mm; covers sensors up to 4/3"; resolves 10 MP; aperture F2.0; corrected for 400-700 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1345 |
|---|---|
| Min. object distance | 0.3 m |
| Angle of view | D:25.9° H:20.9° V:15.7° |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F2.0 |
| Back focal length | 20.29 mm |
| Distortion | -0.14%@y=11.5 mm |
| Focus | Manual |
| Filter thread | M40.5× 0.5 |
Sensor and imaging
| Sensor format | 4/3" |
|---|---|
| Resolution | 10MP |
Light
| Wavelength range | 400-700 nm |
|---|
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

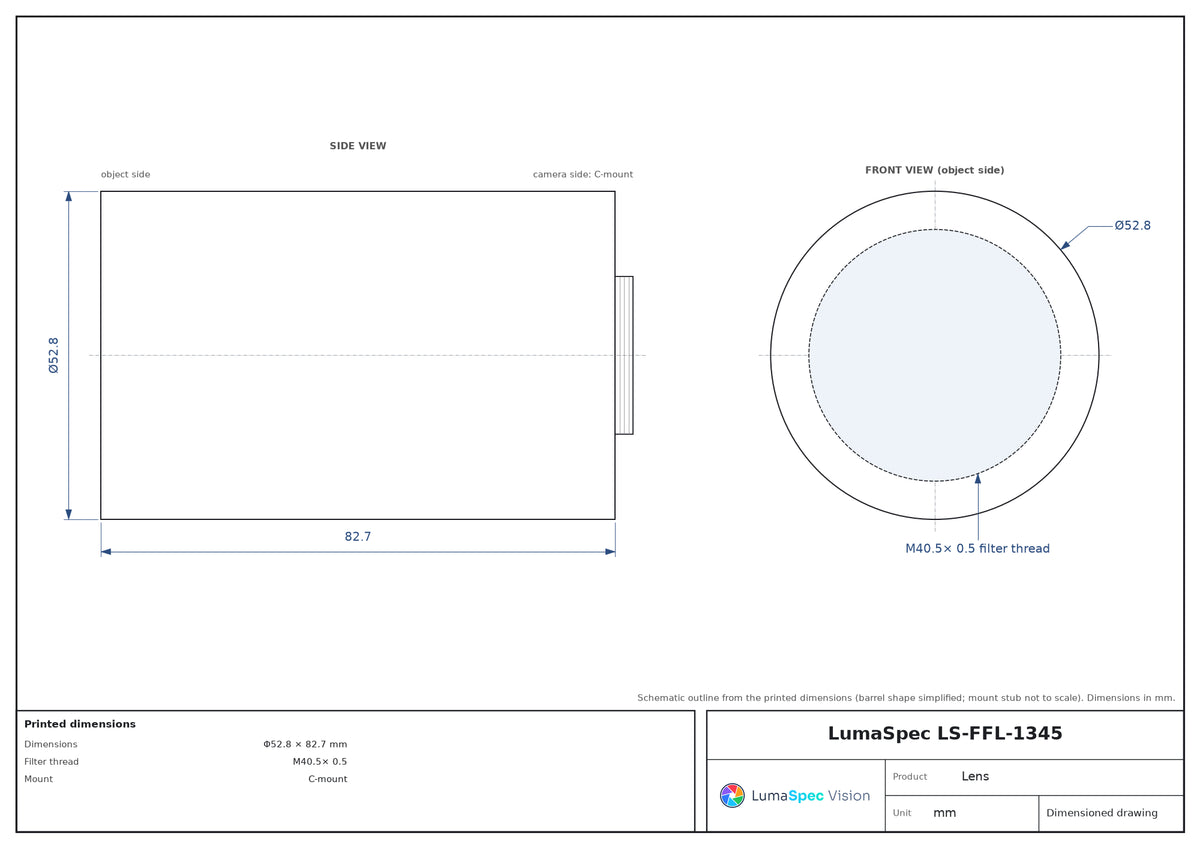

| Dimensions | Φ52.8 × 82.7 mm |
| Weight | 170g |
Other models in the 4/3" fixed focal length lenses (LS-FFL-S113) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1341 | 12 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1342 | 16 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1343 | 25 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1344 | 35 mm, 4/3", C-mount | $330.00 | Ships in 3-4 weeks | View |
| LS-FFL-1340 | 8.5 mm, 4/3", C-mount | $418.00 | Ships in 3-4 weeks | View |
| LS-FFL-1346 | 85 mm, 4/3", C-mount | $450.00 | Ships in 3-4 weeks | View |
