Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

1225-1248 of 1422 models

Products

Compare

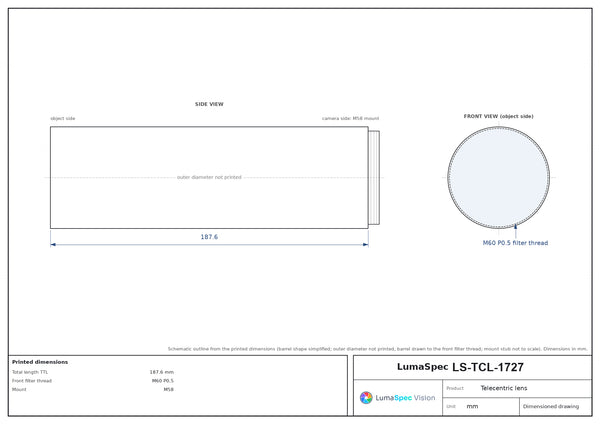

LS-TCL-17270.492x, WD 128 mm, 4/3", M58-mount telecentric lens 0.492xM584/3"128±3 mmF9.3Ø 48 mm$1,909.00 Ships in 2-3 weeks
LS-TCL-16910.5x, WD 138 mm, 4/3" telecentric lens 0.5xC-mount, F-mount, M42, M584/3"138±3 mmF14.1Ø 48 mm$1,909.00 Ships in 2-3 weeks
LS-TCL-16900.5x, WD 128 mm, 4/3", M58-mount telecentric lens 0.5xM584/3"128±3 mmF9.4Ø 48 mm$1,909.00 Ships in 2-3 weeks

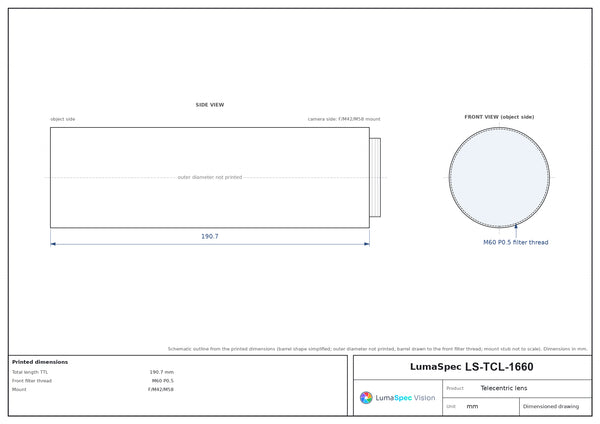

LS-TCL-16600.813x, WD 138 mm telecentric lens 0.813xF-mount, M42, M58APS-H138±3 mmF22.9Ø 48 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-16590.813x, WD 128 mm, M58-mount telecentric lens 0.813xM58APS-H128±3 mmF15.3Ø 48 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-16320.908x, WD 128 mm, M58-mount telecentric lens 0.908xM58Full frame128±3 mmF17.1Ø 48 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-16050.92x, WD 138 mm telecentric lens 0.92xF-mount, M42, M58Full frame138±3 mmF25.9Ø 48 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-16040.92x, WD 128 mm telecentric lens 0.92xF-mount, M42, M58Full frame128±3 mmF17.2Ø 48 mm$1,949.00 Ships in 2-3 weeks

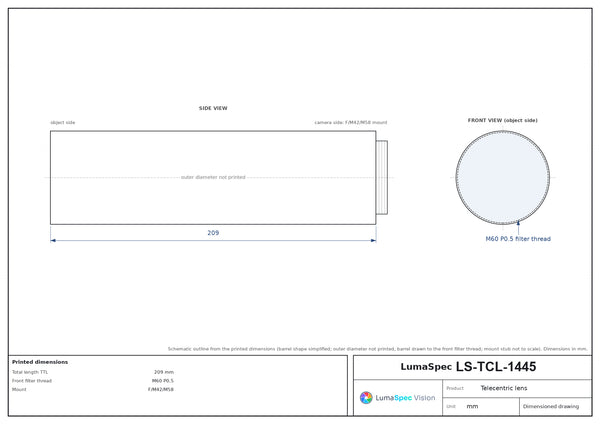

LS-TCL-14450.688x, WD 138 mm, 2" telecentric lens 0.688xF-mount, M42, M582"138±3 mmF19.4Ø 48 mm$1,909.00 Ships in 2-3 weeks
LS-TCL-14440.688x, WD 128 mm, 2", M58-mount telecentric lens 0.688xM582"128±3 mmF12.9Ø 48 mm$1,909.00 Ships in 2-3 weeks
LS-TCL-14120.346x, WD 138 mm, 1", C-mount telecentric lens 0.346xC-mount1"138±3 mmF9.8Ø 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-14110.346x, WD 128 mm, 1", C-mount telecentric lens 0.346xC-mount1"128±3 mmF6.5Ø 48 mm$1,899.00 Ships in 2-3 weeks

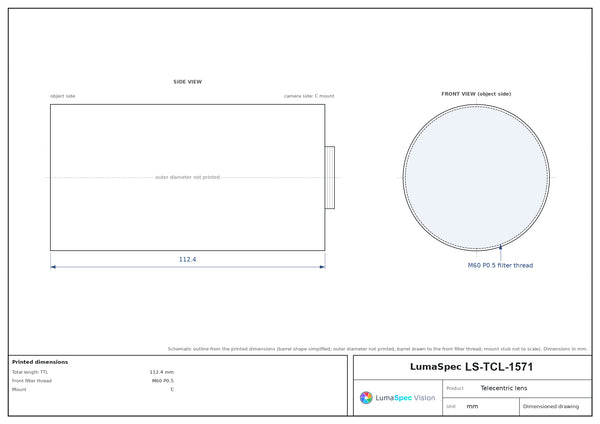

LS-TCL-15710.188x, WD 138 mm, 1/1.8", C-mount telecentric lens 0.188xC-mount1/1.8"138±3 mmF5.3Ø 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-15700.188x, WD 128 mm, 1/1.8", C-mount telecentric lens 0.188xC-mount1/1.8"128±3 mmF4.6Ø 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-18190.604x, WD 138 mm, 1.75" telecentric lens 0.604xF-mount, M42, M581.75"138±3 mmF17.1Ø 48 mm$1,909.00 Ships in 2-3 weeks
LS-TCL-18180.604x, WD 128 mm, 1.75", M58-mount telecentric lens 0.604xM581.75"128±3 mmF11.3Ø 48 mm$1,909.00 Ships in 2-3 weeks

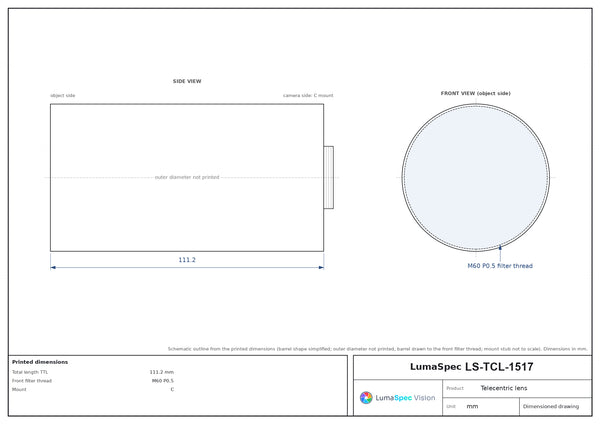

LS-TCL-15170.167x, WD 138 mm, 1/2", C-mount telecentric lens 0.167xC-mount1/2"138±3 mmF4.7Ø 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-15160.167x, WD 128 mm, 1/2", C-mount telecentric lens 0.167xC-mount1/2"128±3 mmF4.2Ø 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-17630.15x, WD 138 mm, 1/2.5", C-mount telecentric lens 0.15xC-mount1/2.5"138±3 mmF4.2Ø 48 mm$2,469.00 Ships in 2-3 weeks
LS-TCL-17620.15x, WD 128 mm, 1/2.5", C-mount telecentric lens 0.15xC-mount1/2.5"128±3 mmF4.2Ø 48 mm$2,469.00 Ships in 2-3 weeks

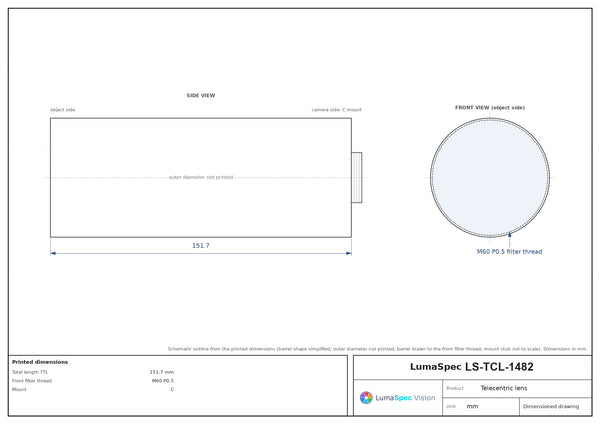

LS-TCL-14820.383x, WD 138 mm, 1.1", C-mount telecentric lens 0.383xC-mount1.1"138±3 mmF10.8Ø 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-14810.383x, WD 128 mm, 1.1", C-mount telecentric lens 0.383xC-mount1.1"128±3 mmF7.2Ø 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-18790.259x, WD 82 mm, 2/3", C-mount fixed-magnification lens 0.259xC-mount2/3"82±1 mmF4.9Ø 44 mm$1,809.00 Ships in 2-3 weeks
LS-TCL-17260.536x, WD 82 mm, 4/3" fixed-magnification lens 0.536xC-mount, F-mount, M42, M584/3"82±1 mmF5.6Ø 44 mm$1,819.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.

Configure a system · Browse all Telecentric lenses
