Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

1201-1224 of 1422 models

Products

Compare
LS-TCL-16070.746x, WD 85 mm telecentric lens 0.746xF-mount, M42, M58Full frame85±1 mmF10.3Ø 59 mm$2,169.00 Ships in 2-3 weeks
LS-TCL-14470.559x, WD 85 mm, 2" telecentric lens 0.559xF-mount, M42, M582"85±1 mmF7.8Ø 59 mm$2,169.00 Ships in 2-3 weeks
LS-TCL-14140.281x, WD 85 mm, 1", C-mount telecentric lens 0.281xC-mount1"85±1 mmF6.5Ø 59 mm$2,159.00 Ships in 2-3 weeks
LS-TCL-15730.153x, WD 85 mm, 1/1.8", C-mount telecentric lens 0.153xC-mount1/1.8"85±1 mmF4.6Ø 59 mm$2,469.00 Ships in 2-3 weeks
LS-TCL-18210.492x, WD 85 mm, 1.75" telecentric lens 0.492xF-mount, M42, M581.75"85±1 mmF6.8Ø 59 mm$2,169.00 Ships in 2-3 weeks
LS-TCL-15451x, WD 85 mm, M72-mount telecentric lens 1xM72Large format85±1 mmF8.7Ø 59 mm$2,199.00 Ships in 2-3 weeks
LS-TCL-15190.136x, WD 85 mm, 1/2", C-mount telecentric lens 0.136xC-mount1/2"85±1 mmF4.2Ø 59 mm$2,159.00 Ships in 2-3 weeks

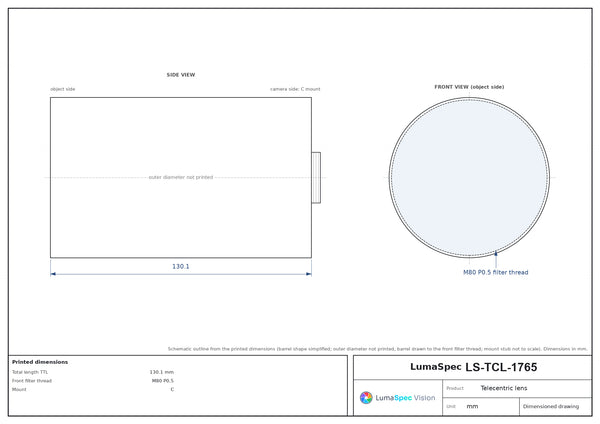

LS-TCL-17650.122x, WD 85 mm, 1/2.5", C-mount telecentric lens 0.122xC-mount1/2.5"85±1 mmF4.2Ø 59 mm$2,699.00 Ships in 2-3 weeks
LS-TCL-14840.312x, WD 85 mm, 1.1", C-mount telecentric lens 0.312xC-mount1.1"85±1 mmF6.2Ø 59 mm$2,159.00 Ships in 2-3 weeks
LS-TCL-18820.204x, WD 138 mm, 2/3", C-mount telecentric lens 0.204xC-mount2/3"138±3 mmF4.9Ø 56 mm$2,089.00 Ships in 2-3 weeks
LS-TCL-17280.421x, WD 138 mm, 4/3", M58-mount telecentric lens 0.421xM584/3"138±3 mmF7.9Ø 56 mm$2,099.00 Ships in 2-3 weeks

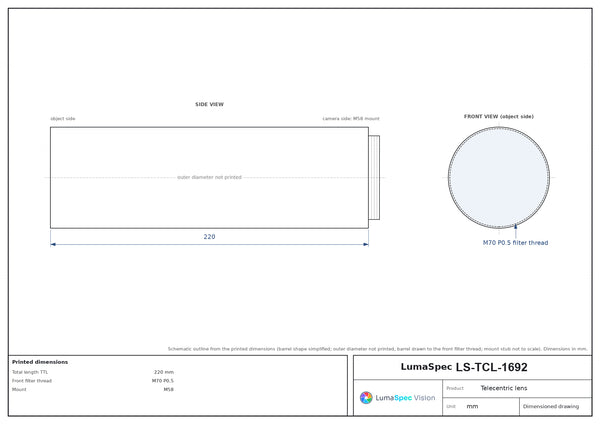

LS-TCL-16920.429x, WD 138 mm, 4/3", M58-mount telecentric lens 0.429xM584/3"138±3 mmF8.1Ø 56 mm$2,099.00 Ships in 2-3 weeks

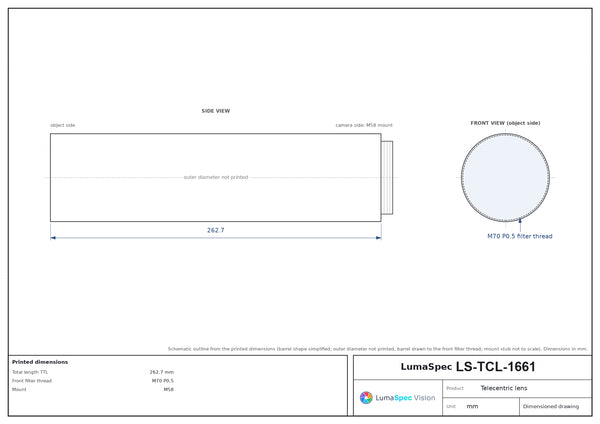

LS-TCL-16610.696x, WD 138 mm, M58-mount telecentric lens 0.696xM58APS-H138±3 mmF13.1Ø 56 mm$2,149.00 Ships in 2-3 weeks
LS-TCL-16330.779x, WD 138 mm, M58-mount telecentric lens 0.779xM58Full frame138±3 mmF14.6Ø 56 mm$2,109.00 Ships in 2-3 weeks
LS-TCL-16060.785x, WD 138 mm telecentric lens 0.785xF-mount, M42, M58Full frame138±3 mmF14.8Ø 56 mm$2,089.00 Ships in 2-3 weeks

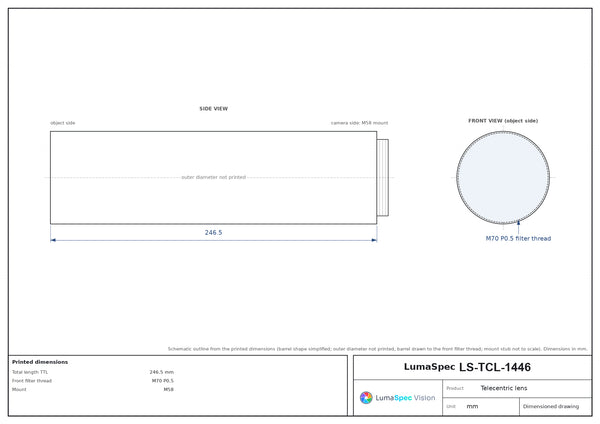

LS-TCL-14460.589x, WD 138 mm, 2", M58-mount telecentric lens 0.589xM582"138±3 mmF11.1Ø 56 mm$2,099.00 Ships in 2-3 weeks
LS-TCL-14130.296x, WD 138 mm, 1", C-mount telecentric lens 0.296xC-mount1"138±3 mmF6.5Ø 56 mm$2,089.00 Ships in 2-3 weeks
LS-TCL-15720.161x, WD 138 mm, 1/1.8", C-mount telecentric lens 0.161xC-mount1/1.8"138±3 mmF4.6Ø 56 mm$2,139.00 Ships in 2-3 weeks
LS-TCL-18200.518x, WD 138 mm, 1.75", M58-mount telecentric lens 0.518xM581.75"138±3 mmF9.7Ø 56 mm$2,099.00 Ships in 2-3 weeks
LS-TCL-15180.143x, WD 138 mm, 1/2", C-mount telecentric lens 0.143xC-mount1/2"138±3 mmF4.2Ø 56 mm$2,089.00 Ships in 2-3 weeks
LS-TCL-17640.129x, WD 138 mm, 1/2.5", C-mount telecentric lens 0.129xC-mount1/2.5"138±3 mmF4.2Ø 56 mm$2,599.00 Ships in 2-3 weeks

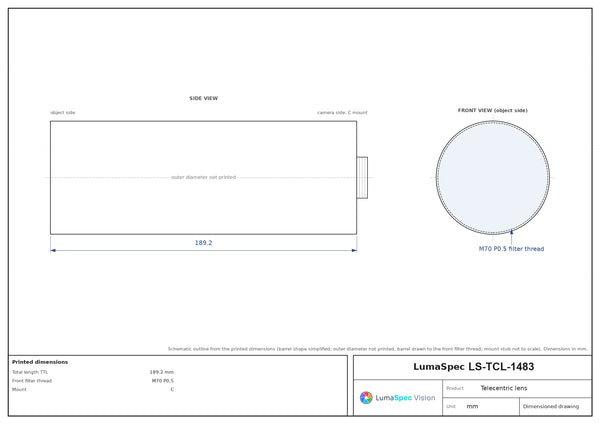

LS-TCL-14830.329x, WD 138 mm, 1.1", C-mount telecentric lens 0.329xC-mount1.1"138±3 mmF6.2Ø 56 mm$2,089.00 Ships in 2-3 weeks
LS-TCL-18810.238x, WD 138 mm, 2/3", C-mount telecentric lens 0.238xC-mount2/3"138±3 mmF6.7Ø 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-18800.238x, WD 128 mm, 2/3", C-mount telecentric lens 0.238xC-mount2/3"128±3 mmF5.4Ø 48 mm$1,899.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
