Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

1153-1176 of 1422 models

Products

Compare
LS-TCL-15770.113x, WD 228 mm, 1/1.8", C-mount telecentric lens, WD 228±4 0.113xC-mount1/1.8"228±4 mmF4.6Ø 80 mm$2,699.00 Ships in 2-3 weeks
LS-TCL-18260.363x, WD 228 mm, 1.75", M58-mount telecentric lens 0.363xM581.75"228±4 mmF6.8Ø 80 mm$2,669.00 Ships in 2-3 weeks
LS-TCL-15460.738x, WD 228 mm, M72-mount telecentric lens, WD 228±4 0.738xM72Large format228±4 mmF9.9Ø 80 mm$2,699.00 Ships in 2-3 weeks

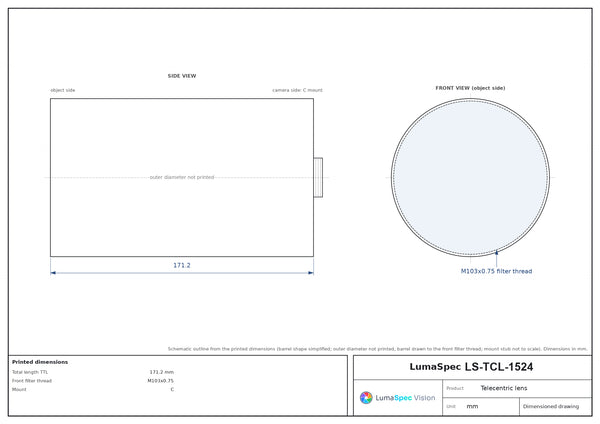

LS-TCL-15240.1x, WD 228 mm, 1/2", C-mount telecentric lens, WD 228±4 0.1xC-mount1/2"228±4 mmF4.2Ø 80 mm$2,659.00 Ships in 2-3 weeks
LS-TCL-17690.09x, WD 228 mm, 1/2.5", C-mount telecentric lens 0.09xC-mount1/2.5"228±4 mmF4.2Ø 80 mm$2,899.00 Ships in 2-3 weeks
LS-TCL-14890.23x, WD 228 mm, 1.1", C-mount telecentric lens, WD 228±4 0.23xC-mount1.1"228±4 mmF6.2Ø 80 mm$2,669.00 Ships in 2-3 weeks
LS-TCL-18940.158x, WD 178 mm, 2/3", C-mount telecentric lens 0.158xC-mount2/3"178±3 mmF4.9Ø 72 mm$2,459.00 Ships in 2-3 weeks
LS-TCL-17310.328x, WD 178 mm, 4/3", M58-mount telecentric lens 0.328xM584/3"178±3 mmF6.9Ø 72 mm$2,469.00 Ships in 2-3 weeks

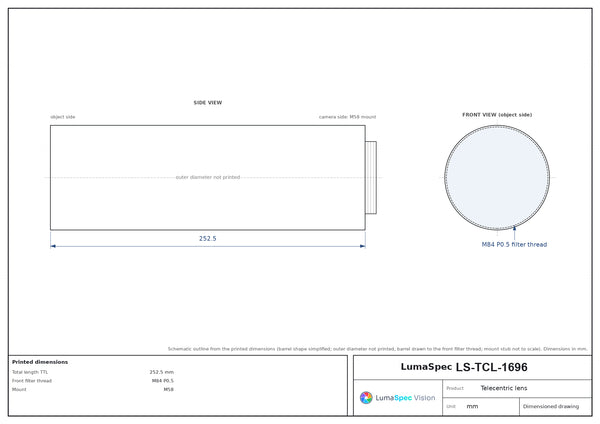

LS-TCL-16960.333x, WD 178 mm, 4/3", M58-mount telecentric lens 0.333xM584/3"178±3 mmF7.5Ø 72 mm$2,469.00 Ships in 2-3 weeks

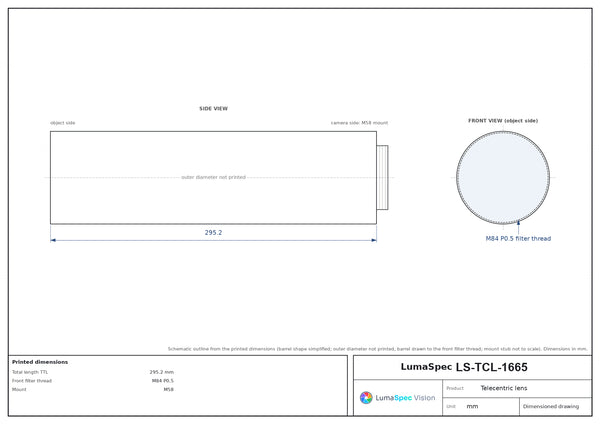

LS-TCL-16650.542x, WD 178 mm, M58-mount telecentric lens 0.542xM58APS-H178±3 mmF11.5Ø 72 mm$2,479.00 Ships in 2-3 weeks
LS-TCL-16360.606x, WD 178 mm, M58-mount telecentric lens 0.606xM58Full frame178±3 mmF12.8Ø 72 mm$2,479.00 Ships in 2-3 weeks
LS-TCL-16100.611x, WD 178 mm telecentric lens 0.611xF-mount, M42, M58Full frame178±3 mmF12.9Ø 72 mm$2,459.00 Ships in 2-3 weeks

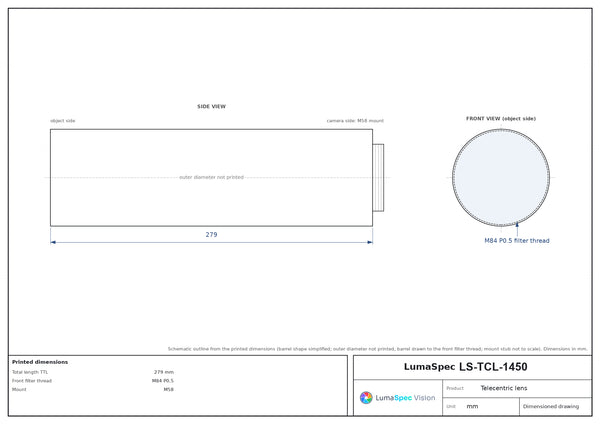

LS-TCL-14500.458x, WD 178 mm, 2", M58-mount telecentric lens 0.458xM582"178±3 mmF9.7Ø 72 mm$2,479.00 Ships in 2-3 weeks
LS-TCL-14170.231x, WD 178 mm, 1", C-mount telecentric lens 0.231xC-mount1"178±3 mmF6.5Ø 72 mm$2,469.00 Ships in 2-3 weeks
LS-TCL-15760.125x, WD 178 mm, 1/1.8", C-mount telecentric lens 0.125xC-mount1/1.8"178±3 mmF4.6Ø 72 mm$2,699.00 Ships in 2-3 weeks
LS-TCL-18240.403x, WD 178 mm, 1.75", M58-mount telecentric lens 0.403xM581.75"178±3 mmF8.5Ø 72 mm$2,469.00 Ships in 2-3 weeks
LS-TCL-15220.111x, WD 178 mm, 1/2", C-mount telecentric lens 0.111xC-mount1/2"178±3 mmF4.2Ø 72 mm$2,459.00 Ships in 2-3 weeks
LS-TCL-17680.1x, WD 178 mm, 1/2.5", C-mount telecentric lens 0.1xC-mount1/2.5"178±3 mmF4.2Ø 72 mm$2,699.00 Ships in 2-3 weeks
LS-TCL-14870.256x, WD 178 mm, 1.1", C-mount telecentric lens 0.256xC-mount1.1"178±3 mmF6.2Ø 72 mm$2,469.00 Ships in 2-3 weeks
LS-TCL-18850.178x, WD 158 mm, 2/3", C-mount telecentric lens 0.178xC-mount2/3"158±3 mmF4.9Ø 64 mm$2,269.00 Ships in 2-3 weeks

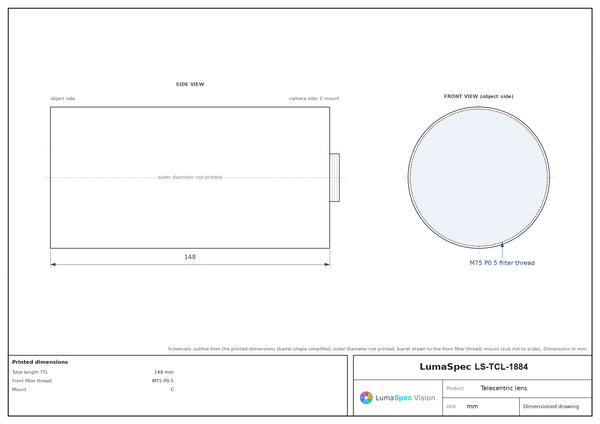

LS-TCL-18840.178x, WD 189 mm, 2/3", C-mount telecentric lens 0.178xC-mount2/3"189±3 mmF5.4Ø 64 mm$2,269.00 Ships in 2-3 weeks
LS-TCL-17300.369x, WD 158 mm, 4/3", M58-mount telecentric lens 0.369xM584/3"158±3 mmF6.9Ø 64 mm$2,289.00 Ships in 2-3 weeks

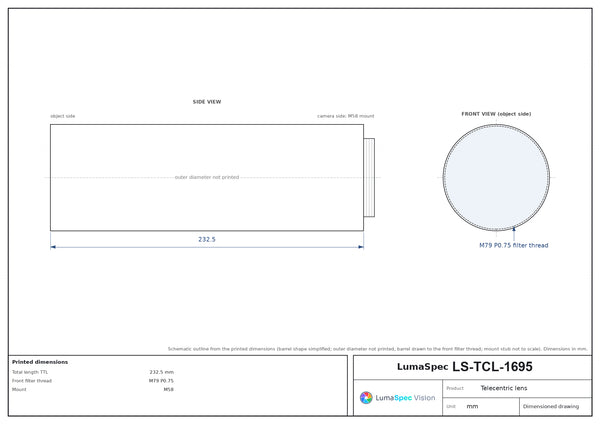

LS-TCL-16950.375x, WD 158 mm, 4/3", M58-mount telecentric lens 0.375xM584/3"158±3 mmF7.5Ø 64 mm$2,289.00 Ships in 2-3 weeks

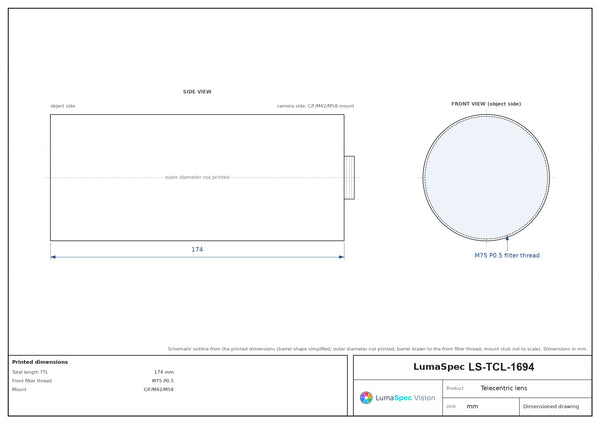

LS-TCL-16940.375x, WD 189 mm, 4/3" telecentric lens 0.375xC-mount, F-mount, M42, M584/3"189±3 mmF14.1Ø 64 mm$2,279.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.

Configure a system · Browse all Telecentric lenses
