Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

1105-1128 of 1422 models

Products

Compare

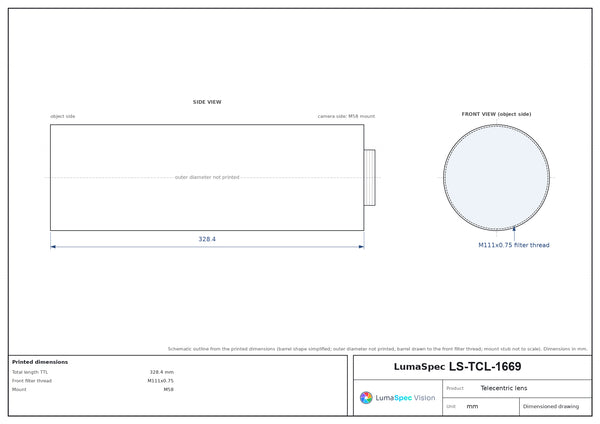

LS-TCL-16690.39x, WD 238 mm, M58-mount telecentric lens 0.39xM58APS-H238±4 mmF9.2Ø 100 mm$3,159.00 Ships in 2-3 weeks
LS-TCL-16400.436x, WD 238 mm, M58-mount telecentric lens 0.436xM58Full frame238±4 mmF10.3Ø 100 mm$3,159.00 Ships in 2-3 weeks
LS-TCL-16140.44x, WD 238 mm telecentric lens 0.44xF-mount, M42, M58Full frame238±4 mmF10.3Ø 100 mm$3,159.00 Ships in 2-3 weeks

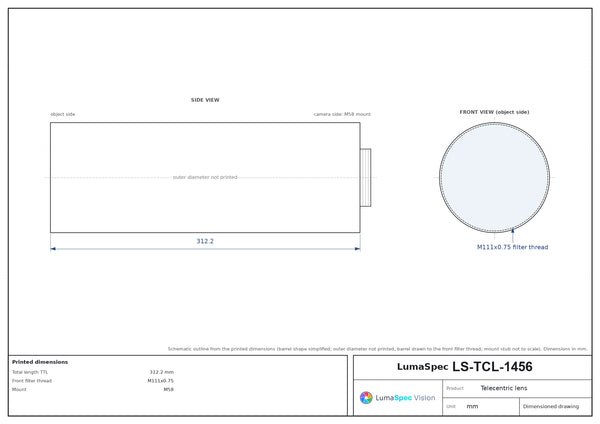

LS-TCL-14560.33x, WD 238 mm, 2", M58-mount telecentric lens 0.33xM582"238±4 mmF7.8Ø 100 mm$3,159.00 Ships in 2-3 weeks
LS-TCL-14230.166x, WD 238 mm, 1", C-mount telecentric lens 0.166xC-mount1"238±4 mmF6.5Ø 100 mm$3,149.00 Ships in 2-3 weeks

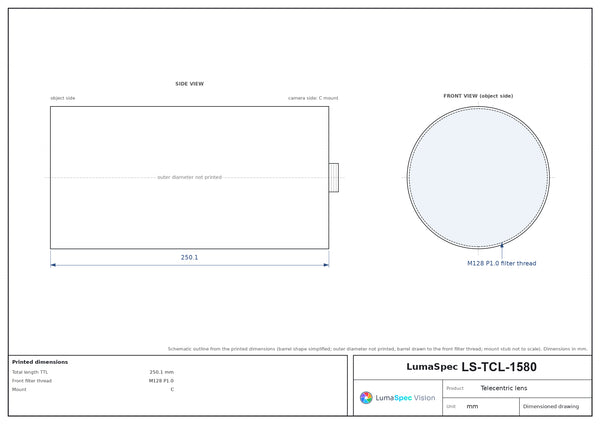

LS-TCL-15800.09x, WD 238 mm, 1/1.8", C-mount telecentric lens 0.09xC-mount1/1.8"238±4 mmF4.6Ø 100 mm$3,139.00 Ships in 2-3 weeks
LS-TCL-18300.29x, WD 238 mm, 1.75", M58-mount telecentric lens 0.29xM581.75"238±4 mmF6.8Ø 100 mm$3,159.00 Ships in 2-3 weeks
LS-TCL-15490.59x, WD 238 mm, M72-mount telecentric lens 0.59xM72Large format238±4 mmF13.9Ø 100 mm$3,149.00 Ships in 2-3 weeks
LS-TCL-15280.08x, WD 238 mm, 1/2", C-mount telecentric lens 0.08xC-mount1/2"238±4 mmF4.2Ø 100 mm$3,139.00 Ships in 2-3 weeks

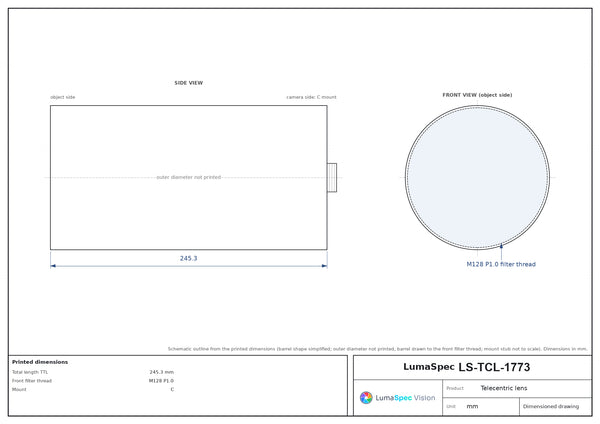

LS-TCL-17730.072x, WD 238 mm, 1/2.5", C-mount telecentric lens 0.072xC-mount1/2.5"238±4 mmF4.2Ø 100 mm$3,409.00 Ships in 2-3 weeks
LS-TCL-14930.184x, WD 238 mm, 1.1", C-mount telecentric lens 0.184xC-mount1.1"238±4 mmF6.2Ø 100 mm$3,149.00 Ships in 2-3 weeks
LS-TCL-18970.1239x, WD 350 mm, 2/3", C-mount telecentric lens 0.1239xC-mount2/3"350±6 mmF4.9Ø 92 mm$2,919.00 Ships in 2-3 weeks
LS-TCL-17340.2587x, WD 350 mm, 4/3", C-mount telecentric lens 0.2587xC-mount4/3"350±6 mmF7.9Ø 92 mm$2,919.00 Ships in 2-3 weeks

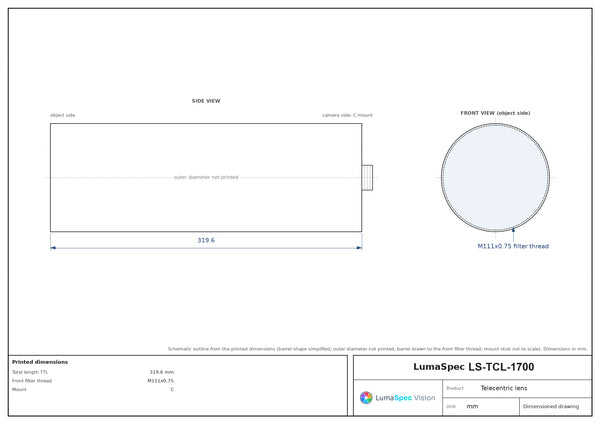

LS-TCL-17000.2609x, WD 350 mm, 4/3", C-mount telecentric lens 0.2609xC-mount4/3"350±6 mmF8.1Ø 92 mm$2,919.00 Ships in 2-3 weeks
LS-TCL-16680.4239x, WD 350 mm, C-mount telecentric lens 0.4239xC-mountAPS-H350±6 mmF13.1Ø 92 mm$2,919.00 Ships in 2-3 weeks
LS-TCL-16390.4739x, WD 350 mm, C-mount telecentric lens 0.4739xC-mountFull frame350±6 mmF14.7Ø 92 mm$2,919.00 Ships in 2-3 weeks
LS-TCL-16130.4783x, WD 350 mm, C-mount telecentric lens 0.4783xC-mountFull frame350±6 mmF14.8Ø 92 mm$2,919.00 Ships in 2-3 weeks

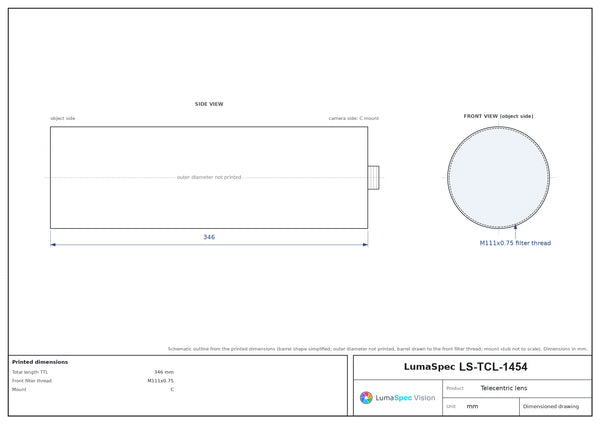

LS-TCL-14540.3587x, WD 350 mm, 2", C-mount telecentric lens 0.3587xC-mount2"350±6 mmF11.1Ø 92 mm$2,919.00 Ships in 2-3 weeks
LS-TCL-14210.1804x, WD 350 mm, 1", C-mount telecentric lens 0.1804xC-mount1"350±6 mmF6.5Ø 92 mm$2,919.00 Ships in 2-3 weeks
LS-TCL-15790.0978x, WD 350 mm, 1/1.8", C-mount telecentric lens 0.0978xC-mount1/1.8"350±6 mmF4.6Ø 92 mm$2,919.00 Ships in 2-3 weeks
LS-TCL-18280.3152x, WD 350 mm, 1.75", C-mount telecentric lens 0.3152xC-mount1.75"350±6 mmF9.7Ø 92 mm$2,919.00 Ships in 2-3 weeks

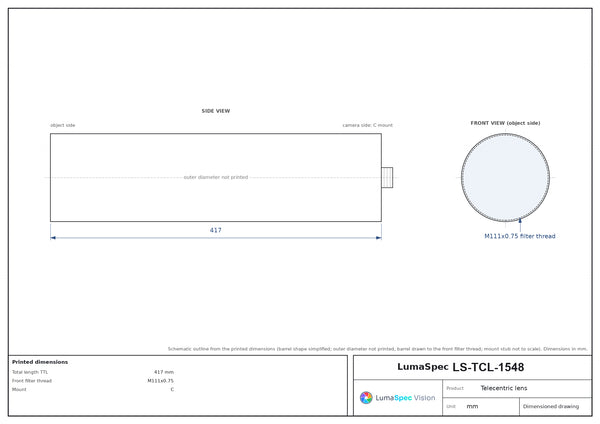

LS-TCL-15480.6413x, WD 350 mm, C-mount telecentric lens 0.6413xC-mountLarge format350±6 mmF19.8Ø 92 mm$2,919.00 Ships in 2-3 weeks

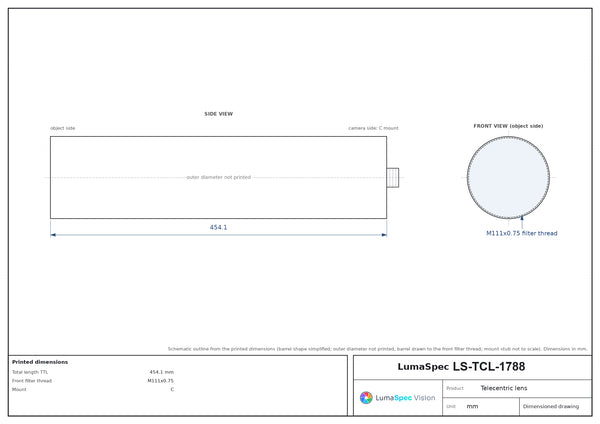

LS-TCL-17880.7348x, WD 350 mm, C-mount telecentric lens 0.7348xC-mountLarge format350±6 mmF22.7Ø 92 mm$2,929.00 Ships in 2-3 weeks
LS-TCL-15260.087x, WD 350 mm, 1/2", C-mount telecentric lens 0.087xC-mount1/2"350±6 mmF4.2Ø 92 mm$2,919.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
