Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

1057-1080 of 1422 models

Products

Compare
LS-TCL-19010.084x, WD 288 mm, 2/3", C-mount telecentric lens 0.084xC-mount2/3"288±5 mmF4.9Ø 136 mm$3,989.00 Ships in 2-3 weeks
LS-TCL-17380.174x, WD 288 mm, 4/3", M58-mount telecentric lens 0.174xM584/3"288±5 mmF4.6Ø 136 mm$3,999.00 Ships in 2-3 weeks
LS-TCL-17070.177x, WD 288 mm, 4/3", M58-mount telecentric lens 0.177xM584/3"288±5 mmF7.5Ø 136 mm$3,999.00 Ships in 2-3 weeks
LS-TCL-16730.287x, WD 288 mm, M58-mount telecentric lens, length 323.6 mm 0.287xM58APS-H288±5 mmF7.1Ø 136 mm$3,999.00 Ships in 2-3 weeks
LS-TCL-16720.287x, WD 288 mm, M58-mount telecentric lens, length 457.8 mm 0.287xM58APS-H288±5 mmF7.1Ø 136 mm$4,009.00 Ships in 2-3 weeks
LS-TCL-16430.321x, WD 288 mm, M58-mount telecentric lens 0.321xM58Full frame288±5 mmF7.9Ø 136 mm$4,009.00 Ships in 2-3 weeks
LS-TCL-16170.324x, WD 288 mm telecentric lens 0.324xF-mount, M42, M58Full frame288±5 mmF10.3Ø 136 mm$3,949.00 Ships in 2-3 weeks
LS-TCL-14610.243x, WD 288 mm, 2", M58-mount telecentric lens 0.243xM582"288±5 mmF7.8Ø 136 mm$3,999.00 Ships in 2-3 weeks
LS-TCL-14270.122x, WD 288 mm, 1", C-mount telecentric lens 0.122xC-mount1"288±5 mmF6.5Ø 136 mm$3,989.00 Ships in 2-3 weeks
LS-TCL-15830.066x, WD 288 mm, 1/1.8", C-mount telecentric lens 0.066xC-mount1/1.8"288±5 mmF4.6Ø 136 mm$3,989.00 Ships in 2-3 weeks
LS-TCL-18350.213x, WD 288 mm, 1.75", M58-mount telecentric lens 0.213xM581.75"288±5 mmF6.8Ø 136 mm$3,999.00 Ships in 2-3 weeks
LS-TCL-15520.434x, WD 288 mm, M72-mount telecentric lens 0.434xM72Large format288±5 mmF10.7Ø 136 mm$4,019.00 Ships in 2-3 weeks
LS-TCL-17900.497x, WD 288 mm, M72-mount telecentric lens, length Per outline drawing 0.497xM72Large format288±5 mmF12.2Ø 136 mm$3,929.00 Ships in 2-3 weeks
LS-TCL-17890.497x, WD 288 mm, M72-mount telecentric lens, length 542 mm 0.497xM72Large format288±5 mmF12.2Ø 136 mm$3,959.00 Ships in 2-3 weeks
LS-TCL-15320.059x, WD 288 mm, 1/2", C-mount telecentric lens 0.059xC-mount1/2"288±5 mmF4.2Ø 136 mm$3,989.00 Ships in 2-3 weeks
LS-TCL-17770.053x, WD 288 mm, 1/2.5", C-mount telecentric lens 0.053xC-mount1/2.5"288±5 mmF6.5Ø 136 mm$5,319.00Quote Ships in 2-3 weeks
LS-TCL-14970.135x, WD 288 mm, 1.1", C-mount telecentric lens, WD 288±5, length 384.3 mm 0.135xC-mount1.1"288±5 mmF6.2Ø 136 mm$3,989.00 Ships in 2-3 weeks

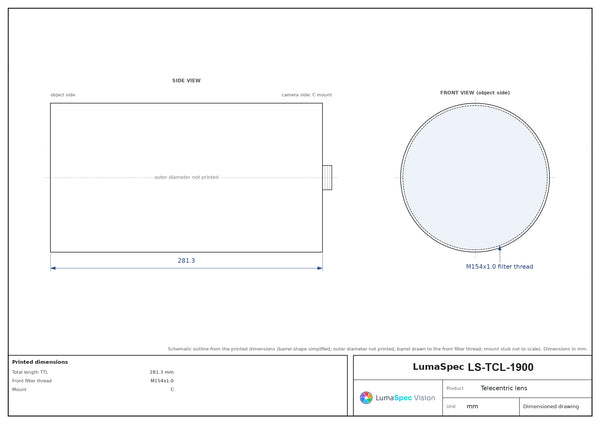

LS-TCL-19000.095x, WD 273 mm, 2/3", C-mount telecentric lens 0.095xC-mount2/3"273±5 mmF4.9Ø 120 mm$3,629.00 Ships in 2-3 weeks
LS-TCL-17370.197x, WD 273 mm, 4/3", M58-mount telecentric lens 0.197xM584/3"273±5 mmF4.6Ø 120 mm$3,639.00 Ships in 2-3 weeks
LS-TCL-17050.2x, WD 273 mm, 4/3", M58-mount telecentric lens 0.2xM584/3"273±5 mmF7.5Ø 120 mm$3,639.00 Ships in 2-3 weeks
LS-TCL-16710.325x, WD 273 mm, M58-mount telecentric lens 0.325xM58APS-H273±5 mmF7.6Ø 120 mm$3,639.00 Ships in 2-3 weeks
LS-TCL-16420.363x, WD 273 mm, M58-mount telecentric lens 0.363xM58Full frame273±5 mmF8.5Ø 120 mm$3,639.00 Ships in 2-3 weeks
LS-TCL-16160.367x, WD 273 mm telecentric lens 0.367xF-mount, M42, M58Full frame273±5 mmF10.3Ø 120 mm$3,639.00 Ships in 2-3 weeks
LS-TCL-14590.275x, WD 273 mm, 2", M58-mount telecentric lens 0.275xM582"273±5 mmF7.8Ø 120 mm$3,639.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.

Configure a system · Browse all Telecentric lenses
