Telecentric lenses
0.059x, WD 288 mm, 1/2", C-mount Telecentric Lens (LS-TCL-1532)
Model LS-TCL-1532
- Magnification0.059x
- MountC-mount
- Sensor1/2"
- Working distance288±5
- Aperture4.2
- Field of view136
$3,989.00
Ships in 2-3 weeks
5.98 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.059x, WD 288 mm, 1/2", C-mount Telecentric Lens. At a glance: magnification 0.059x; working distance 288±5 mm; max sensor size 8.0 mm (1/2"); object field of view 136 mm; image-side f/# 4.2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1532 |
|---|
Optics
| Object field of view (dia. mm) | 136 |
|---|---|
| Magnification (x) | 0.059 |
| Working distance (mm) | 288±5 |
| Image-side F/# | 4.2 |
| Image-side MTF30 (lp/mm) | >215 |
| Theoretical depth of field (mm) | ±126@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 649±5 |

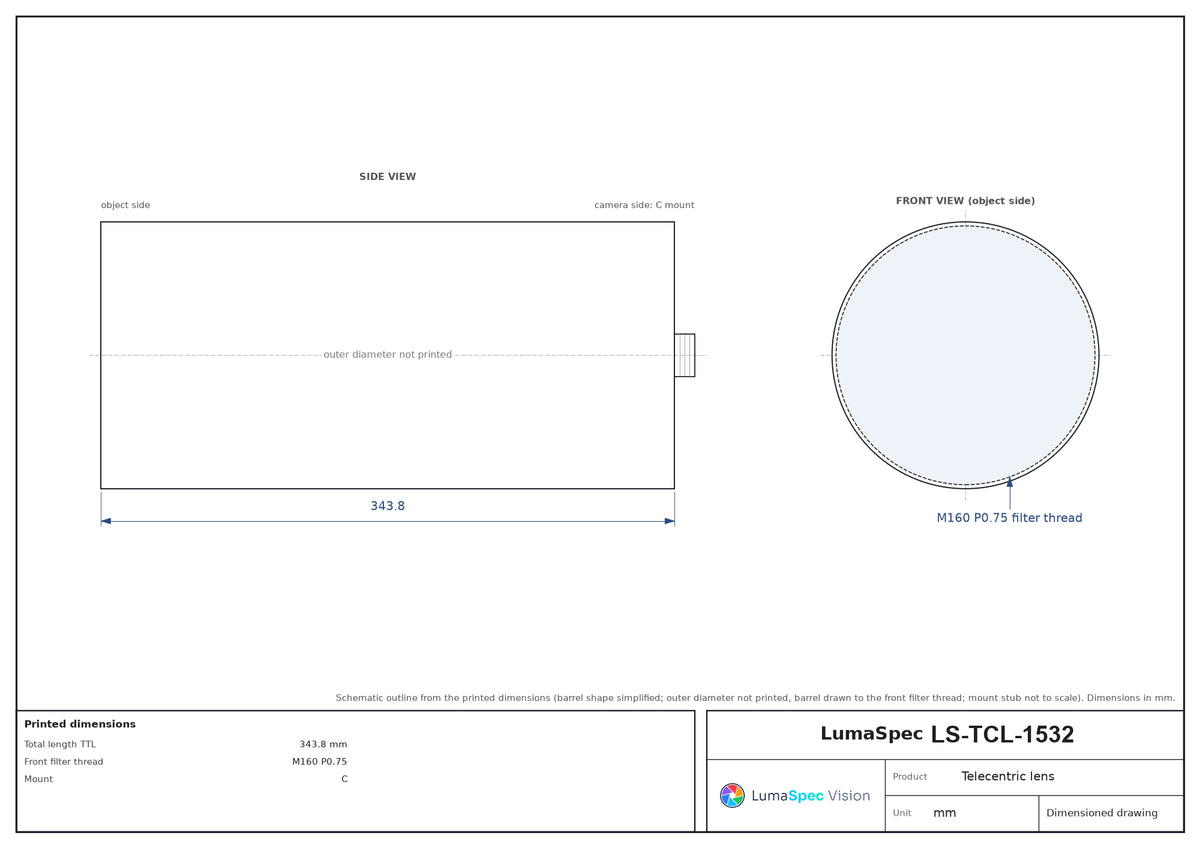

| Total length TTL (mm) | 343.8 |
| Front filter thread | M160 P0.75 |
Sensor and imaging
| Max sensor size (dia. mm) | 8.0(1/2") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 4.2 |
| Shipping weight (estimated) | 5.98 kg |
Photo shows a representative model of this series; see the specifications for this model.
