Telecentric lenses
0.458x, WD 178 mm, 2", M58-mount Telecentric Lens (LS-TCL-1450)
Model LS-TCL-1450
- Magnification0.458x
- MountM58
- SensorAPS-H
- Working distance178±3
- Aperture9.7
- Field of view72
$2,479.00
In stock - ships the same business day (4 available, order by 2 PM ET)
2.37 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.458x, WD 178 mm, 2", M58-mount Telecentric Lens. At a glance: magnification 0.458x; working distance 178±3 mm; max sensor size 33 mm (2"); object field of view 72 mm; image-side f/# 9.7.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1450 |
|---|
Optics
| Object field of view (dia. mm) | 72 |
|---|---|
| Magnification (x) | 0.458 |
| Working distance (mm) | 178±3 |
| Image-side F/# | 9.7 |
| Image-side MTF30 (lp/mm) | >90 |
| Theoretical depth of field (mm) | ±3.8@F20 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 469±3 |

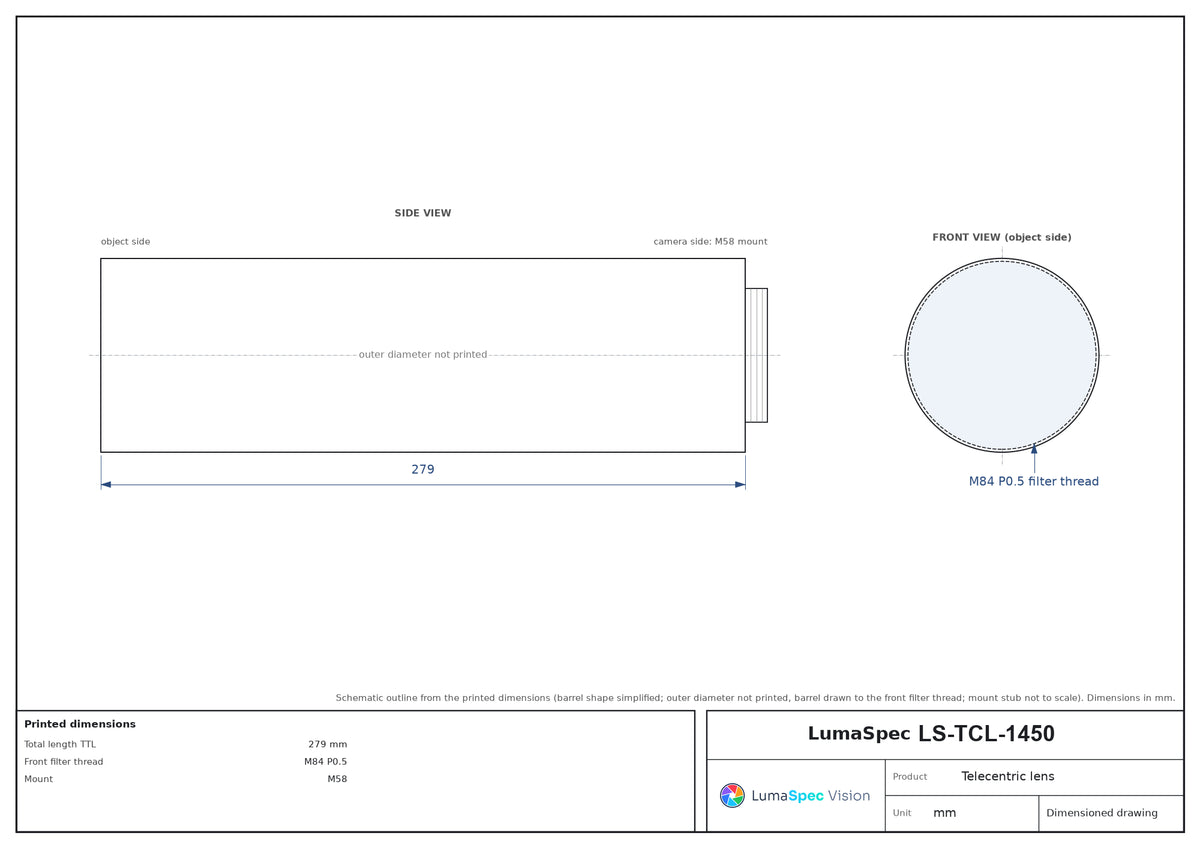

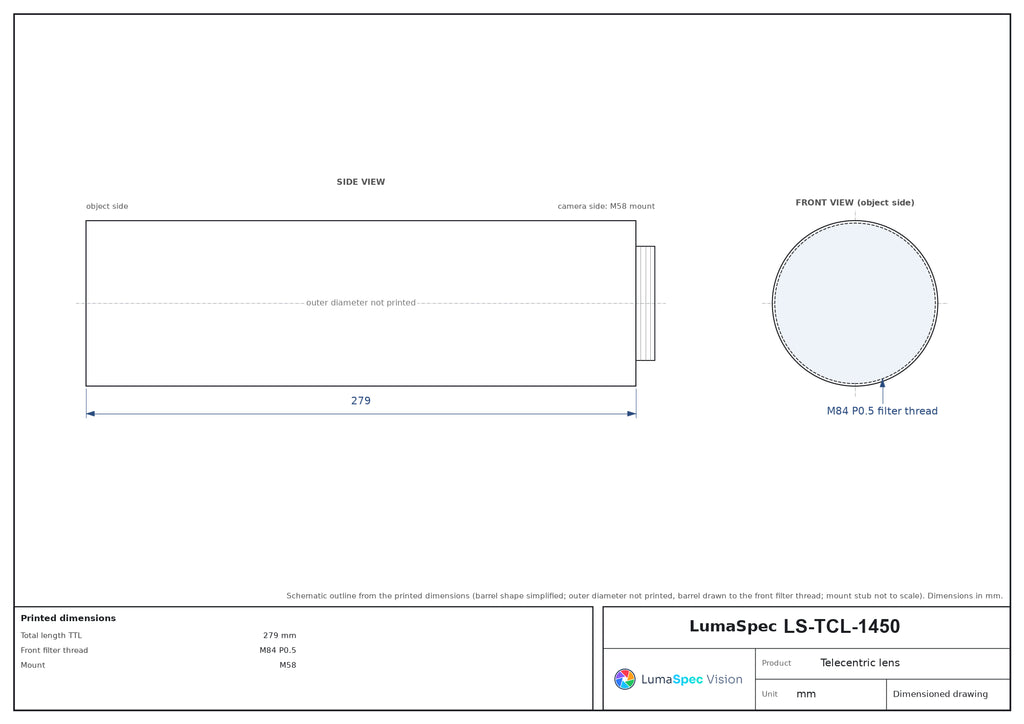

| Total length TTL (mm) | 279 |
| Front filter thread | M84 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 33(2") |
|---|
Mechanical
| Mount | M58 |
|---|---|
| Net weight (kg) | 1.618 |
| Shipping weight (estimated) | 2.37 kg |
Photo shows a representative model of this series; see the specifications for this model.
