Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

769-792 of 1422 models

Products

Compare
LS-TCL-2724Bi-telecentric lens for 35 mm Full cameras, 1.035x, WD 119 mm 1.035xF-mountFull frame119±2 mm32.8x24.6 mmFrom $2,049.00 Ships in 2-3 weeks
LS-TCL-2723Bi-telecentric lens for 35 mm Full cameras, 1.208x, WD 111 mm 1.208xF-mountFull frame111±2 mm29.9x19.9 mmFrom $1,849.00 Ships in 2-3 weeks
LS-TCL-2722Bi-telecentric lens for 35 mm Full cameras, 1.503x, WD 72 mm 1.503xF-mountFull frame72±2 mm24.0x16.0 mmFrom $2,039.00 Ships in 2-3 weeks

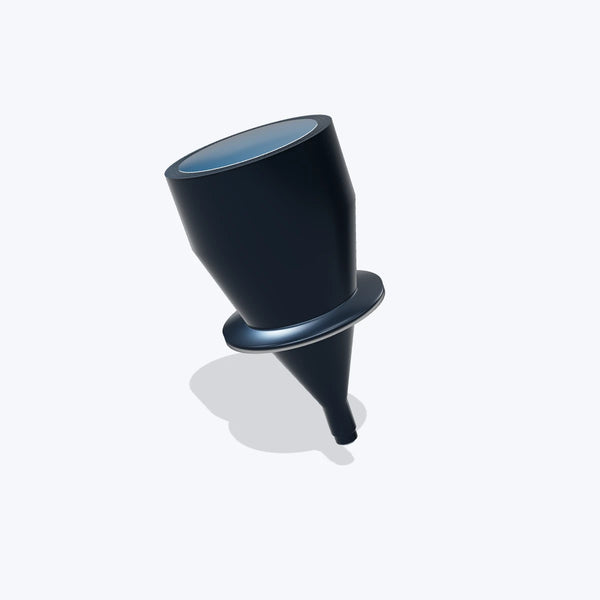

LS-TCL-2721Bi-telecentric lens for 2/3" cameras, 0.048x, WD 410 mm, C-mount 0.048xC-mount2/3"410±5 mm176.4x147.9 mm$6,609.00Quote Ships in 2-3 weeks
LS-TCL-2720Bi-telecentric lens for 2/3" cameras, 0.067x, WD 318 mm, C-mount 0.067xC-mount2/3"318±4 mm126.4x105.9 mm$4,829.00 Ships in 2-3 weeks

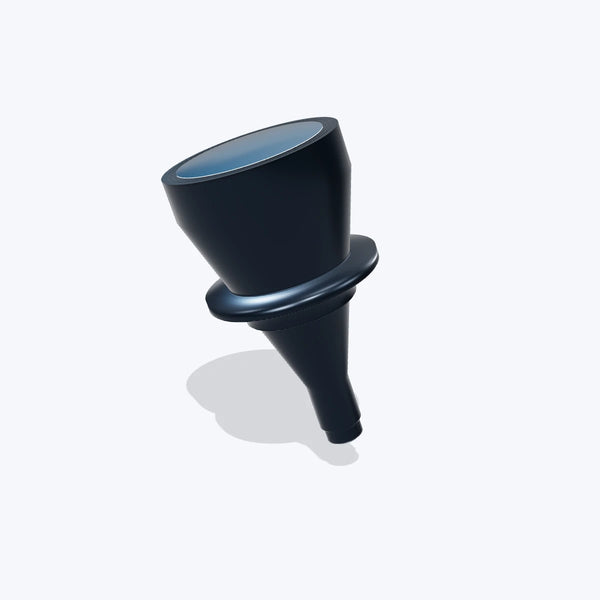

LS-TCL-2719Bi-telecentric lens for 2/3" cameras, 0.076x, WD 301 mm, C-mount 0.076xC-mount2/3"301±4 mm111.4x93.4 mm$4,359.00 Ships in 2-3 weeks
LS-TCL-2718Bi-telecentric lens for 2/3" cameras, 0.084x, WD 288 mm, C-mount 0.084xC-mount2/3"288±4 mm100.8x84.5 mm$4,049.00 Ships in 2-3 weeks
LS-TCL-2717Bi-telecentric lens for 2/3" cameras, 0.103x, WD 251 mm, C-mount 0.103xC-mount2/3"251±3 mm82.2x68.9 mm$3,419.00 Ships in 2-3 weeks

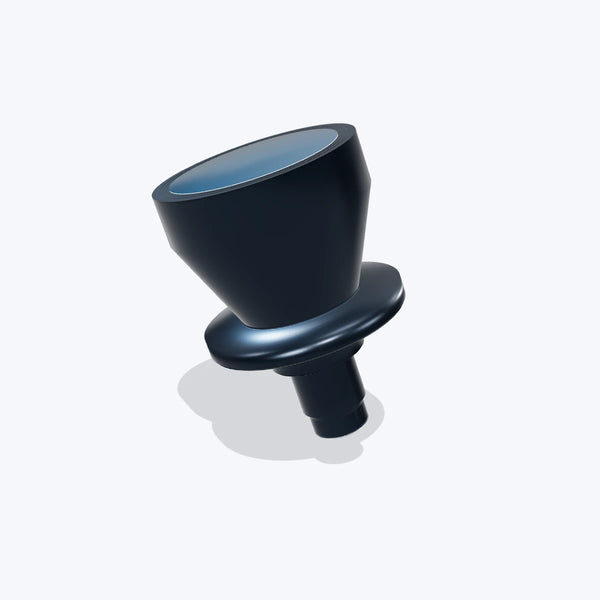

LS-TCL-2715Bi-telecentric lens for 2/3" cameras, 0.123x, WD 254 mm, C-mount 0.123xC-mount2/3"254±3 mm68.8x57.7 mm$2,979.00 Ships in 2-3 weeks

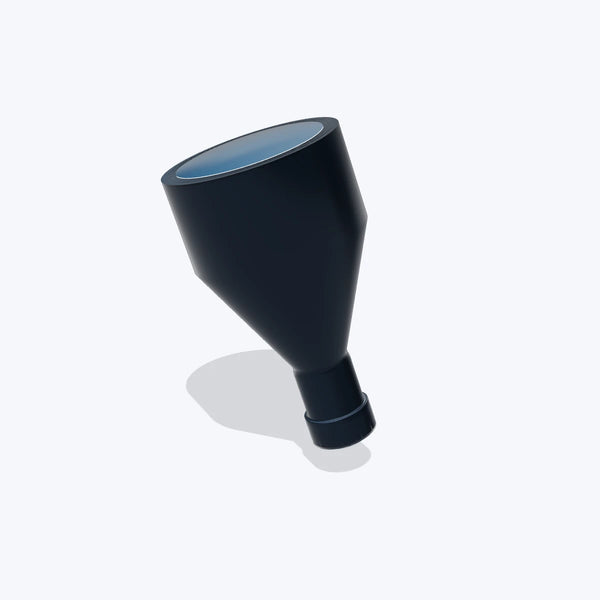

LS-TCL-2712Bi-telecentric lens for 2/3" cameras, 0.143x, WD 229 mm, C-mount 0.143xC-mount2/3"229±2 mm59.2x49.6 mm$2,659.00 Ships in 2-3 weeks
LS-TCL-2711Bi-telecentric lens for 2/3" cameras, 0.159x, WD 178 mm, C-mount 0.159xC-mount2/3"178±2 mm53.6x44.9 mm$2,459.00 Ships in 2-3 weeks

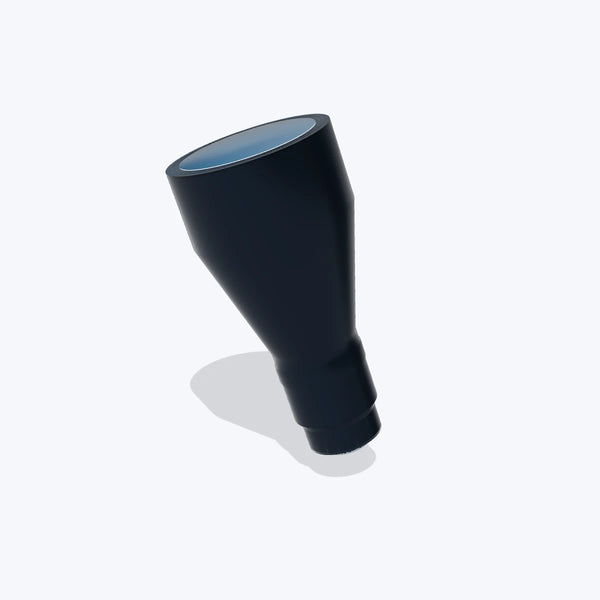

LS-TCL-2710Bi-telecentric lens for 2/3" cameras, 0.179x, WD 159 mm, C-mount 0.179xC-mount2/3"159±2 mm47.3x39.6 mm$2,279.00 Ships in 2-3 weeks

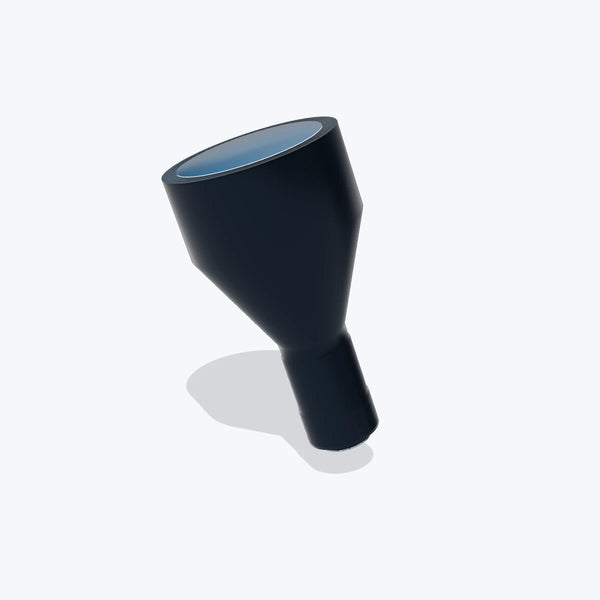

LS-TCL-2709Bi-telecentric lens for 2/3" cameras, 0.179x, WD 187 mm, C-mount 0.179xC-mount2/3"187±2 mm47.3x39.6 mm$2,279.00 Ships in 2-3 weeks

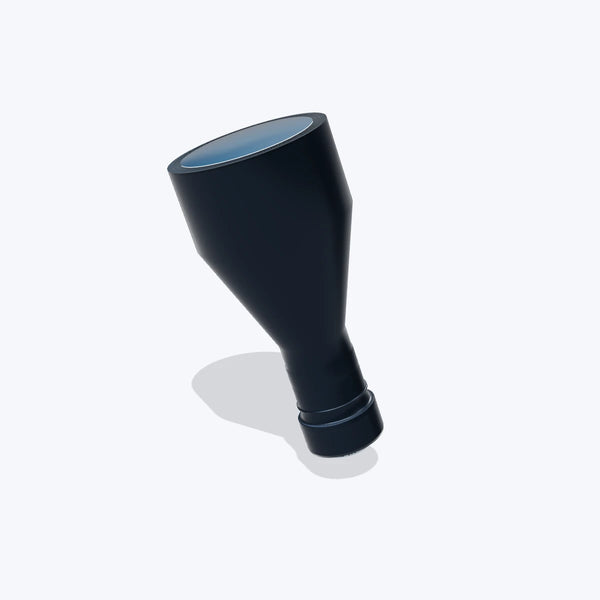

LS-TCL-2708Bi-telecentric lens for 2/3" cameras, 0.204x, WD 138 mm, C-mount 0.204xC-mount2/3"138±2 mm41.5x34.8 mm$2,089.00 Ships in 2-3 weeks
LS-TCL-2707Bi-telecentric lens for 2/3" cameras, 0.238x, WD 128 mm, C-mount 0.238xC-mount2/3"128±2 mm35.5x29.8 mm$1,899.00 Ships in 2-3 weeks

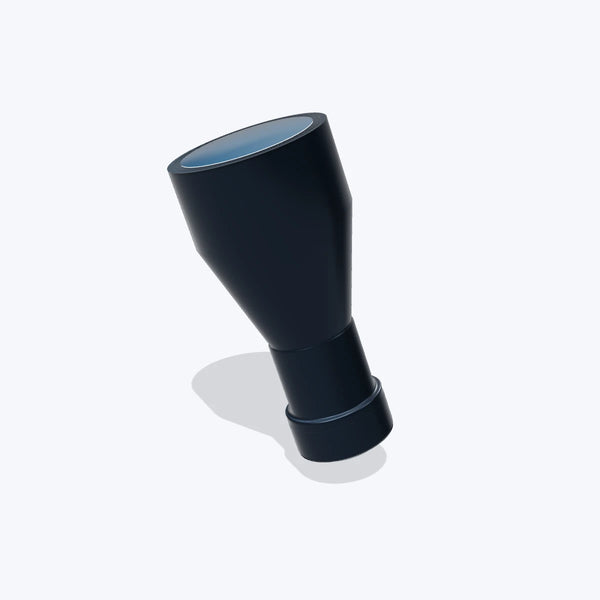

LS-TCL-2705Bi-telecentric lens for 2/3" cameras, 0.271x, WD 119 mm, C-mount 0.271xC-mount2/3"119±2 mm31.2x26.1 mm$1,769.00 Ships in 2-3 weeks

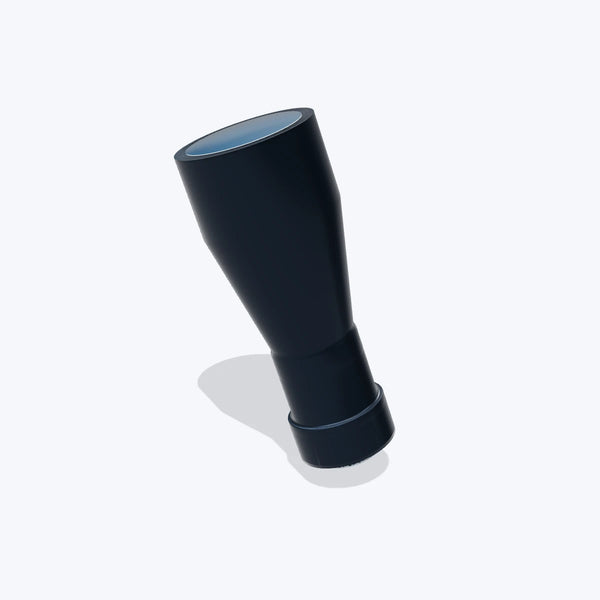

LS-TCL-2704Bi-telecentric lens for 2/3" cameras, 0.314x, WD 111 mm, C-mount 0.314xC-mount2/3"111±2 mm26.9x22.6 mm$1,629.00 Ships in 2-3 weeks

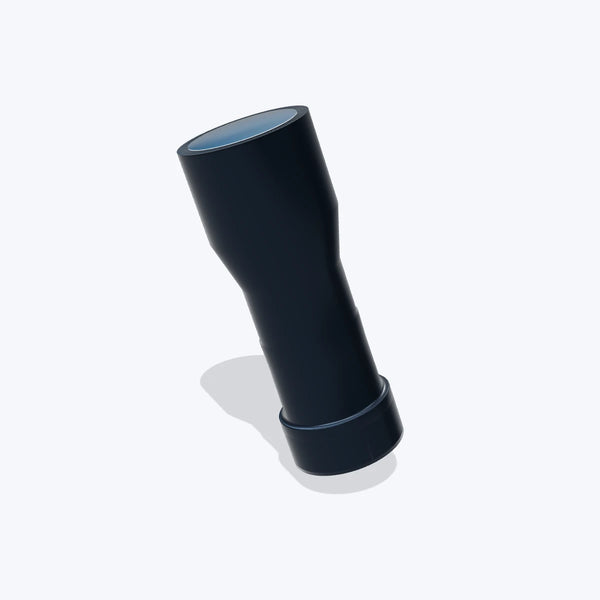

LS-TCL-2703Bi-telecentric lens for 2/3" cameras, 0.439x, WD 72 mm, C-mount 0.439xC-mount2/3"72±2 mm19.2x16.1 mm$1,399.00 Ships in 2-3 weeks

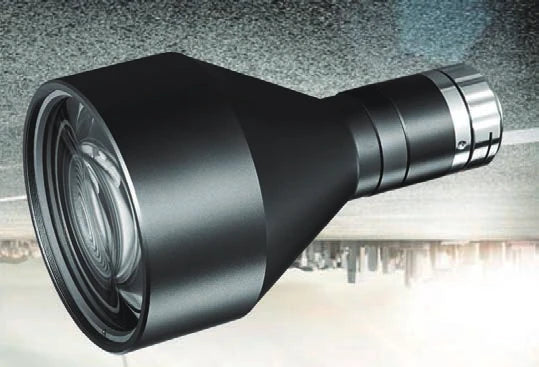

LS-TCL-2701Bi-telecentric lens for 2/3" cameras, 0.044x, WD 410 mm, C-mount 0.044xC-mount2/3"410±5 mm192.5x161.3 mm$6,859.00Quote Ships in 2-3 weeks
LS-TCL-2699Bi-telecentric lens for 2/3" cameras, 0.063x, WD 318 mm, C-mount 0.063xC-mount2/3"318±4 mm134.4x112.6 mm$4,959.00 Ships in 2-3 weeks
LS-TCL-2698Bi-telecentric lens for 2/3" cameras, 0.071x, WD 301 mm, C-mount 0.071xC-mount2/3"301±4 mm119.2x100.0 mm$4,469.00 Ships in 2-3 weeks
LS-TCL-2697Bi-telecentric lens for 2/3" cameras, 0.078x, WD 288 mm, C-mount 0.078xC-mount2/3"288±4 mm108.5x91.0 mm$4,169.00 Ships in 2-3 weeks

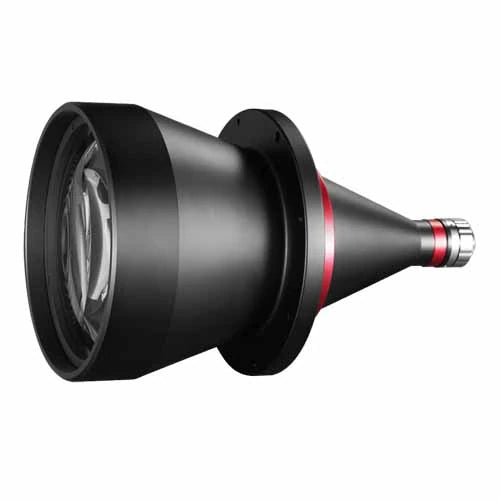

LS-TCL-2695Bi-telecentric lens for 2/3" cameras, 0.095x, WD 251 mm, C-mount 0.095xC-mount2/3"251±3 mm89.1x74.7 mm$3,509.00 Ships in 2-3 weeks

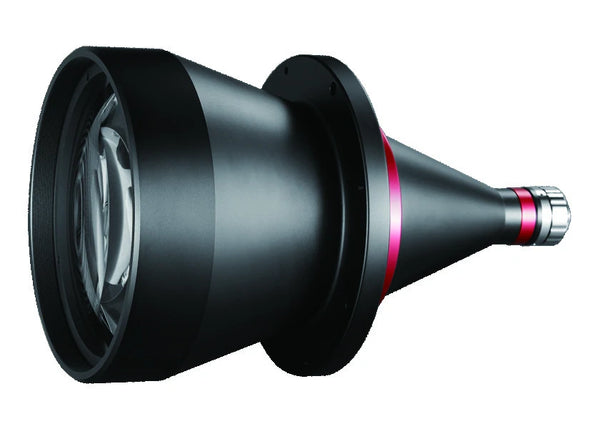

LS-TCL-2694Bi-telecentric lens for 2/3" cameras, 0.114x, WD 254 mm, C-mount 0.114xC-mount2/3"254±3 mmØ 100 mm$3,079.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
