Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

721-744 of 1422 models

Products

Compare
LS-TCL-2997Bi-telecentric lens for 1.1" sensor, 0.11x, WD 320 mm, C-mount, 25 million pixels resolution 0.11xC-mount1.1"320 mmF725 million pixels$3,759.00 Ships in 2-3 weeks
LS-TCL-2996Bi-telecentric lens for 1.1" sensor, 0.13x, WD 300 mm, C-mount, 25 million pixels resolution 0.13xC-mount1.1"300 mmF625 million pixels$3,309.00 Ships in 2-3 weeks

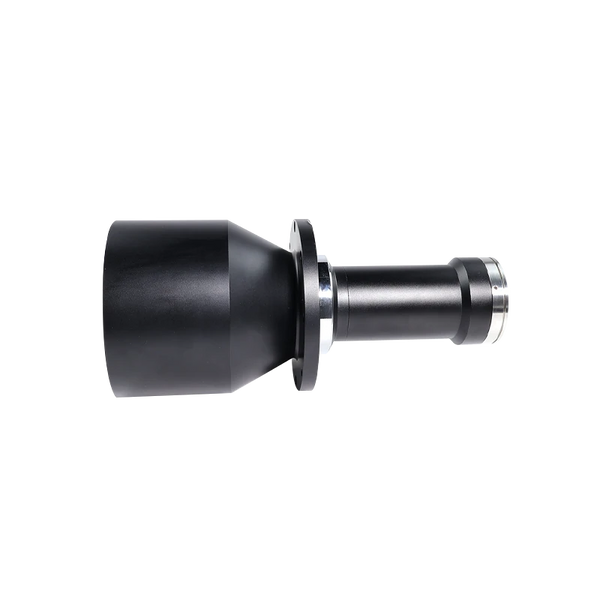

LS-TCL-2995Bi-telecentric lens for 1.1" sensor, 0.153x, WD 250 mm, C-mount, 25 million pixels resolution 0.153xC-mount1.1"250 mmF5.625 million pixels$2,939.00 Ships in 2-3 weeks
LS-TCL-2993Bi-telecentric lens for 1.1" sensor, 0.172x, WD 230 mm, C-mount, 25 million pixels resolution 0.172xC-mount1.1"230 mmF5.625 million pixels$2,699.00 Ships in 2-3 weeks
LS-TCL-2994Bi-telecentric lens for 1.1" sensor, 0.2x, WD 250 mm, C-mount, 25 million pixels resolution 0.2xC-mount1.1"250 mmF1025 million pixels$2,439.00 Ships in 2-3 weeks
LS-TCL-2986Bi-telecentric lens for 1.1" sensor, 0.22x, WD 200 mm, C-mount, 25 million pixels resolution 0.22xC-mount1.1"200 mmF5.325 million pixels$2,289.00 Ships in 2-3 weeks
LS-TCL-2992Bi-telecentric lens for 1.1" sensor, 0.25x, WD 230 mm, C-mount, 25 million pixels resolution 0.25xC-mount1.1"230 mmF625 million pixels$2,109.00 Ships in 2-3 weeks
LS-TCL-2987Bi-telecentric lens for 1.1" sensor, 0.275x, WD 200 mm, C-mount, 25 million pixels resolution 0.275xC-mount1.1"200 mmF625 million pixels$1,989.00 Ships in 2-3 weeks
LS-TCL-2985Bi-telecentric lens for 1.1" sensor, 0.3x, WD 200 mm, C-mount, 25 million pixels resolution 0.3xC-mount1.1"200 mmF625 million pixels$1,889.00 Ships in 2-3 weeks
LS-TCL-2983Bi-telecentric lens for 1.1" sensor, 0.345x, WD 178 mm, C-mount, 25 million pixels resolution 0.345xC-mount1.1"178 mmF625 million pixels$1,749.00 Ships in 2-3 weeks

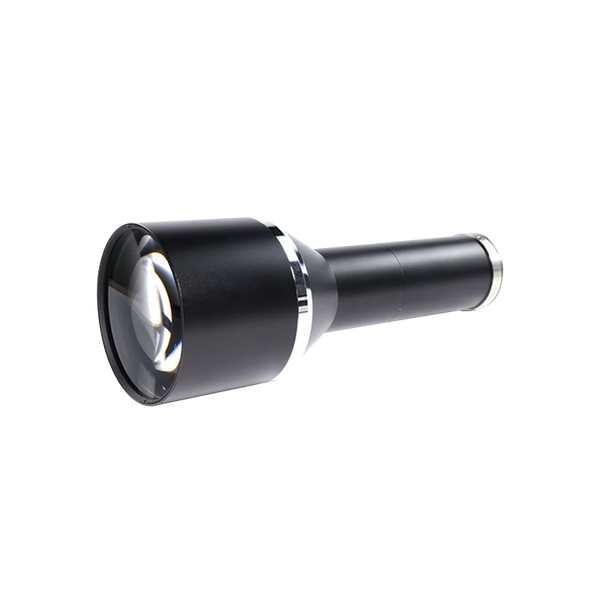

LS-TCL-2982Bi-telecentric lens for 1.1" sensor, 0.4x, WD 178 mm, C-mount, 6 0.4xC-mount1.1"178 mmF625 million pixels$1,619.00 Ships in 2-3 weeks
LS-TCL-2989Bi-telecentric lens for 1.1" sensor, 0.5x, WD 220 mm, C-mount, 25 million pixels resolution 0.5xC-mount1.1"220 mmF825 million pixels$1,459.00 Ships in 2-3 weeks
LS-TCL-2981Bi-telecentric lens for 1.1" sensor, 0.52x, WD 110 mm, C-mount, 25 million pixels resolution 0.52xC-mount1.1"110 mmF625 million pixels$1,429.00 Ships in 2-3 weeks
LS-TCL-2990Bi-telecentric lens for 1.1" sensor, 0.6x, WD 190 mm, C-mount, 25 million pixels resolution 0.6xC-mount1.1"190 mmF825 million pixels$1,349.00 Ships in 2-3 weeks
LS-TCL-2977Bi-telecentric lens for 1.1" sensor, 0.7x, WD 110 mm, C-mount, F7.5 0.7xC-mount1.1"110 mmF7.525 million pixels$1,269.00 Ships in 2-3 weeks
LS-TCL-2991Bi-telecentric lens for 1.1" sensor, 0.8x, WD 220 mm, C-mount, 25 million pixels resolution 0.8xC-mount1.1"220 mmF825 million pixels$1,209.00 Ships in 2-3 weeks
LS-TCL-2978Bi-telecentric lens for 1.1" sensor, 0.8x, WD 110 mm, C-mount, 25 million pixels resolution 0.8xC-mount1.1"110 mmF625 million pixels$1,209.00 Ships in 2-3 weeks
LS-TCL-2988Bi-telecentric lens for 1.1" sensor, 1x, WD 220 mm, C-mount, 25 million pixels resolution 1xC-mount1.1"220 mmF8.325 million pixels$1,129.00 Ships in 2-3 weeks
LS-TCL-2976Bi-telecentric lens for 1.1" sensor, 1x, WD 110 mm, C-mount, coaxial, 25 million pixels resolution 1xC-mount1.1"110 mmF725 million pixels$1,129.00 Ships in 2-3 weeks
LS-TCL-2975Bi-telecentric lens for 1.1" sensor, 1x, WD 110 mm, C-mount, non-coaxial, 25 million pixels resolution 1xC-mount1.1"110 mmF725 million pixels$1,129.00 Ships in 2-3 weeks
LS-TCL-2979Bi-telecentric lens for 1.1" sensor, 1.5x, WD 110 mm, C-mount, 11-75 1.5xC-mount1.1"110 mmF11-7525 million pixels$1,469.00 Ships in 2-3 weeks
LS-TCL-2790Bi-telecentric lens for 39 mm cameras, 0.163x, WD 410 mm 0.163xF-mountAPS-H410±5 mm--From $6,679.00Quote Ships in 2-3 weeks
LS-TCL-2788Bi-telecentric lens for 39 mm cameras, 0.23x, WD 318 mm 0.230xF-mountAPS-H318±4 mm--From $4,839.00 Ships in 2-3 weeks
LS-TCL-2787Bi-telecentric lens for 39 mm cameras, 0.261x, WD 301 mm 0.261xF-mountAPS-H301±4 mm--From $4,379.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
