Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

793-816 of 1422 models

Products

Compare
LS-TCL-2692Bi-telecentric lens for 2/3" cameras, 0.132x, WD 229 mm, C-mount, FOV 80 mm 0.132xC-mount2/3"229 mm80 mm$2,639.00 Ships in 2-3 weeks
LS-TCL-2691Bi-telecentric lens for 2/3" cameras, 0.132x, WD 229 mm, C-mount 0.132xC-mount2/3"229±2 mm64.1x53.7 mm$2,759.00 Ships in 2-3 weeks
LS-TCL-2690Bi-telecentric lens for 2/3" cameras, 0.147x, WD 178 mm, C-mount 0.147xC-mount2/3"178±2 mm57.2x47.9 mm$2,579.00 Ships in 2-3 weeks
LS-TCL-2689Bi-telecentric lens for 2/3" cameras, 0.165x, WD 159 mm, C-mount 0.165xC-mount2/3"159±2 mm51.3x43.0 mm$2,329.00 Ships in 2-3 weeks

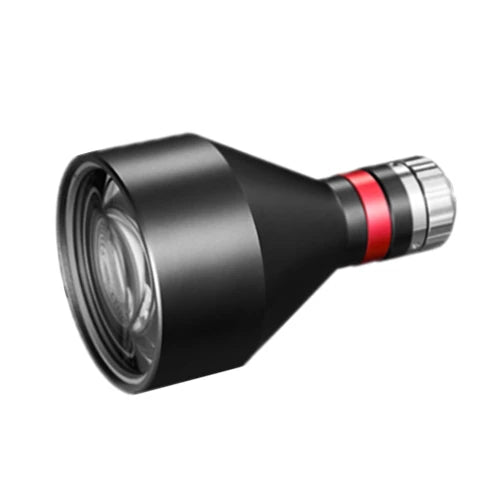

LS-TCL-2688Bi-telecentric lens for 2/3" cameras, 0.166x, WD 187 mm, C-mount 0.166xC-mount2/3"187±2 mm51.0x42.7 mm$2,319.00 Ships in 2-3 weeks
LS-TCL-2687Bi-telecentric lens for 2/3" cameras, 0.19x, WD 138 mm, C-mount 0.190xC-mount2/3"138±2 mm44.5x37.2 mm$2,139.00 Ships in 2-3 weeks
LS-TCL-2685Bi-telecentric lens for 2/3" cameras, 0.221x, WD 128 mm, C-mount 0.221xC-mount2/3"128±2 mm38.3x32.1 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-2683Bi-telecentric lens for 2/3" cameras, 0.252x, WD 119 mm, C-mount 0.252xC-mount2/3"119±2 mm33.6x28.1 mm$1,809.00 Ships in 2-3 weeks
LS-TCL-2681Bi-telecentric lens for 2/3" cameras, 0.293x, WD 111 mm, C-mount 0.293xC-mount2/3"111±2 mm28.9x24.2 mm$1,679.00 Ships in 2-3 weeks
LS-TCL-2679Bi-telecentric lens for 2/3" cameras, 0.409x, WD 72 mm, C-mount 0.409xC-mount2/3"72±2 mm20.7x17.3 mm$1,449.00 Ships in 2-3 weeks
LS-TCL-2676Bi-telecentric lens for 2" cameras, 0.137x, WD 410 mm 0.137xF-mount2"410±5 mmØ 240 mmFrom $6,669.00Quote Ships in 2-3 weeks
LS-TCL-2674Bi-telecentric lens for 2" cameras, 0.194x, WD 318 mm 0.194xF-mount2"318±4 mm138.8x92.5 mmFrom $4,789.00 Ships in 2-3 weeks
LS-TCL-2673Bi-telecentric lens for 2" cameras, 0.22x, WD 301 mm 0.220xF-mount2"301±4 mmØ 150 mmFrom $4,369.00 Ships in 2-3 weeks
LS-TCL-2672Bi-telecentric lens for 2" cameras, 0.242x, WD 288 mm 0.242xF-mount2"288±4 mm111.2x74.1 mmFrom $4,069.00 Ships in 2-3 weeks
LS-TCL-2670Bi-telecentric lens for 2" cameras, 0.296x, WD 251 mm 0.296xF-mount2"251±3 mm90.9x60.6 mmFrom $3,429.00 Ships in 2-3 weeks
LS-TCL-2668Bi-telecentric lens for 2" cameras, 0.354x, WD 254 mm 0.354xF-mount2"254±3 mm76.0x50.7 mmFrom $2,959.00 Ships in 2-3 weeks
LS-TCL-2665Bi-telecentric lens for 2" cameras, 0.412x, WD 229 mm 0.412xF-mount2"229±2 mmØ 80 mmFrom $2,669.00 Ships in 2-3 weeks
LS-TCL-2664Bi-telecentric lens for 2" cameras, 0.458x, WD 178 mm 0.458xF-mount2"178±2 mmØ 72 mmFrom $2,469.00 Ships in 2-3 weeks
LS-TCL-2663Bi-telecentric lens for 2" cameras, 0.514x, WD 159 mm 0.514xF-mount2"159±2 mm52.3x34.9 mmFrom $2,269.00 Ships in 2-3 weeks
LS-TCL-2662Bi-telecentric lens for 2" cameras, 0.518x, WD 187 mm 0.518xF-mount2"187±2 mmØ 64 mmFrom $2,259.00 Ships in 2-3 weeks
LS-TCL-2661Bi-telecentric lens for 2" cameras, 0.589x, WD 138 mm 0.589xF-mount2"138±2 mmØ 56 mmFrom $2,109.00 Ships in 2-3 weeks
LS-TCL-2659Bi-telecentric lens for 2" cameras, 0.687x, WD 128 mm 0.687xF-mount2"128±2 mmØ 48 mmFrom $1,919.00 Ships in 2-3 weeks
LS-TCL-2657Bi-telecentric lens for 2" cameras, 0.781x, WD 119 mm 0.781xF-mount2"119±2 mmØ 42 mmFrom $1,779.00 Ships in 2-3 weeks
LS-TCL-2656Bi-telecentric lens for 2" cameras, 0.912x, WD 111 mm 0.912xF-mount2"111±2 mm29.5x19.6 mmFrom $1,639.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
