Anti-vibration machine vision lenses

Keep the optical setup stable on a machine

Compare lenses classified for anti-vibration applications. Check the individual mechanical design, focus and iris locking, and any printed shock or vibration rating for the intended installation.

All Machine vision lenses

65 models Configure a systemAll lenses
Anti-vibration machine vision lenses

49-65 of 65 models

Products

Compare

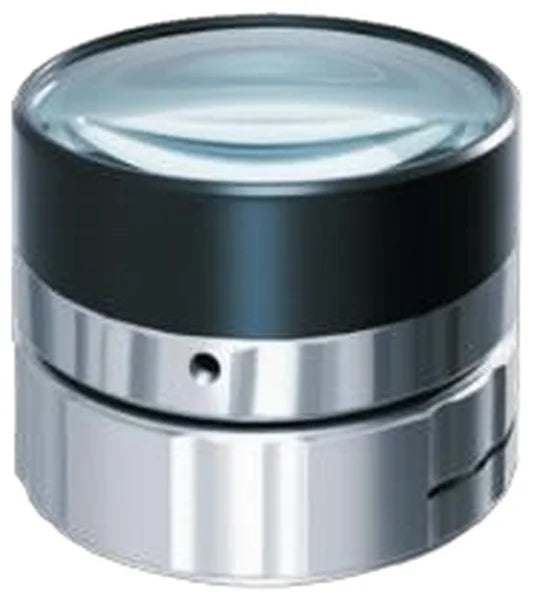

LS-FFL-042925 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.3x, WD 88 mm 25 mm0.3xC-mount1/1.8"F6.5 Fixed iris6.0 Megapixel$269.00 Ships in 2-3 weeks

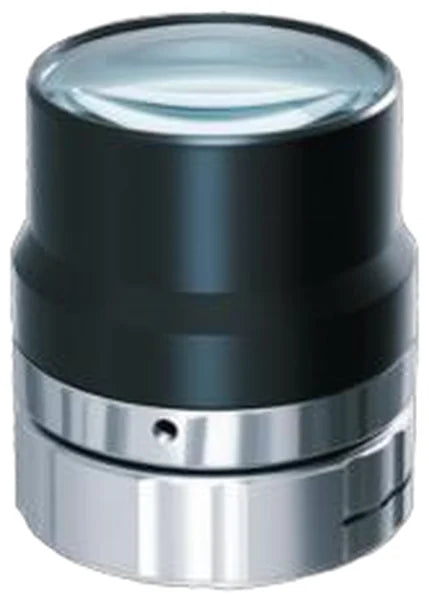

LS-FFL-043625 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.3x, WD 135 mm 25 mm0.3xC-mount1/1.8"F6.0 Fixed iris6.0 Megapixel$269.00 Ships in 2-3 weeks
LS-FFL-043425 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.2x, WD 130 mm 25 mm0.2xC-mount1/1.8"F5.6 Fixed iris6.0 Megapixel$269.00 Ships in 2-3 weeks
LS-FFL-043225 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.1x, WD 252 mm 25 mm0.1xC-mount1/1.8"F5.6 Fixed iris6.0 Megapixel$269.00 Ships in 2-3 weeks

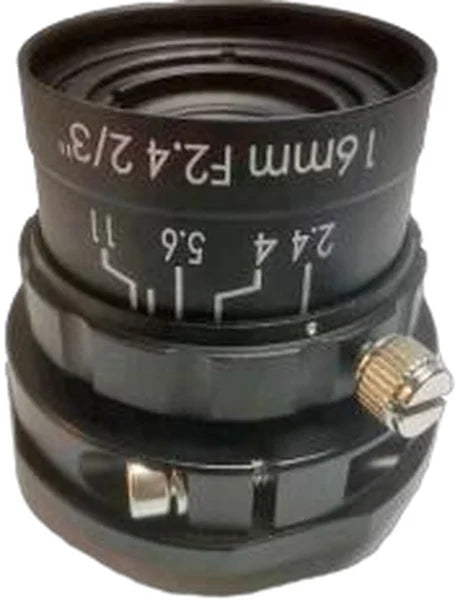

LS-FFL-043716 mm, 2/3", 8 MP, C-mount anti-vibration machine vision lens 16 mm0.011x ~ 0.101xC-mount2/3"F2.4 Manual iris8.0 Megapixel (2.74 μm)$249.00 Ships in 2-3 weeks
LS-FFL-04278 mm, 1.1", 5 MP, C-mount anti-vibration machine vision lens 8 mm-C-mount1.1"F1.4 Manual iris5.0 Megapixel$379.00 Ships in 2-3 weeks
LS-FFL-045150 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens 50 mm-C-mount2/3"F1.4 Manual iris5.0 Megapixel$319.00 Ships in 2-3 weeks
LS-FFL-044650 mm, 2/3", C-mount anti-vibration machine vision lens 50 mm-C-mount2/3"F2.0-$319.00 Ships in 2-3 weeks
LS-FFL-045035 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens 35 mm-C-mount2/3"F1.45.0 Megapixel$289.00 Ships in 2-3 weeks
LS-FFL-044535 mm, 2/3", C-mount anti-vibration machine vision lens 35 mm-C-mount2/3"F1.6-$289.00 Ships in 2-3 weeks
LS-FFL-044925 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens 25 mm-C-mount2/3"F1.4 Manual iris5.0 Megapixel$269.00 Ships in 2-3 weeks
LS-FFL-044425 mm, 2/3", C-mount anti-vibration machine vision lens 25 mm-C-mount2/3"F1.6-$269.00 Ships in 2-3 weeks
LS-FFL-044816 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens 16 mm-C-mount2/3"F1.4 Manual iris5.0 Megapixel$249.00 Ships in 2-3 weeks
LS-FFL-044316 mm, 2/3", C-mount anti-vibration machine vision lens 16 mm-C-mount2/3"F1.6-$249.00 Ships in 2-3 weeks
LS-FFL-044212 mm, 2/3", C-mount anti-vibration machine vision lens 12 mm-C-mount2/3"F1.6-$239.00 Ships in 2-3 weeks
LS-FFL-04474 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens 4 mm-C-mount2/3"F2.85 MP$299.00 Ships in 2-3 weeks
LS-FFL-04418 mm, 2/3", C-mount anti-vibration machine vision lens 8 mm-C-mount2/3"F1.6-$239.00 Ships in 2-3 weeks

Keep the optical setup stable on a machine

A lens on moving equipment must retain its optical adjustment as well as produce a suitable image. This selection groups the catalog anti-vibration class. The individual drawings and specifications remain the basis for deciding whether a particular model is suitable for your machine and mounting arrangement.

  • Inspect the focus and aperture adjustment and how each setting is secured. Confirm the actual locking method on the model rather than assuming every design is the same.
  • Check any published environmental, shock and vibration limits against the installation. A category label does not replace a model-specific rating or a mechanical test.
  • Allow for a rigid camera bracket, cable strain relief and lens support where required; then verify focus and field of view after the assembly is mounted.

Configure a system · Browse all Machine vision lenses
