1.1-inch telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for 1.1-inch sensors cover an image circle of at least 17.6 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1-inch telecentric lenses · 2/3-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses

379 models Configure a systemAll lenses
1.1-inch telecentric lenses

121-144 of 379 models

Products

Compare
LS-TCL-0602Object-side telecentric lens, 1x, 110 mm WD, 1.1", coaxial light port 1xC-mount1.1"110 mmF7$739.00 Ships in 2-3 weeks
LS-TCL-0638Object-side telecentric lens, 1.3x, 98 mm WD, 1.1" 1.3xC-mount1.1"98 mmF8.4$709.00 Ships in 2-3 weeks
LS-TCL-0637Object-side telecentric lens, 1.2x, 102 mm WD, 1.1" 1.2xC-mount1.1"102 mmF9$709.00 Ships in 2-3 weeks
LS-TCL-0581Fixed-magnification lens, 0.8x, 421 mm WD, 1.1" 0.8xC-mount1.1"421 mmF9$689.00 Ships in 2-3 weeks
LS-TCL-0568Fixed-magnification lens, 1x, 375 mm WD, 1.1" 1xC-mount1.1"375 mmF9.5$689.00 Ships in 2-3 weeks
LS-TCL-0603Object-side telecentric lens, 1x, 180 mm WD, 1.1", coaxial light port 1xC-mount1.1"180 mmF8$689.00 Ships in 2-3 weeks
LS-TCL-0659Fixed-magnification lens, 1x, 370 mm WD, 1.1" 1xC-mount1.1"370 mmF25$689.00 Ships in 2-3 weeks
LS-TCL-0567Fixed-magnification lens, 1x, 221 mm WD, 1.1" 1xC-mount1.1"221 mmF9$659.00 Ships in 2-3 weeks
LS-TCL-0642Object-side telecentric lens, 2.5x, 100 mm WD, 1.1" 2.5xC-mount1.1"100 mmF13.4$629.00 Ships in 2-3 weeks
LS-TCL-0639Object-side telecentric lens, 1.5x, 110 mm WD, 1.1" 1.5xC-mount1.1"110 mmF10$629.00 Ships in 2-3 weeks

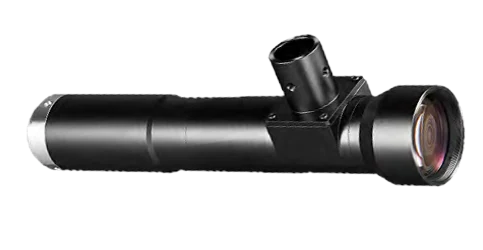

LS-TCL-0605Object-side telecentric lens, 2x, 110 mm WD, 1.1", coaxial light port 2xC-mount1.1"110 mmF13.5$609.00 Ships in 2-3 weeks

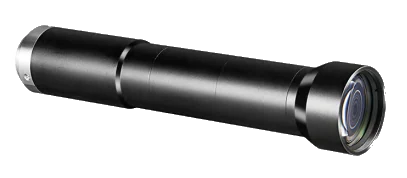

LS-TCL-0604Object-side telecentric lens, 2x, 110 mm WD, 1.1" 2xC-mount1.1"110 mmF13.5$609.00 Ships in 2-3 weeks
LS-TCL-0611Object-side telecentric lens, 4x, 100 mm WD, 1.1" 4xC-mount1.1"100 mmF26.5$599.00 Ships in 2-3 weeks
LS-TCL-0612Object-side telecentric lens, 4x, 100 mm WD, 1.1", coaxial light port 4xC-mount1.1"100 mmF26.5$599.00 Ships in 2-3 weeks
LS-TCL-0614Object-side telecentric lens, 4x, 108 mm WD, 1.1", coaxial light port 4xC-mount1.1"108 mmF20$599.00 Ships in 2-3 weeks
LS-TCL-0613Object-side telecentric lens, 4x, 108 mm WD, 1.1" 4xC-mount1.1"108 mmF20$599.00 Ships in 2-3 weeks
LS-TCL-0620Object-side telecentric lens, 5x, 102 mm WD, 1.1" 5xC-mount1.1"102 mmF25$589.00 Ships in 2-3 weeks
LS-TCL-0628Object-side telecentric lens, 6x, 108 mm WD, 1.1" 6xC-mount1.1"108 mmF29.7$589.00 Ships in 2-3 weeks
LS-TCL-0607Object-side telecentric lens, 3x, 110 mm WD, 1.1", coaxial light port 3xC-mount1.1"110 mmF20.1$589.00 Ships in 2-3 weeks
LS-TCL-0606Object-side telecentric lens, 3x, 110 mm WD, 1.1" 3xC-mount1.1"110 mmF20.1$589.00 Ships in 2-3 weeks
LS-TCL-0631Object-side telecentric lens, 8x, 108 mm WD, 1.1", coaxial light port 8xC-mount1.1"108 mmF40.4$579.00 Ships in 2-3 weeks
LS-TCL-0636Object-side telecentric lens, 10x, 108 mm WD, 1.1", coaxial light port 10xC-mount1.1"108 mmF52.5$569.00 Ships in 2-3 weeks
LS-TCL-0532Bi-telecentric lens, 0.085x, 372 mm WD, 1.1" 0.085xC-mount1.1"372 mmF6.2$3,679.00Quote Ships in 2-3 weeks
LS-TCL-0534Bi-telecentric lens, 0.108x, 318 mm WD, 1.1" 0.108xC-mount1.1"318 mmF6.2$3,049.00Quote Ships in 2-3 weeks
