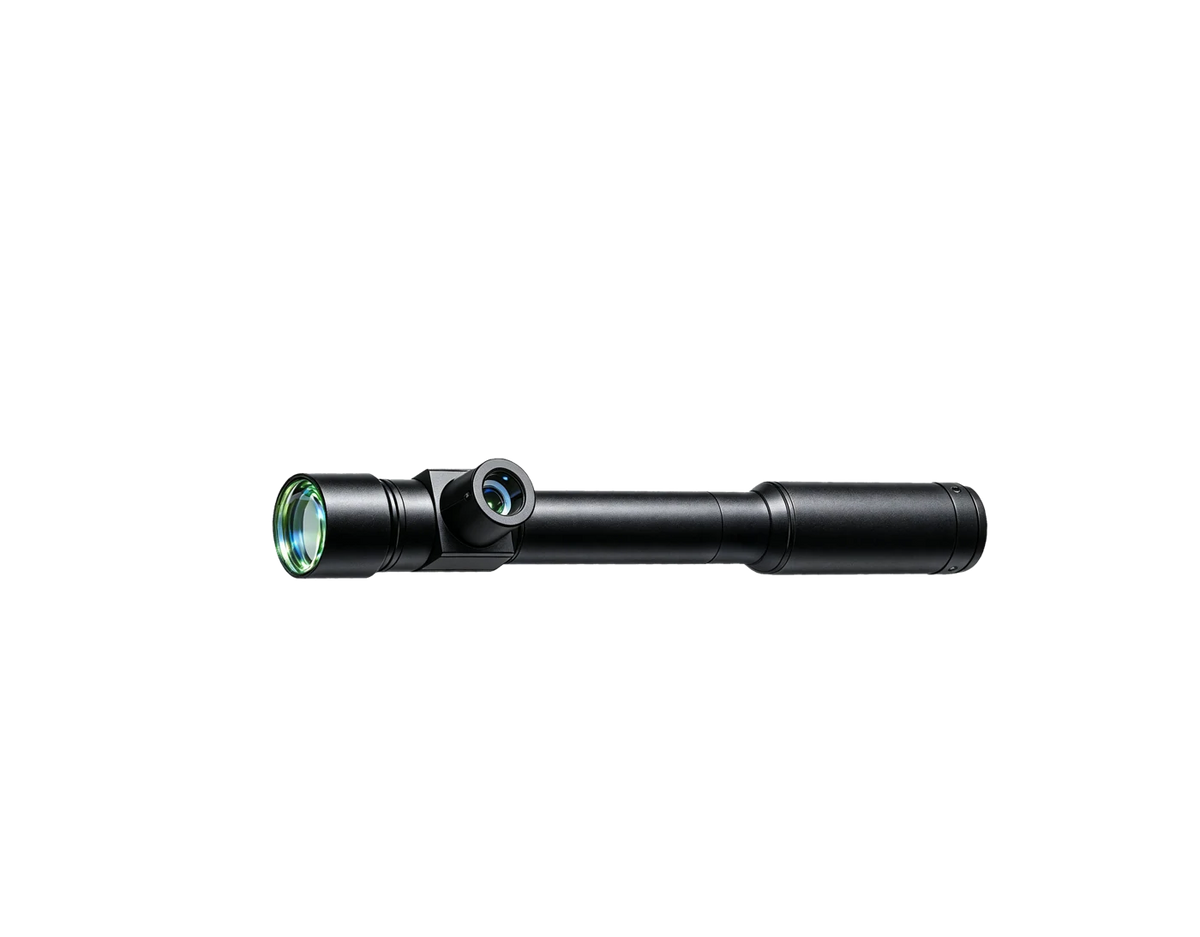

Object-Side Telecentric Lens, 10x, 108 mm WD, 1.1", coaxial light port (LS-TCL-0636)
  • Object-Side Telecentric Lens, 10x, 108 mm WD, 1.1", coaxial light port (LS-TCL-0636)

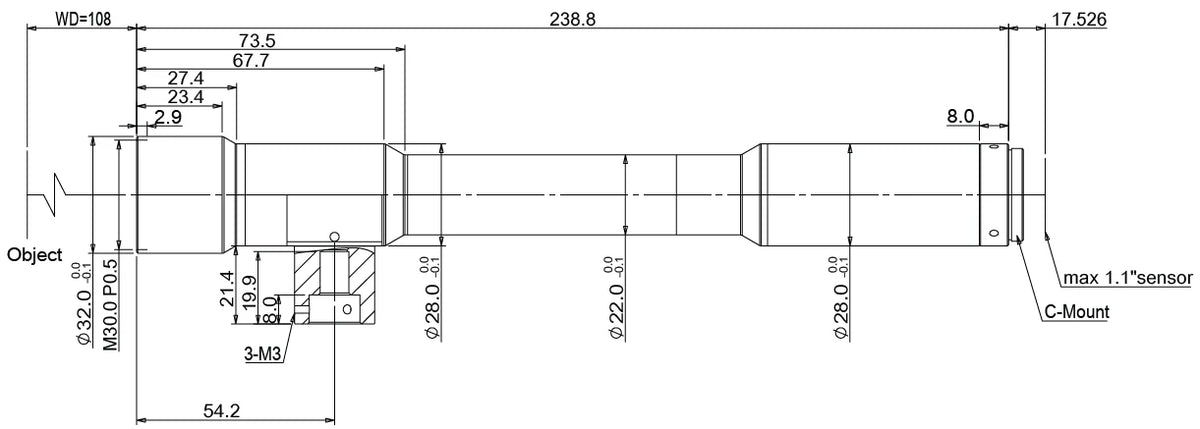

  • LS-TCL-0636 dimensions (mm)

Telecentric lenses

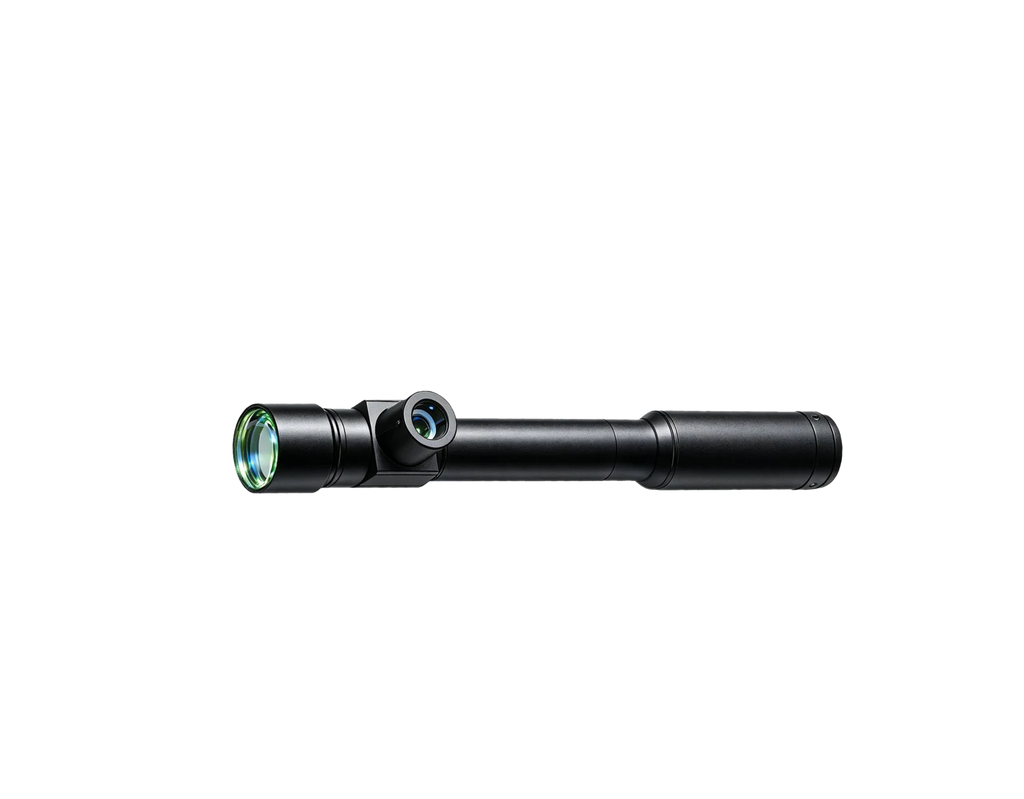

Object-Side Telecentric Lens, 10x, 108 mm WD, 1.1", coaxial light port (LS-TCL-0636)

Model LS-TCL-0636

  • Magnification10
  • MountC-mount
  • Sensor1.1"
  • Working distance108 mm
  • ApertureF52.5
$569.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Object-Side Telecentric Lens, 10x, 108 mm WD, 1.1", coaxial light port (LS-TCL-0636)LS-TCL-0636

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Object-Side Telecentric Lens, 10x, 108 mm WD, 1.1", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0636

Optics

Magnification10
Working distance108 mm
Image size1.1"
F-numberF52.5
Depth of field0.04 mm
Distortion≤ 0.08%
Object-side resolution3.4 μm
Object-side telecentricity≤ 0.02°
Coaxial lightSupported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension238.8 mm × Φ32 mm
Shipping weight (estimated)0.66 kg
