Spot lights · 3 models · from $139.00

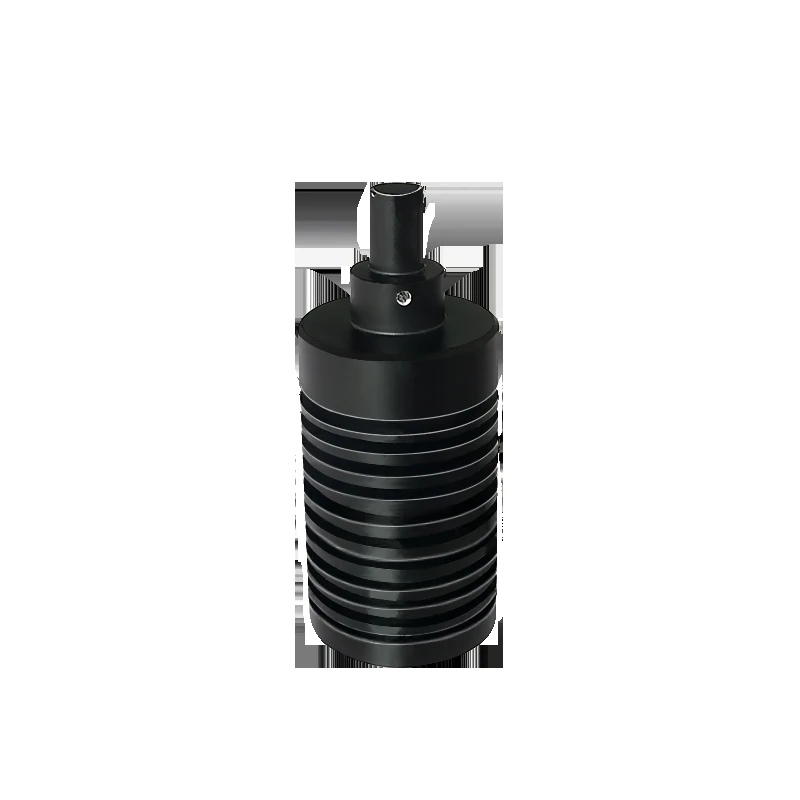

Spot light (SP series)
The Spot light (SP series) is a range of 3 spot lights from LumaSpec Vision, from $139.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 8 mm, 24 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 3 V |
| Connector | 3-pin flat |
Features
- 3 W, 3 V supply
- Finned aluminium heat sink
- Outer diameter and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous outsid diameter: 24mm. Inside diameter: 22mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for micro element detection, LCD panel detection and liquid crystal glass base calibration, etc.
Typical uses
- Micro element detection
- LCD panel detection
- Wafer, liquid crystal glass base calibration
- Chip detection, Mark point positioning
- Vision systems with small installation space
- Mobile phone circuit board Mark point to point detection (with coaxial light lens)
All 3 models in the Spot light (SP series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-SP2.0-0803 | 8 mm | 3 W | $139.00 | 17 in stock | View | |
| LS-SP0803 | 8 mm | 3 W | $139.00 | 10 in stock | View | |
| LS-SP2403 | 24 mm | 3 W | $209.00 | 11 in stock | View |
