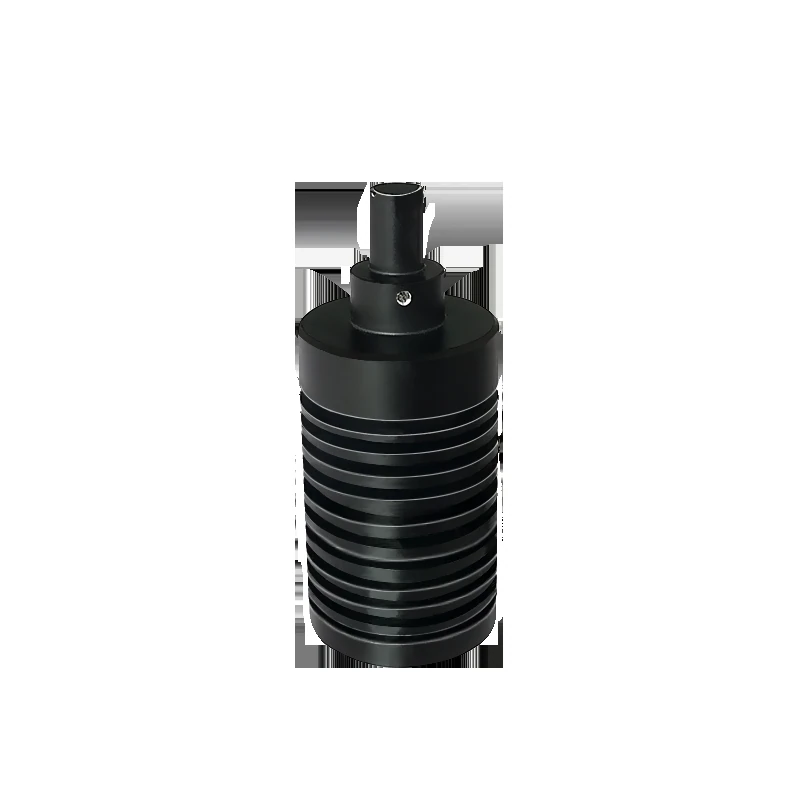

8 mm Spot light (SP series) (LS-SP0803)
Model LS-SP0803
Small high-brightness point (spot) light with a finned heat sink, 3 V / 3 W, for small fields of view with high uniformity requirements; can be used with a coaxial lens.
Features
- 3 W, 3 V supply
- Finned aluminium heat sink
- Outer diameter and height, wavelength/colour temperature, mounting and input wire length customization
Specifications
| Model | LS-SP0803 |
|---|---|
| Voltage | 3 V |
| Power | 3 W |
| LED type | SMD |
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Quality service | one year product warranty, technical support |
| Outside diameter of luminous area (mm) | 08 |
| Inside diameter of luminous area (mm) | 06 |
| Voltage (V) | 3 |
| Power (W) | 3 |
| Outside diameter (mm) | 24 |
| High (mm) | 69 |
| Shipping weight | 0.20 kg |
Applications
- Micro element detection
- LCD panel detection
- Wafer, liquid crystal glass base calibration
- Chip detection, Mark point positioning
- Vision systems with small installation space
- Mobile phone circuit board Mark point to point detection (with coaxial light lens)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
