M12 board lenses · 6 models · from $49.00

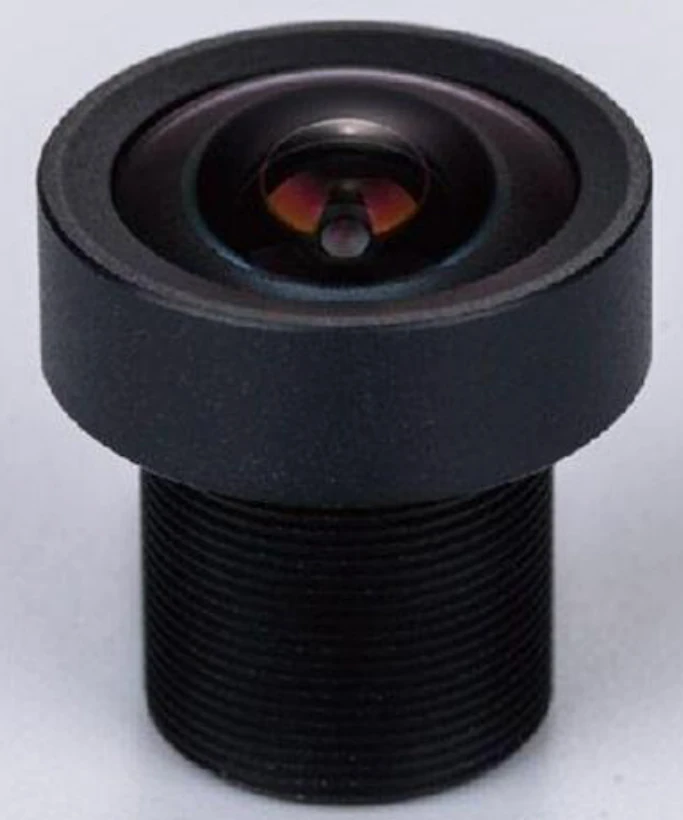

5MP S-mount low distortion board lens
The 5MP S-mount low distortion board lens is a range of 6 m12 board lenses from LumaSpec Vision, from $49.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 3.37 mm, 1/2", 6 mm, 1/1.8", 8 mm, 1/1.8", 12 mm, 1/1.8", 16 mm, 1/1.8", 25 mm, 1/1.8" |
|---|---|
| Mount | M12 |
| Resolution | 5 MP |
| Image circle | Up to 8 mm, 8-11 mm |
| Focal length | Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm |
| Sensor format | 1/2", 1/1.8" - 1/1.56" |
Features
- Ultra-low distortion, <0.1%, 5MP
- Compact design
- Excellent optical performance, high brightness at the edge
- Suitable for industrial inspection, barcode scanning, monitoring, video conference, sports camera, etc.
- EFL range from 3.37mm to 25mm
- M12xP0.5 Mount
Typical uses
- Industrial: blemish / stain - detect defects and blemishes on steel plate
- Electronic component: yes / no - check the number of tiny chips and poor imprint
- Electronic component: blemish / stain - detect camera defects
- Electronic equipment: yes / no - detect poor binding and lead breakage of motor wires
All 6 models in the 5MP S-mount low distortion board lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-FS0305A | 3.37 mm, 1/2" | $49.00 | 3 in stock | View |
| LS-FS0605A | 6 mm, 1/1.8" | $49.00 | 3 in stock | View |
| LS-FS0805A | 8 mm, 1/1.8" | $49.00 | 4 in stock | View |
| LS-FS1205A | 12 mm, 1/1.8" | $49.00 | 2 in stock | View |
| LS-FS1605A | 16 mm, 1/1.8" | $49.00 | 2 in stock | View |
| LS-FS2505A | 25 mm, 1/1.8" | $49.00 | 5 in stock | View |
