M12 board lenses · 8 models · from $39.00

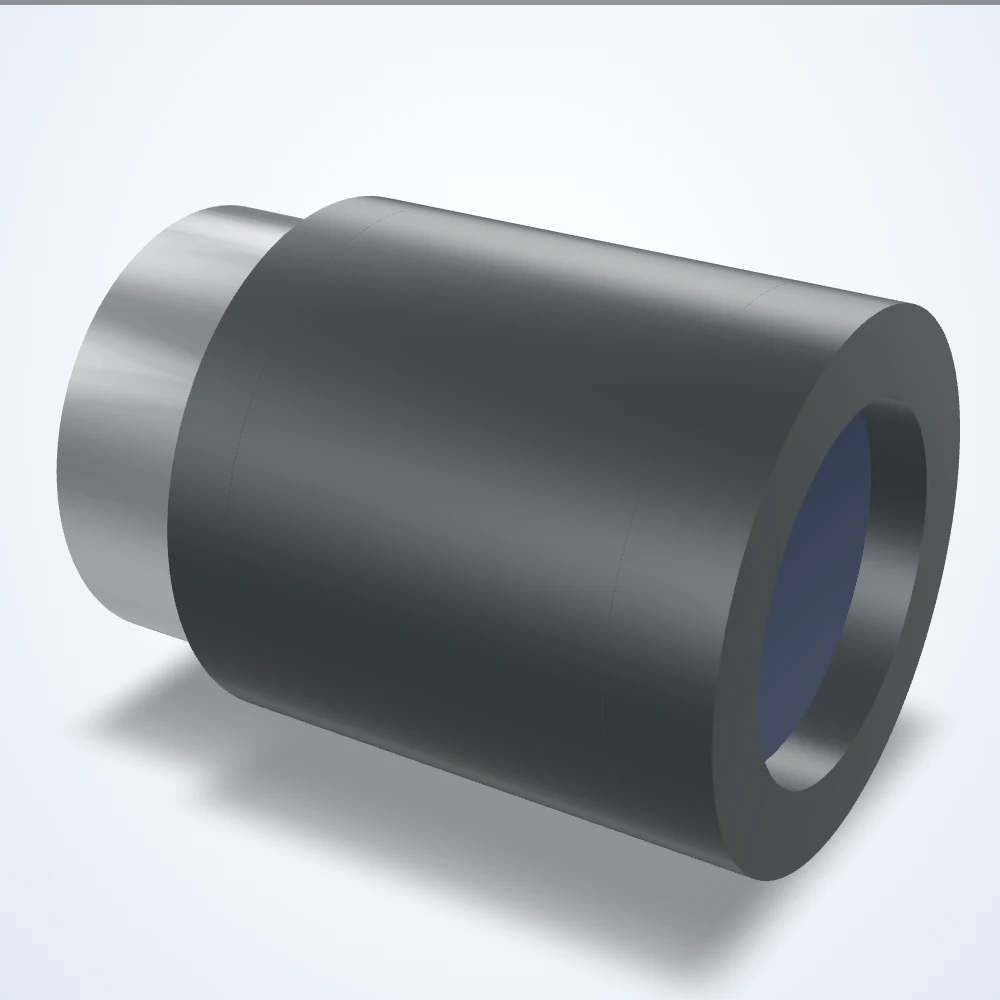

M12 board lens, S mount
The M12 board lens, S mount is a range of 8 m12 board lenses from LumaSpec Vision, from $39.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 4 mm, 1/1.8", M12-mount, 5.4 mm, 1/2.3", M12-mount, 5.5 mm, 1/1.8", M12-mount, 14 mm, 1/1.7", M12-mount, 22 mm, 1/1.8", M12-mount, 25 mm, 1/2", M12-mount, 35 mm, 1/2", M12-mount, 50 mm, 1/2", M12-mount |
|---|---|
| Mount | M12 |
| Resolution | Up to 3 MP, 5 MP, 6-10 MP, 12 MP |
| Image circle | Up to 8 mm, 8-11 mm |
| Focal length | Under 6 mm, 12-25 mm, 25-50 mm, 50-100 mm |
| Sensor format | 1/2", 1/1.8" - 1/1.56" |
All 8 models in the M12 board lens, S mount
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-SND1428-12MF | 14 mm, 1/1.7", M12-mount | $39.00 | 3 in stock | View |
| LS-SND2228-12MF | 22 mm, 1/1.8", M12-mount | $39.00 | 2 in stock | View |
| LS-SND5518IR-5M | 5.5 mm, 1/1.8", M12-mount | $39.00 | 5 in stock | View |
| LS-SND0418IR-2MF | 4 mm, 1/1.8", M12-mount | $39.00 | 2 in stock | View |
| LS-S12BF2524IR-5M | 25 mm, 1/2", M12-mount | $39.00 | 3 in stock | View |
| LS-S12BF3525IR-5M | 35 mm, 1/2", M12-mount | $39.00 | 5 in stock | View |
| LS-S12BF5020IR-5M | 50 mm, 1/2", M12-mount | $39.00 | 4 in stock | View |
| LS-SBD5425IR-10ML | 5.4 mm, 1/2.3", M12-mount | $39.00 | 5 in stock | View |
