Home / Lenses / CCTV lenses / Fixed CCTV lenses

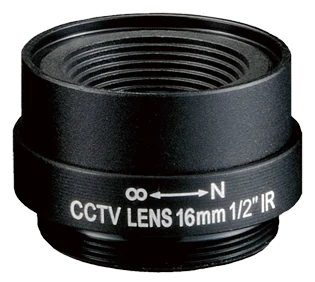

Fixed CCTV lenses

CCTV lenses · 20 models · from $39.00

Fixed CCTV lenses

The Fixed CCTV lenses is a range of 20 cctv lenses from LumaSpec Vision, from $39.00. It comes in 18 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions2.1 mm, 1/2.7", 3 MP, CS-mount, 2.5 mm, 1/2.7", 3 MP, CS-mount, 2.8 mm, 1/1.8", 10 MP, CS-mount, 2.8 mm, 1/2.7", 3 MP, CS-mount, 2.95 mm, 1/1.8", 5 MP, CS-mount, 3.2 mm, 1/1.7", 12 MP, CS-mount, 4 mm, 1/2.7", 5 MP, CS-mount, 5 mm, 1/1.7", 12 MP, CS-mount, 6 mm, 1/1.8", 3 MP, CS-mount, 6 mm, 1/2", 3 MP, CS-mount, 6 mm, 1/2.5", 5 MP, CS-mount, 8 mm, 1/1.7", 12 MP, CS-mount, 8 mm, 1/2.5", 5 MP, CS-mount, 12 mm, 1/1.8", 5 MP, CS-mount, 12 mm, 1/2.5", 5 MP, CS-mount, 16 mm, 1/2", 5 MP, CS-mount and 2 more
TypeCCTV fixed
MountC-mount, CS-mount
ResolutionUp to 3 MP, 5 MP, 6-10 MP, 12 MP
Image circleUp to 8 mm, 8-11 mm, 11-16 mm
Focal lengthUnder 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 100 mm +
Sensor format1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 1"

Features

  • High resolution: 5 megapixel, covers 5 MP, 3 MP and 1080P
  • IR correction: 24 h day and night vision
  • Large format: 1/2" covers 1/2", 1/2.5" and 1/2.7" cameras
  • Low distortion: suits special industrial cases
  • Large format: 1/1.8" covers 1/1.8", 1/2" and 1/2.5" cameras
  • High resolution: 5 megapixel, covers 3 MP and 1080P
  • Large FOV for wide-area surveillance
  • 10 megapixel resolution, covers 4K and 1080P

Typical uses

  • Banks
  • Offices
  • Rooms
  • Corridors
  • Buildings
  • Gardens

All 20 models in the Fixed CCTV lenses

ModelSizePriceAvailabilityLink
LS-S12FC1620IR-5M16 mm, 1/2", 5 MP, CS-mount $39.00 3 in stockView
LS-S18FC1218IR-5M12 mm, 1/1.8", 5 MP, CS-mount $39.00 3 in stockView
LS-S18FC2920IR-5M2.95 mm, 1/1.8", 5 MP, CS-mount $39.00 4 in stockView
LS-S1FCD17044-10M170 mm, 1", 10 MP, C-mount $39.00 4 in stockView
LS-SFC0420IR-5M4 mm, 1/2.7", 5 MP, CS-mount $39.00 4 in stockView
LS-SFC0520IR-12M5 mm, 1/1.7", 12 MP, CS-mount $39.00 4 in stockView
LS-SFC0612IR-3M6 mm, 1/2", 3 MP, CS-mount $39.00 3 in stockView
LS-SFC0618IR-3M6 mm, 1/1.8", 3 MP, CS-mount $39.00 3 in stockView
LS-SFC0620IR-5M6 mm, 1/2.5", 5 MP, CS-mount $39.00 4 in stockView
LS-SFC0818IR-12M8 mm, 1/1.7", 12 MP, CS-mount $39.00 3 in stockView
LS-SFC0820IR-5M8 mm, 1/2.5", 5 MP, CS-mount $39.00 2 in stockView
LS-SFC1220IR-5M12 mm, 1/2.5", 5 MP, CS-mount $39.00 3 in stockView
LS-SFC1620IR-5M16 mm, 1/2", 5 MP, CS-mount $39.00 3 in stockView
LS-SFC2125IR-3M2.1 mm, 1/2.7", 3 MP, CS-mount $39.00 3 in stockView
LS-SFC2512IR-3M2.5 mm, 1/2.7", 3 MP, CS-mount $39.00 4 in stockView
LS-SFC2524IR-5M25 mm, 1/2", 5 MP, CS-mount $39.00 3 in stockView
LS-SFC2814IR-3M2.8 mm, 1/2.7", 3 MP, CS-mount $39.00 5 in stockView
LS-SFC2816-10M2.8 mm, 1/1.8", 10 MP, CS-mount $39.00 2 in stockView
LS-SFC2826IR-3M2.8 mm, 1/2.7", 3 MP, CS-mount $39.00 4 in stockView
LS-SFC3220IR-12M3.2 mm, 1/1.7", 12 MP, CS-mount $39.00 3 in stockView
