CCTV lenses

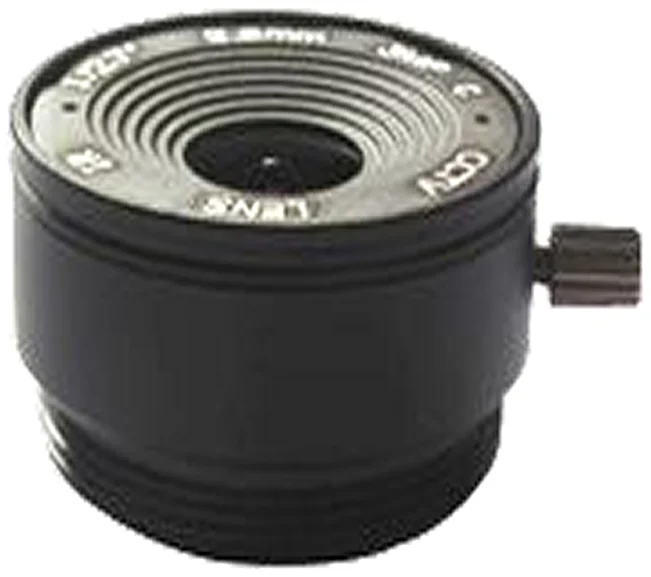

2.8 mm, 1/2.7", 3 MP, CS-mount Fixed CCTV Lens (LS-SFC2826IR-3M)
Model LS-SFC2826IR-3M
2.8 mm, 1/2.7", 3 MP, CS-mount Fixed CCTV Lens. 2.8 mm 1/2.7" 3 MP CS-mount IR fixed lens, F2.6. At a glance: focal length 2.8 mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F2.6 Fixed iris; mount CS.
Features
- 3.0 megapixel
- 1/2.7" large sensor format
- CS mount
- Wide field of view
Specifications
| Model | LS-SFC2826IR-3M |
|---|---|
| Resolution | 3.0 Megapixel |
| IR correction | IR |
| Format | 1/2.7" |
| Focal length | 2.8 mm |
| Aperture | F2.6 Fixed iris |
| Angle of view (1/2.7") | 140 x 125 x 88 deg |
| Angle of view (1/3") | 112 x 100 x 70.5 deg |
| Angle of view (1/4") | 84 x 75 x 53 deg |
| M.O.D. | 0.3 m |
| B.F.L. | 5.7 mm |
| T.T.L. | 22.4 mm |
| Size | dia. 28 x 17.6 mm |
| Mount | CS |
| Weight | 25 g |
| Shipping weight (estimated) | 0.14 kg |
Applications
- Industrial use
- General security
