Telecentric lenses
1x, WD 300 mm, 1/2", C-mount Telecentric Lens (LS-TCL-1919)
Model LS-TCL-1919
- Magnification1x
- MountC-mount
- Sensor1/2"
- Working distance300 mm
- Aperture21.2
$1,429.00
Ships in 2-3 weeks
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1x, WD 300 mm, 1/2", C-mount Telecentric Lens. At a glance: magnification 1x; working distance 300 mm; max sensor size 8.0 mm (1/2"); object-side resolution 14.5 µm; image-side f/# 21.2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1919 |
|---|
Optics
| Magnification (x) | 1 |
|---|---|
| Working distance (mm) | 300 |
| Image-side F/# | 21.2 |
| Object-side telecentricity (deg max) | <0.1 |
| Image-side distortion (% max) | 0.8 |
| Numerical aperture NA | 0.0231 |
| Object-side resolution (um) | 14.5 |
| Theoretical depth of field (mm) | 1.7 |
| Image-side MTF30 (lp/mm) | 41 |
| Total length TTL (mm) | 205.3 |
Sensor and imaging
| Max sensor size (dia. mm) | 8.0(1/2") |
|---|

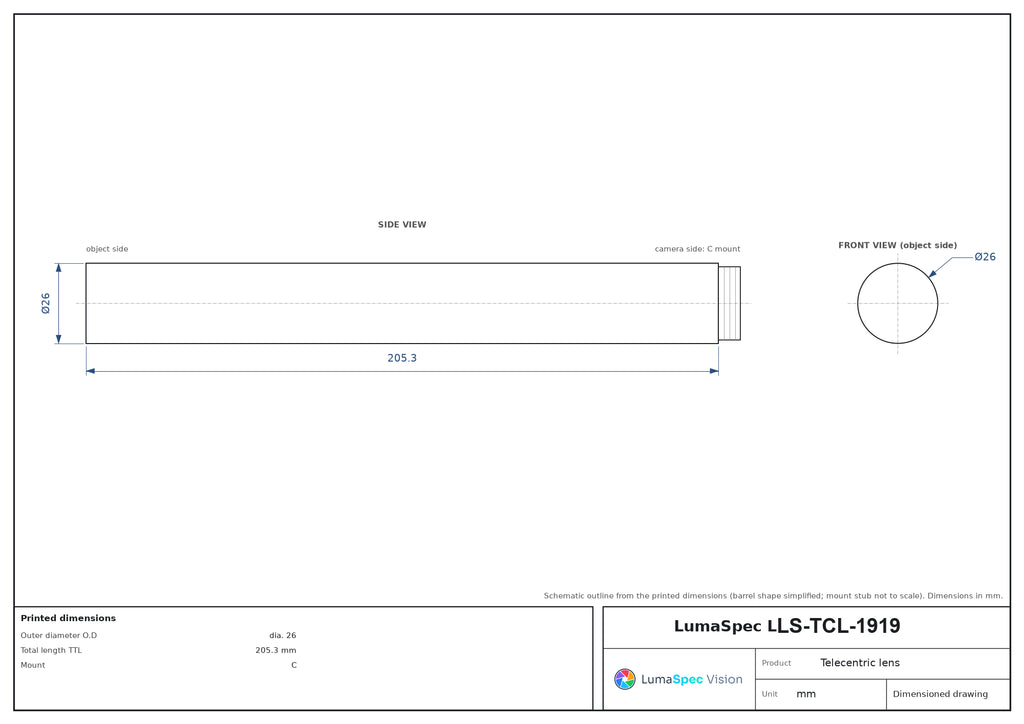

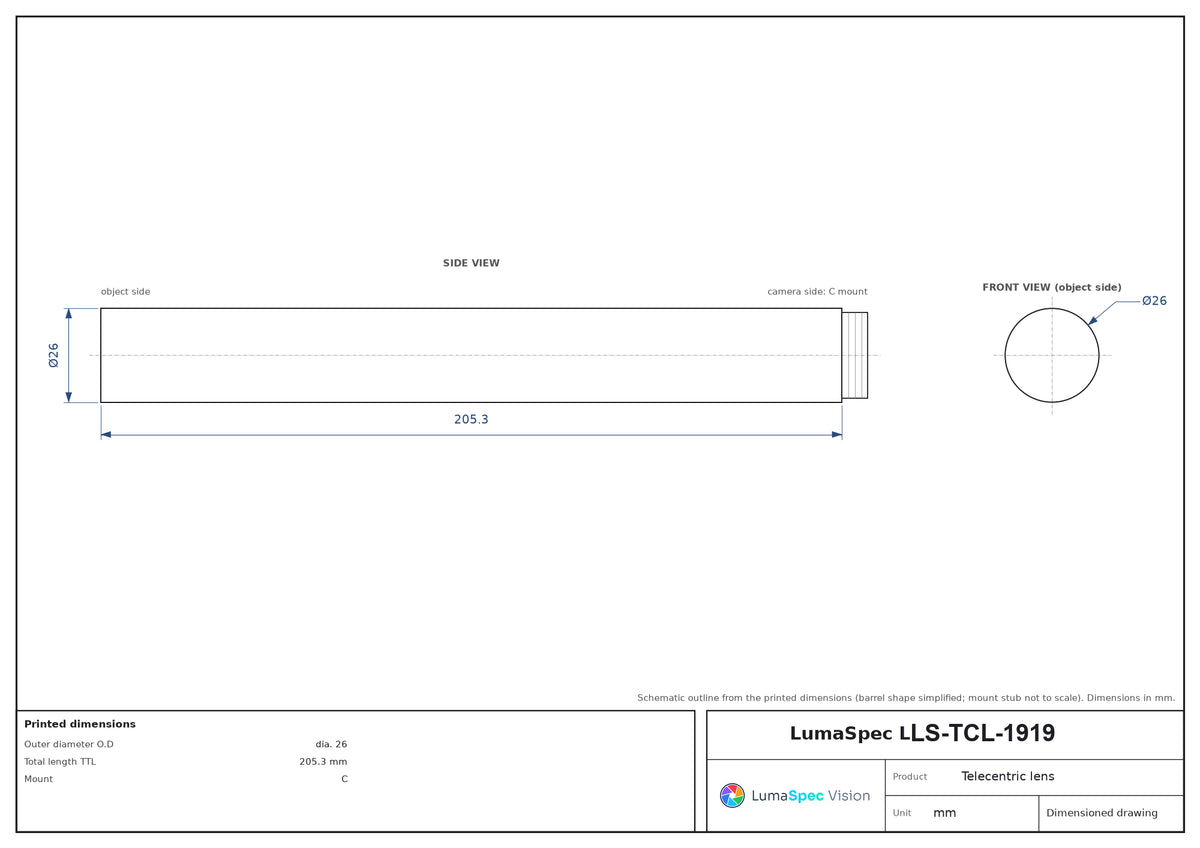

Mechanical
| Mount | C |
|---|---|
| Outer diameter O.D (mm) | dia. 26 |
| Shipping weight (estimated) | 0.55 kg |
Photo shows a representative model of this series; see the specifications for this model.
