Telecentric lenses
0.3x, WD 110 mm, 1/2", C-mount Telecentric Lens (LS-TCL-1920)
Model LS-TCL-1920
- Magnification0.3x
- MountC-mount
- Sensor1/2"
- Working distance110 mm
- Aperture8
$1,419.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.79 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.3x, WD 110 mm, 1/2", C-mount Telecentric Lens. At a glance: magnification 0.3x; working distance 110 mm; max sensor size 8 mm (1/2"); object-side resolution 18 µm; image-side f/# 8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1920 |
|---|
Optics
| Magnification (x) | 0.3 |
|---|---|
| Working distance (mm) | 110 |
| Image-side F/# | 8 |
| Object-side telecentricity (deg max) | 0.08 |
| Image-side distortion (% max) | 0.02 |
| Numerical aperture NA | 0.01862 |
| Object-side resolution (um) | 18 |
| Theoretical depth of field (mm) | 7.1 |
| Image-side MTF30 (lp/mm) | 110 |

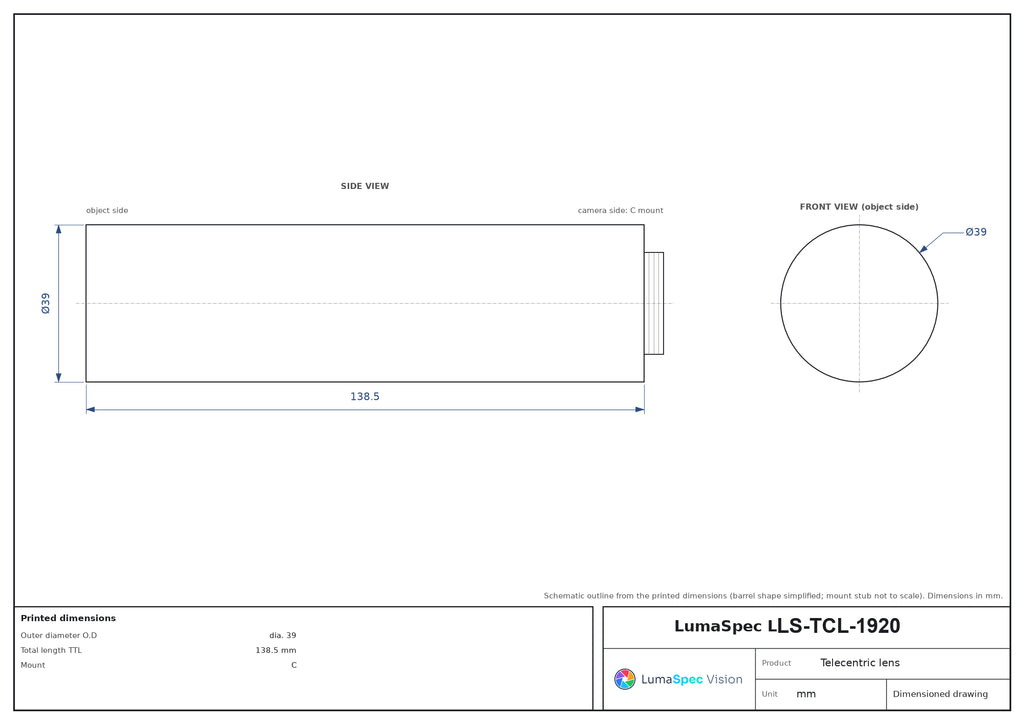

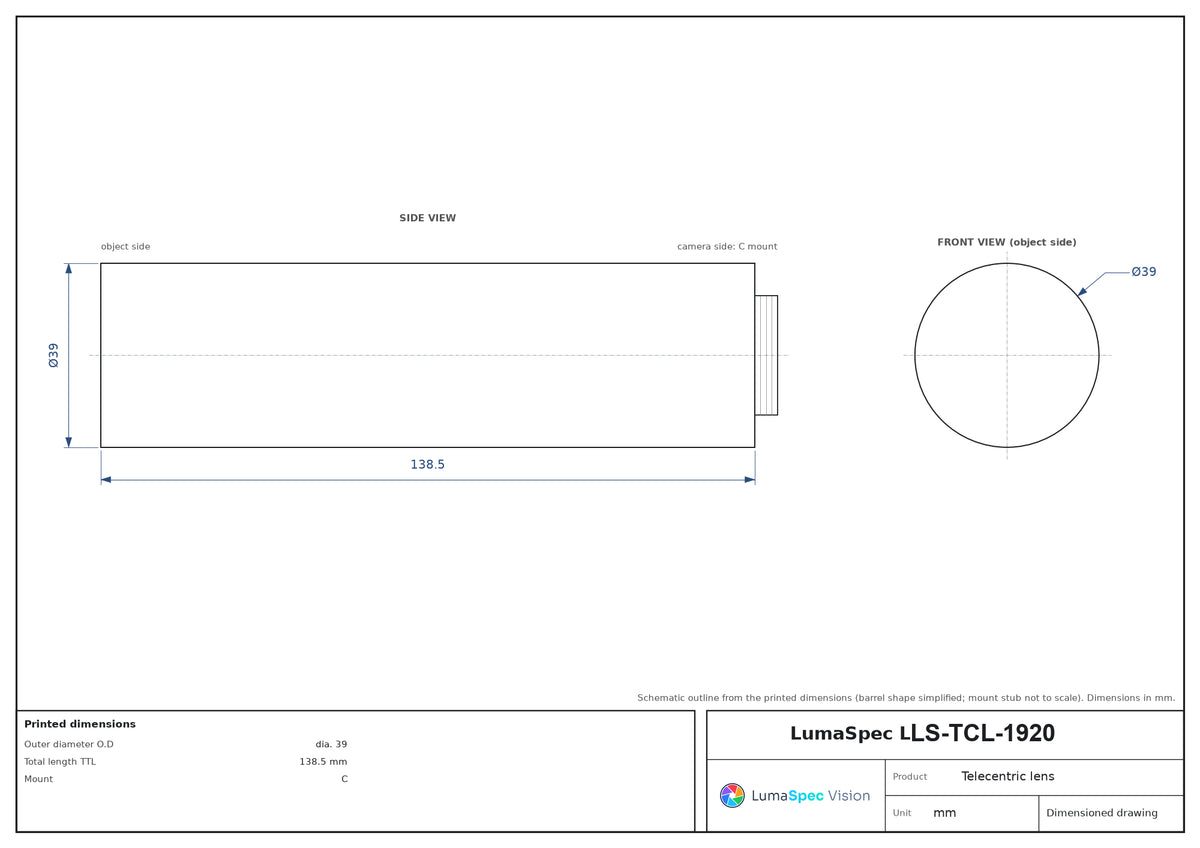

| Total length TTL (mm) | 138.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 8(1/2") |
|---|
Mechanical
| Mount | C |
|---|---|
| Outer diameter O.D (mm) | dia. 39 |
| Shipping weight (estimated) | 0.79 kg |
Photo shows a representative model of this series; see the specifications for this model.
