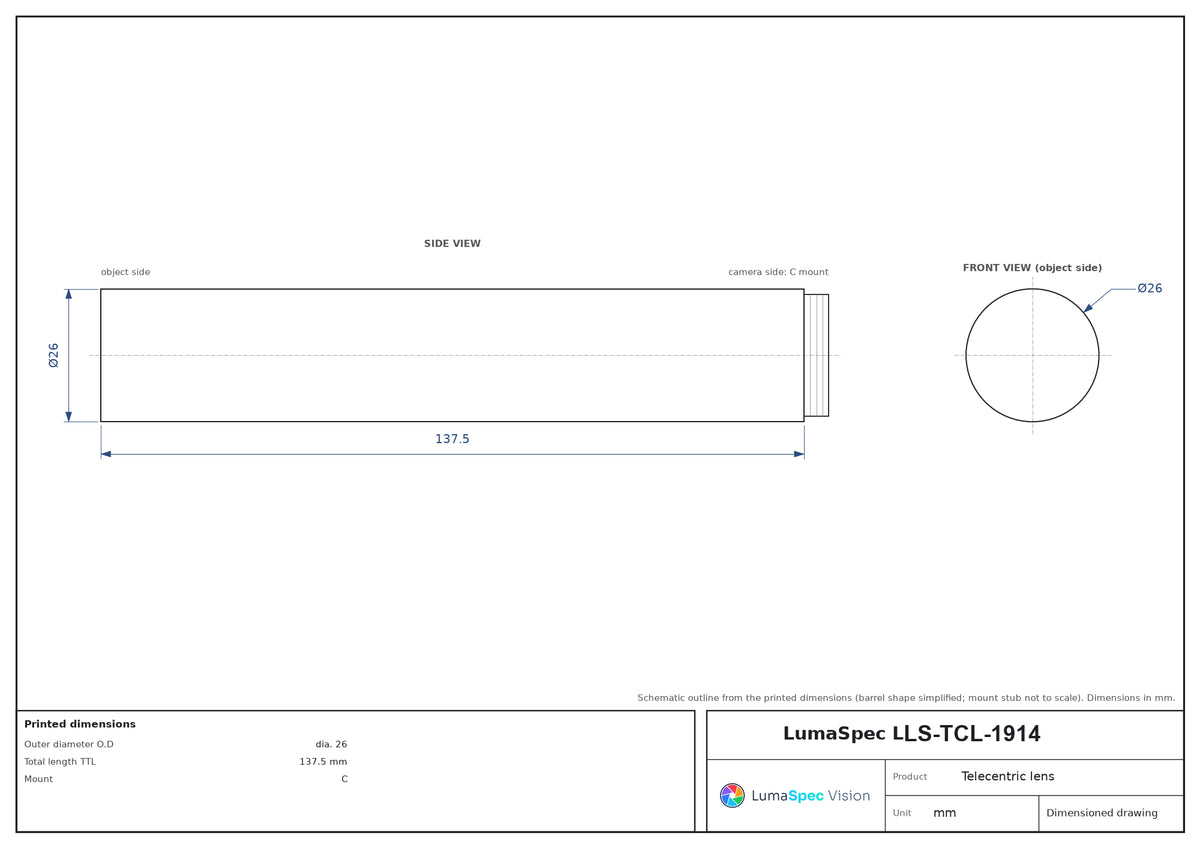

  • LS-TCL-1914 dimensions (mm)

Telecentric lenses

1x, WD 120 mm, 1/2", C-mount Telecentric Lens, length 137.5 mm (LS-TCL-1914)

Model LS-TCL-1914

  • Magnification1.0x
  • MountC-mount
  • Sensor1/2"
  • Working distance120 mm
  • Aperture9.8
$1,429.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.55 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1x, WD 120 mm, 1/2", C-mount Telecentric Lens, length 137.5 mm (LS-TCL-1914)LS-TCL-1914

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1x, WD 120 mm, 1/2", C-mount Telecentric Lens. At a glance: magnification 1.0x; working distance 120 mm; max sensor size 8 mm (1/2"); object-side resolution 6.7 µm; image-side f/# 9.8.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1914

Optics

Magnification (x)1.0
Working distance (mm)120
Image-side F/#9.8
Object-side telecentricity (deg max)Non-telecentric
Image-side distortion (% max)0.4
Numerical aperture NA0.05045
Object-side resolution (um)6.7
Theoretical depth of field (mm)0.8
Image-side MTF30 (lp/mm)50
Total length TTL (mm)137.5

Sensor and imaging

Max sensor size (dia. mm)8(1/2")

Mechanical

MountC
Outer diameter O.D (mm)dia. 26
Shipping weight (estimated)0.55 kg

Photo shows a representative model of this series; see the specifications for this model.
