Telecentric lenses
0.46x, WD 90 mm, 1/3", C-mount Telecentric Lens (LS-TCL-1944)
Model LS-TCL-1944
- Magnification0.46x
- MountC-mount
- Sensor1/3"
- Working distance90 mm
- Aperture10
$1,589.00
Ships in 2-3 weeks
0.61 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.46x, WD 90 mm, 1/3", C-mount Telecentric Lens. At a glance: magnification 0.46x; working distance 90 mm; max sensor size 6.0 mm (1/3"); object-side resolution 14.5 µm; image-side f/# 10.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1944 |
|---|
Optics
| Magnification (x) | 0.46 |
|---|---|
| Working distance (mm) | 90 |
| Image-side F/# | 10 |
| Object-side telecentricity (deg max) | 0.1 |
| Image-side distortion (% max) | 0.2 |
| Numerical aperture NA | 0.02307 |
| Object-side resolution (um) | 14.5 |
| Theoretical depth of field (mm) | 3.8 |
| Image-side MTF30 (lp/mm) | 78 |
| Total length TTL (mm) | 81.7 |
Sensor and imaging
| Max sensor size (dia. mm) | 6.0(1/3") |
|---|

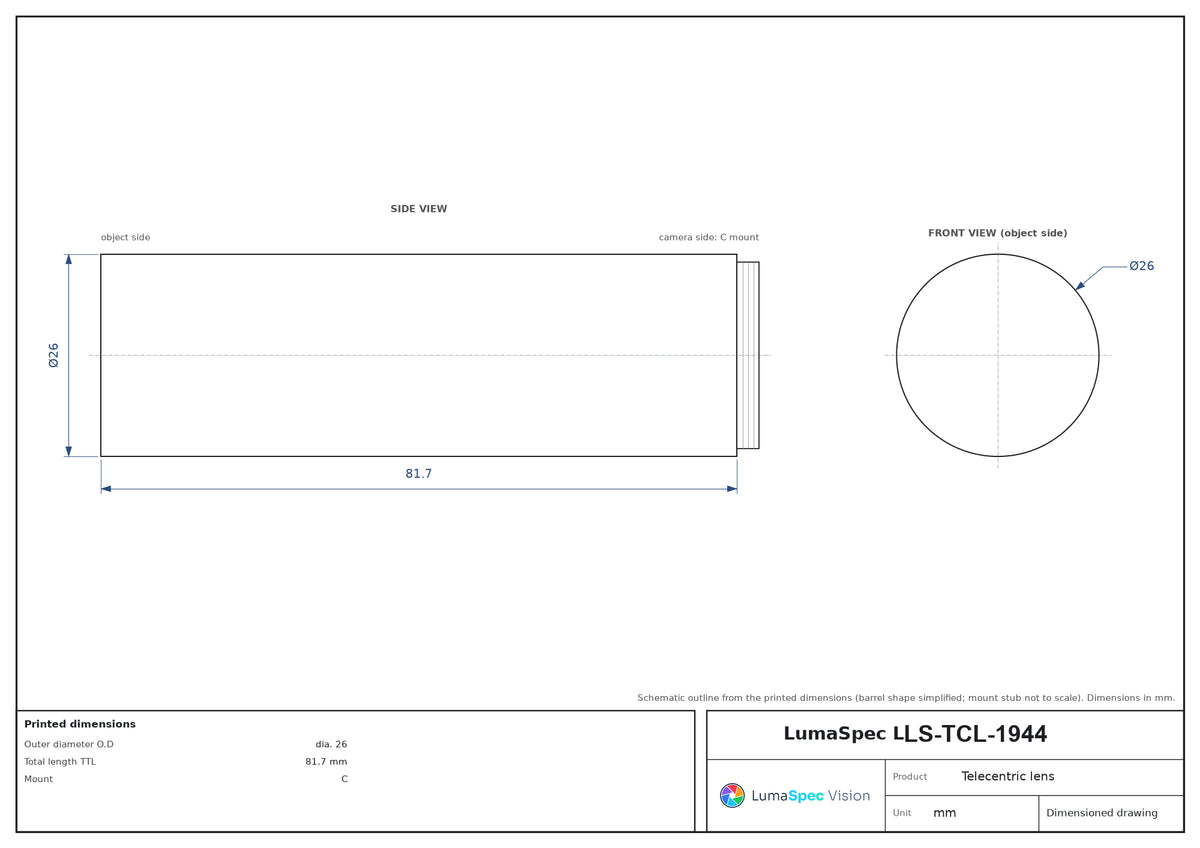

Mechanical
| Mount | C |
|---|---|
| Outer diameter O.D (mm) | dia. 26 |
| Shipping weight (estimated) | 0.61 kg |
Photo shows a representative model of this series; see the specifications for this model.
