0.5x, WD 260 mm, 1/2.5", C-mount Telecentric Lens, length 181.8 mm (LS-TCL-1957)
Model LS-TCL-1957
- Magnification0.5x
- MountC-mount
- Sensor1/2.5"
- Working distance260 mm
- Aperture16.4
$1,639.00
Ships in 2-3 weeks
0.63 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.5x, WD 260 mm, 1/2.5", C-mount Telecentric Lens. At a glance: magnification 0.5x; working distance 260 mm; max sensor size 7.2 mm (1/2.5"); object-side resolution 22.0 µm; image-side f/# 16.4.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1957 |
|---|
Optics
| Magnification (x) | 0.5 |
|---|---|
| Working distance (mm) | 260 |
| Image-side F/# | 16.4 |
| Object-side telecentricity (deg max) | <0.1 |
| Image-side distortion (% max) | 0.1 |
| Numerical aperture NA | 0.01523 |
| Object-side resolution (um) | 22.0 |
| Theoretical depth of field (mm) | 5.25 |
| Image-side MTF30 (lp/mm) | 55 |

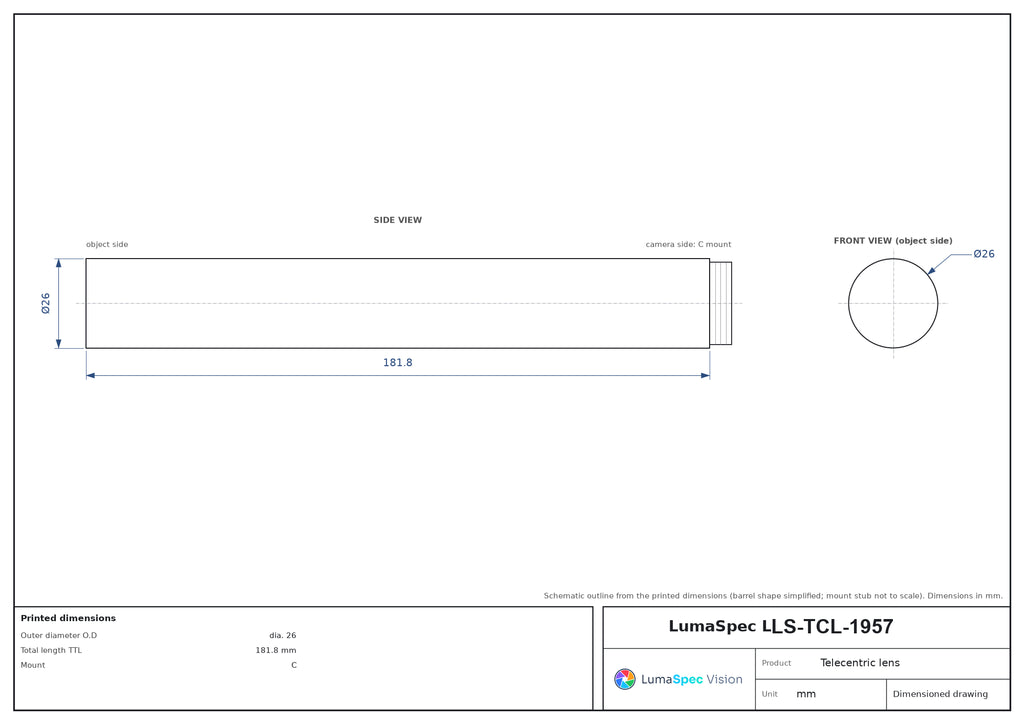

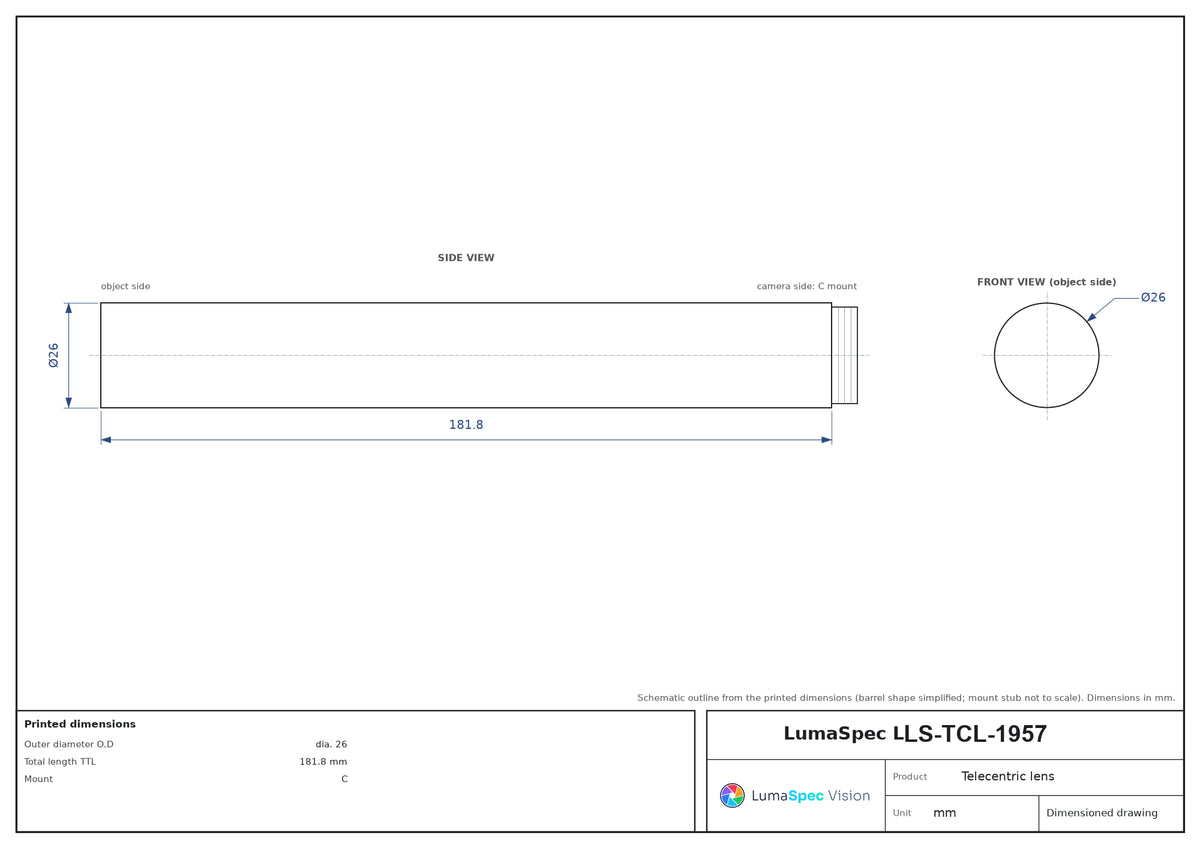

| Total length TTL (mm) | 181.8 |
Sensor and imaging
| Max sensor size (dia. mm) | 7.2(1/2.5") |
|---|
Mechanical
| Mount | C |
|---|---|
| Outer diameter O.D (mm) | dia. 26 |
| Shipping weight (estimated) | 0.63 kg |
Photo shows a representative model of this series; see the specifications for this model.
