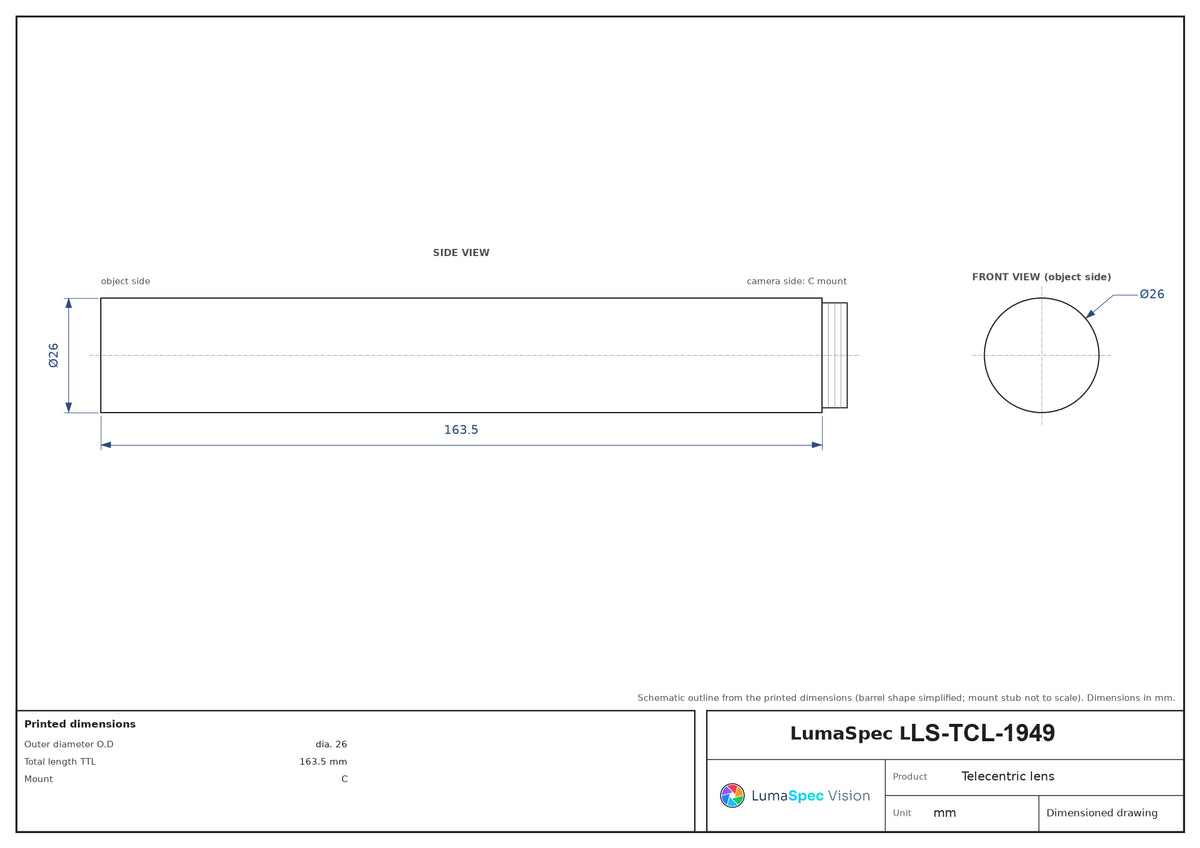

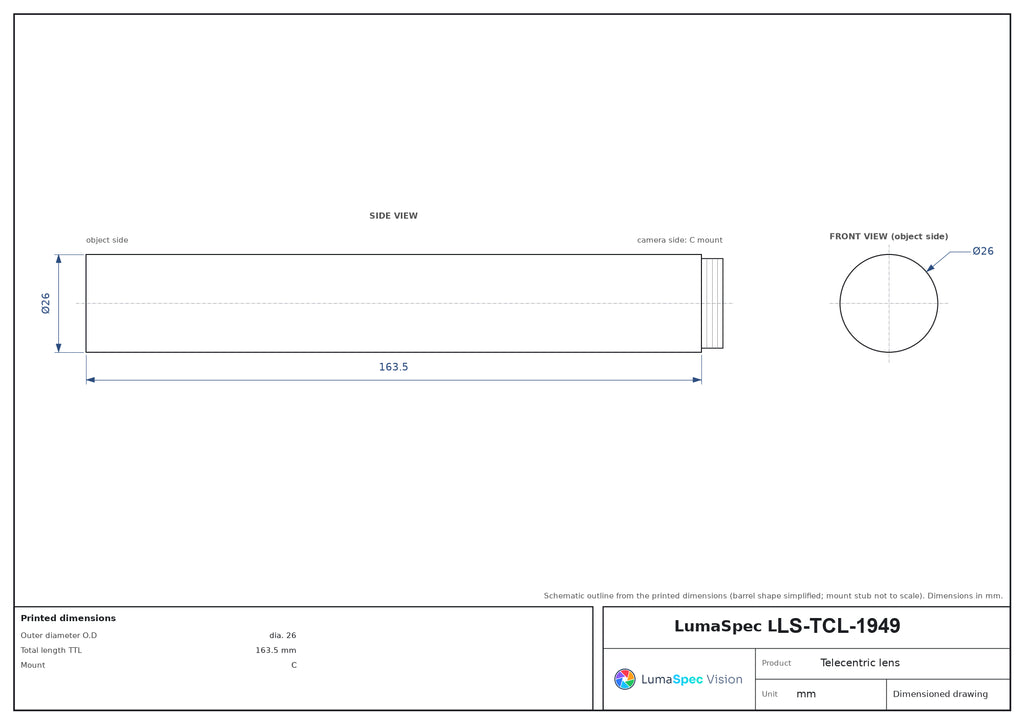

  • LS-S18WH05X510W dimensions (mm)

Telecentric lenses

0.5x, WD 510 mm, 1/1.8", C-mount Telecentric Lens, length 163.5 mm (LS-TCL-1949)

Model LS-TCL-1949

  • Magnification0.5x
  • MountC-mount
  • Sensor1/1.8"
  • Working distance510 mm
  • Aperture14.2
$1,719.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.68 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.5x, WD 510 mm, 1/1.8", C-mount Telecentric Lens, length 163.5 mm (LS-TCL-1949)LS-TCL-1949

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.5x, WD 510 mm, 1/1.8", C-mount Telecentric Lens. At a glance: magnification 0.5x; working distance 510 mm; max sensor size 9 mm (1/1.8"); object-side resolution 19.3 µm; image-side f/# 14.2.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1949

Optics

Magnification (x)0.5
Working distance (mm)510
Image-side F/#14.2
Object-side telecentricity (deg max)0.8
Image-side distortion (% max)<0.1
Numerical aperture NA0.0174
Object-side resolution (um)19.3
Theoretical depth of field (mm)4.54
Image-side MTF30 (lp/mm)63
Total length TTL (mm)163.5
Front filter threadM25x0.5 after removing the front lens retaining ring
Measured depth of field as shipped (mm)1.8

Sensor and imaging

Max sensor size (dia. mm)9(1/1.8")

Mechanical

MountC
Outer diameter O.D (mm)dia. 26
Shipping weight (estimated)0.68 kg

Photo shows a representative model of this series; see the specifications for this model.
