Telecentric lenses
4x, WD 60 mm, M72-mount telecentric lens (LS-TCL-0844)
Model LS-TCL-0844
- Magnification4.0x
- MountM72
- SensorAPS-H
- Working distance60±1 mm
- Field of viewdia. 11.0 mm
$1,529.00
Ships in 2-3 weeks
0.59 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-TCL-0844: magnification 4.0x, working distance 60±1 mm, depth of field 0.06-0.16 mm, max sensor size 35Full (dia. 44 mm), mount M72.
4x, WD 60 mm, M72-mount Telecentric Lens. LS-TCL-S46 series high-performance AOI bi-telecentric lens for 35 mm full-frame (44 mm) sensors and 65 / 71 MP cameras: 4x magnification, 11 mm object field, 60 mm working distance, adjustable aperture, near-zero distortion, offered with M42, M58 or M72 mounts and with or without coaxial light. At a glance: magnification 4.0x; working distance 60±1 mm; max sensor size 35Full (dia. 44 mm); object field of view dia. 11.0 mm; object side resolution 1.8-5.4 µm.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0844 |
|---|---|
| FOV on GMAX3265 (29.9 x 22.4) | 7.5 x 5.6 mm |
| FOV on CMV50000 (36.43 x 27.62) | 9.1 x 6.9 mm |
Optics
| Magnification | 4.0x |
|---|---|
| Object field of view | dia. 11.0 mm |
| Working distance | 60±1 mm |
| Best aperture | F11-32 |
| Telecentricity (typ./max) | 0.02° |
| Distortion (typ./max) | 0.02% |
| MTF30 | 90-32 lp/mm |
| Depth of field | 0.06-0.16 mm |
| Numerical aperture NA | 0.18-0.0624 |
| Object-side resolution | 1.8-5.4 µm |
| Iris | Yes (adjustable) |
| Coaxial light | Yes |
| Magnification (x) | 4.0 |
| Object field of view (dia. mm) | 11.0 |
| Working distance (mm) | 60±1 |
| Best Aperture (F/#) | 11-32 |
| Telecentricity typical (max) (deg) | 0.02 |
| Distortion typical (max) (%) | 0.02 |
| MTF30 (lp/mm) | 90-32 |
| Depth of field (mm) | 0.06-0.16 |
| Object-side resolution (um) | 1.8-5.4 |
| Object-to-image distance I/O (mm) | 437±1 |
| Field of view, GMAX3265 (29.9x22.4) (mm) | 7.5 x 5.6 |
| Field of view, CMV50000 (36.43x27.62) (mm) | 9.1 x 6.9 |
Sensor and imaging
| Max sensor size | 35Full (dia. 44 mm) |
|---|---|
| Max sensor size (dia. mm) | 35Full (44) |
Interfaces and I/O
| Length of I/O | 437±1 mm |
|---|
Mechanical
| Length | 365.4 mm |
|---|---|
| Mount | M72 |
| Length (mm) | 365.4 |
| Shipping weight (estimated) | 0.59 kg |
Engineering data
Field of view with the LS-TCL-0844
Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.
Image circleØ 44 mm
Magnification4×
Working distance60 mmDepth of field 0.06 mm
Distortion0.02 %
Total length365.4 mm
NA0.18–0.0624
MTF90–32 lp/mmat 30 % contrast
| Sensor format | 4× |
|---|---|
| 1.1"14.13 × 10.35 mm | 3.5 × 2.6 mm |
| 4/3"17.3 × 13 mm | 4.3 × 3.2 mm |
| APS-C23.6 × 15.6 mm | 5.9 × 3.9 mm |
| Full frame36 × 24 mm | 9 × 6 mm |
Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Cameras this lens fits
41 mm sensor diagonal; this lens covers up to 44 mm

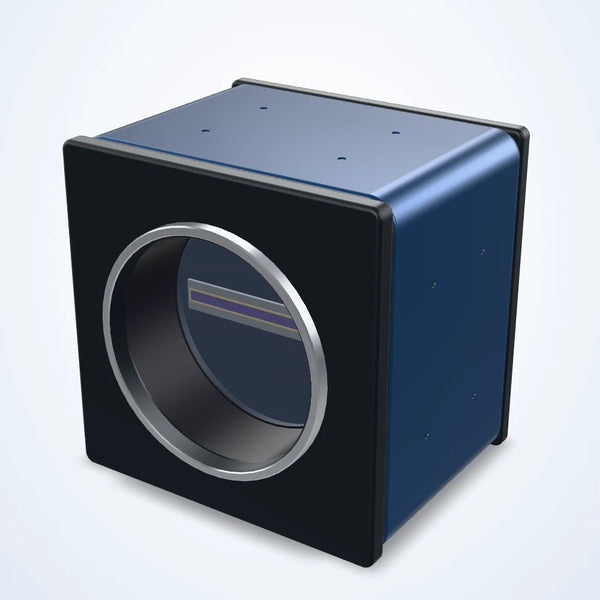

8K Camera Link line scan camera, 5 μm, 34 kHz, TDI, M72
