Line scan cameras
Line scan camera (V-generation), 8K, 10GigE, Mono, 8192*8 resolution (LS-LCM-0110)
Model LS-LCM-0110
- Resolution8192*8
- Interface20GigE
- Lens mountM72
- Pixel size5.0μm
$1,439.00
Ships in 2-3 weeks
0.76 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
This 2K line scan cameras adopts GigE interface and with a maximum line frequency of 120K.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0110 |
|---|---|
| Line frequency | 150k |
| Imaging mode | 1line/8-TDI |
| Filter | Full-band anti-reflection film |
| Software | SDK development kit, and related demonstration/calibration software BasedCam3 |
| Compatible Software | No support for third-party software |
Sensor and imaging
| Resolution | 8192*8 |
|---|---|
| Sensor | 16K |
| Pixel size | 5.0μm |
| Shutter | Global |
| Dynamic range | 63.5dB |
| Exposure time | 1.64us-40ms, 0.1us step |
| Exposure mode | Support manual exposure/single exposure/automatic exposure/pulse width control exposure |
| Gain | Analog 1X-2X,1x step, digital 1X-16X,0.1x step |
| Pixel format | Mono8/Mono12Packed |
Interfaces and I/O
| Data interface | 20GigE |
|---|---|
| I/O Interface | 1 channel frame signal input 2 line signal input 4 single-ended outputs, configurable as 2 differential outputs 3 universal inputs (1 differential input and 2 single-ended input), multiplexed with output |
| Lens interface | M72*0.75, flange rear focal 12mm, can be transferred to F port, C port and other threaded port lens through the adapter ring |
| IO and Power Interface | 12 core industrial circular connector |
| Protocols/Standards | GenICam |
Light
| Color/Mono | Mono |
|---|---|
| Color | Mono |
| Mono / colour | Mono |
Environment and compliance
| Temperature | Operating temperature:-10℃~50℃, Storage temperature:-20℃ ~ 70℃ |
|---|---|
| Humidity | 5% ~ 90%RH (non-condensing) |
| Certifications | CE,RoHS |
Computing
| Operating Systems | Windows 7/10 32/64bit; PC Linux 32/64bit |
|---|
Electrical
| Trigger mode | Row triggered, frame triggered, row + frame triggered |
|---|---|
| Power supply | DC12V-24V (±10%) (24V power supply when IO line > 5M) |
| Typical Power Consumption | 8W@24VDC |
| IP Protection Rating | IP40(with lens and cable properly installed) |
| Voltage | DC12V-24V (±10%) (24V power supply when IO line > 5M) |
Mechanical
| Lens mount | M72 |
|---|---|
| Target size | 40.96mm |

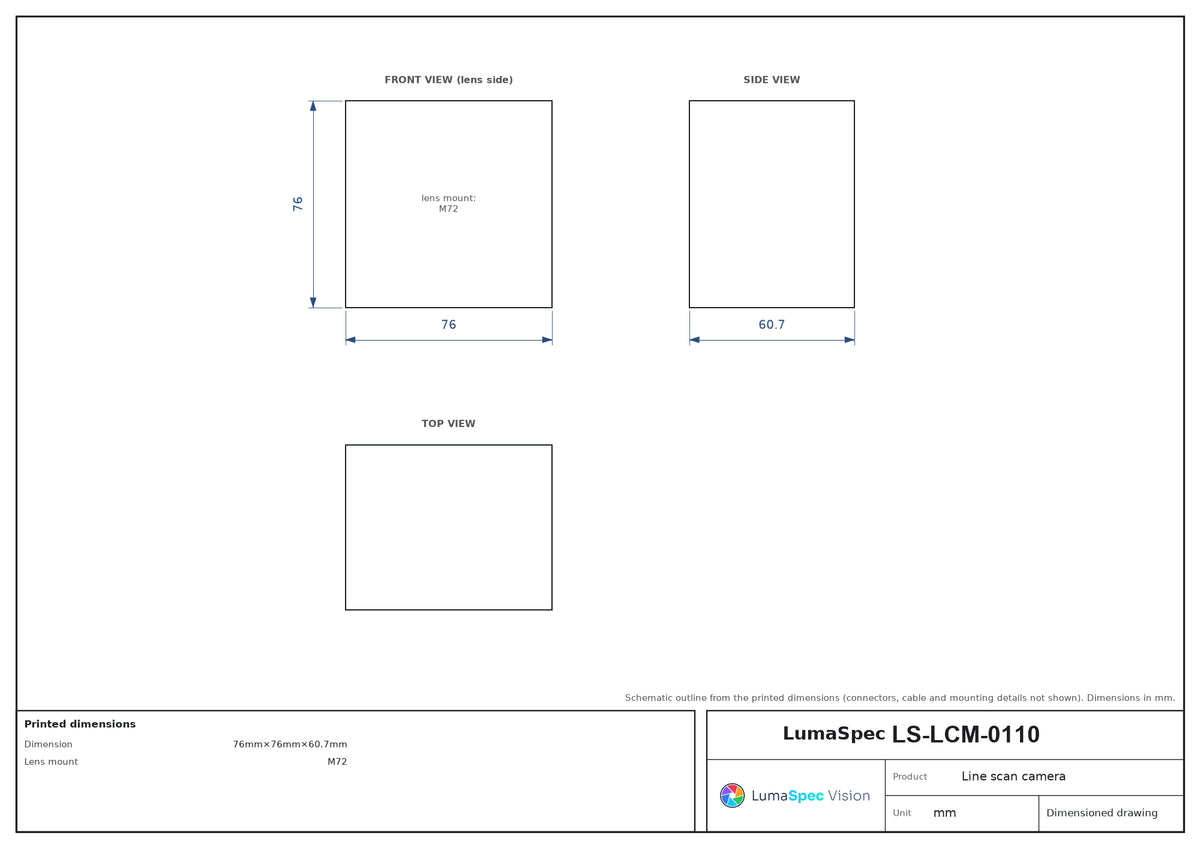

| Dimension | 76mm×76mm×60.7mm |
| Weight | Approx.475g |

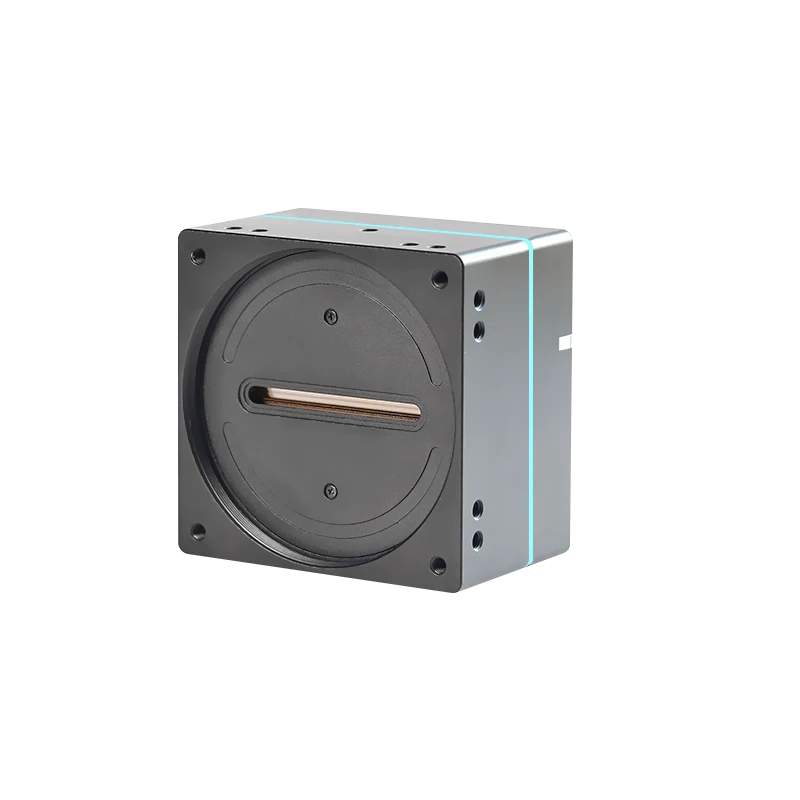

Photo shows a representative model of this series; see the specifications for this model.
