Line scan cameras

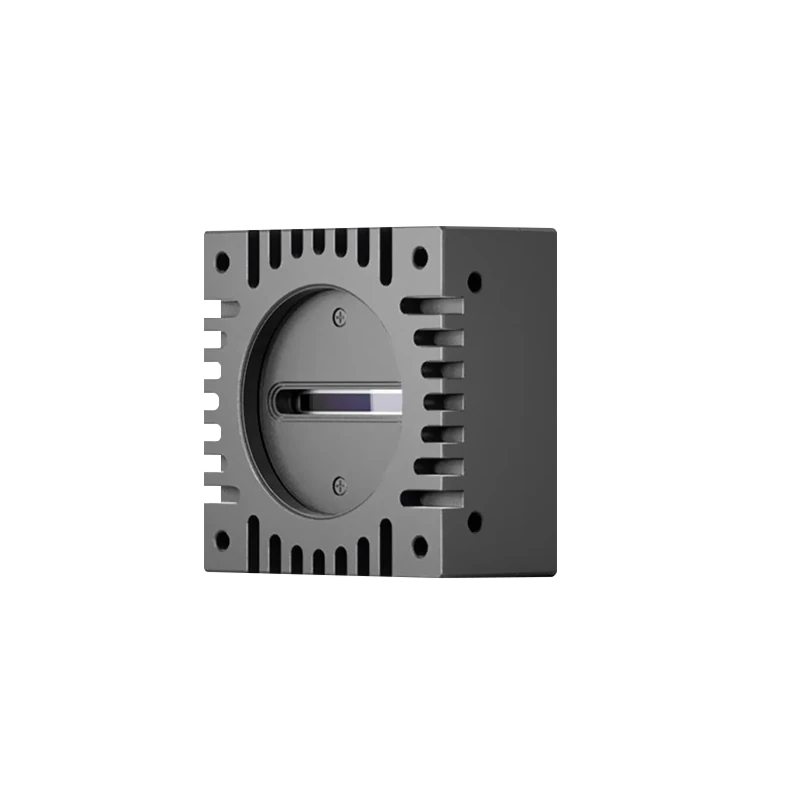

Line scan camera (V-generation), 4K, 10GigE, Color (LS-LCM-0086)
Model LS-LCM-0086
- Resolution4096*3
- Interface2.5GigE
- Lens mountM42
- Pixel size7 μm
$1,439.00
Ships in 2-3 weeks
0.41 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
This 2K line scan cameras adopts GigE interface and with a maximum line frequency of 120K.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0086 |
|---|---|
| Line frequency | 23k |
| Imaging mode | 3 line |
| Filter | 380nm-650nm bandpass filter |
| Software | SDK development kit, and related demonstration/calibration software BasedCam3 |
| Compatible Software | OpenCV, LabView, Halcon |
Sensor and imaging
| Resolution | 4096*3 |
|---|---|
| Sensor | 4K |
| Pixel size | 7 μm |
| Shutter | Global |
| Dynamic range | 65dB |
| Exposure time | 3.6us -- 40ms, 1us steps |
| Exposure mode | Support manual exposure/single exposure/automatic exposure/pulse width control exposure |
| Gain | 1x-16x,0.25x adjustable step |
| Pixel format | RGB8, BGR8, BayerGR8 |
Interfaces and I/O
| Data interface | 2.5GigE |
|---|---|
| I/O Interface | 1 channel frame signal input (support RS422 standard differential and 3.3V-24V single-ended signal),2 line signal input (support RS422 standard differential and 3.3V-24V single-ended signal),2 differential outputs or 4 single-ended outputs (output level 5V/12V),Can be multiplexed to 3 inputs (1 differential input and 2 single-ended inputs) |
| Lens interface | M42*1 |
| IO and Power Interface | 12 core industrial circular connector |
| Protocols/Standards | GigE Vision 1.2, GenICam |
Light
| Color/Mono | Color |
|---|---|
| Color | Color |
| Mono / colour | Color |
Environment and compliance
| Temperature | Operating temperature:-10℃~45℃, Storage temperature:-20℃ ~ 70℃ |
|---|---|
| Humidity | 5% ~ 90%RH (non-condensing) |
| Certifications | CE,RoHS |
Computing
| Operating Systems | Windows7/10 64bits,PC Linux 64bits, ARM Linux |
|---|
Electrical
| Trigger mode | Row triggered, frame triggered, row + frame triggered |
|---|---|
| Power supply | DC12V-24V (±10%) |
| Typical Power Consumption | 4.5W@24VDC |
| IP Protection Rating | IP40 (with lens and cable properly installed) |
| Voltage | DC12V-24V (±10%) |
Mechanical
| Lens mount | M42 |
|---|---|
| Target size | 28mm |

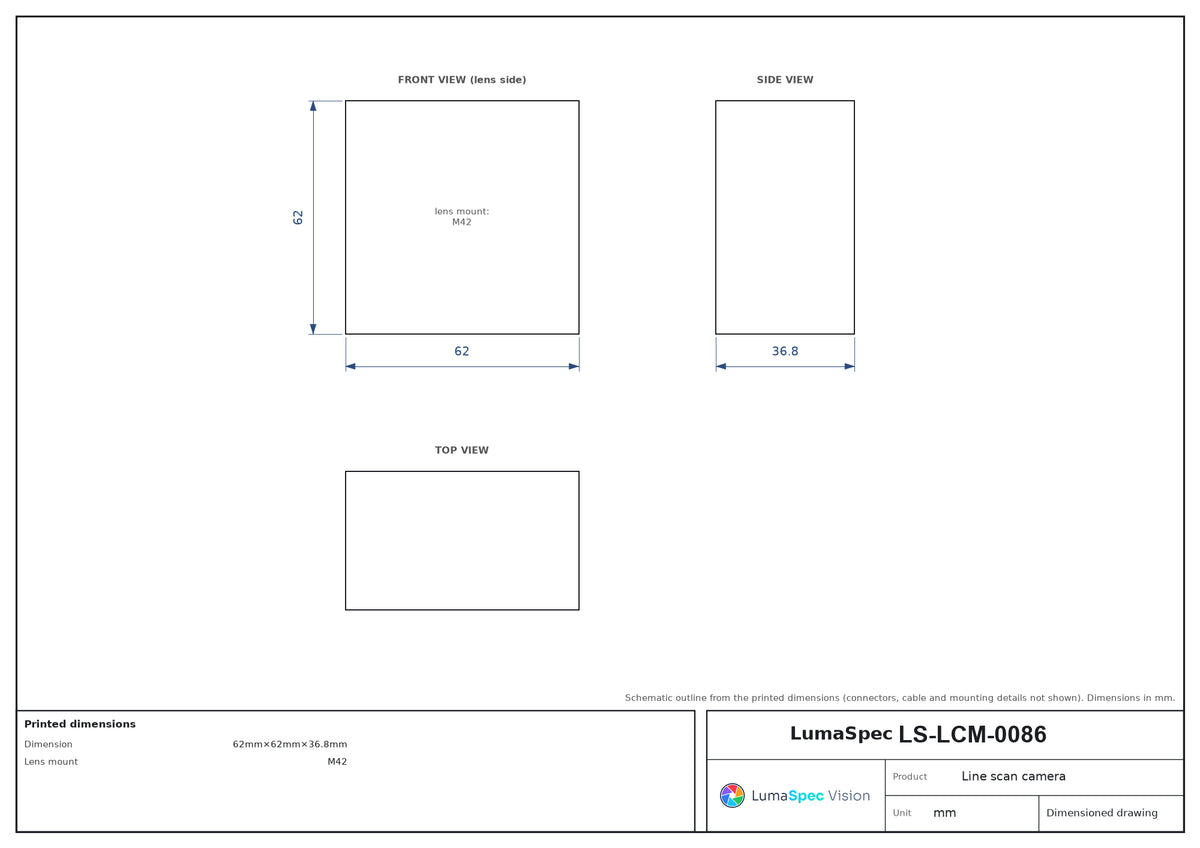

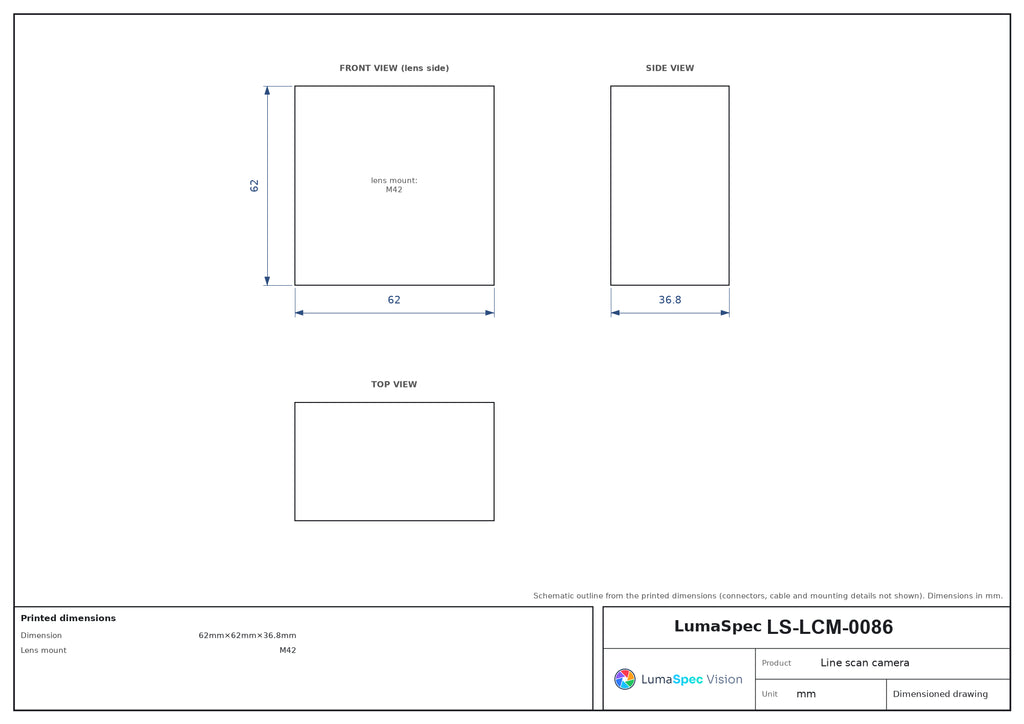

| Dimension | 62mm×62mm×36.8mm |
| Weight | Approx.220g |
