WD 93 mm, 1", C-mount Telecentric Lens, dia. 43.5 x 112.6 mm (LS-TCL-0856)
Model LS-TCL-0856
- MountC-mount
- Sensor1"
- Working distance93 +/- 2mm
- Resolution11.2/9.6/6.5/4.9/4.0/3.8 um
$1,539.00
Ships in 2-3 weeks
0.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
WD 93 mm, 1", C-mount Telecentric Lens. A 0.7x-4.5x linear zoom telecentric lens for 1" sensors with a focus function, offered as a focus type and a coaxial focus type; resolves 3.8 um at 4.5x with distortion down to 0.002%. At a glance: working distance 93 +/- 2mm; format 1" (dia. 16); mount C / F Mount; angle of view 21 x 17 x 12.5 / 3.25 x 2.6 x 1.95; size dia. 43.5 x 112.6 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0856 |
|---|---|
| Zoom range | 0.7x ~ 4.5x |
| F.No (NA) (0.7x/1.0x/2.0x/3.0x/4.0x/4.5x) | 0.03/0.035/0.051/0.068/0.083/0.088 |
| Angle of view (2/3") | 21 x 17 x 12.5 / 3.25 x 2.6 x 1.95 |
| Angle of view (1/2") | 15.1 x 12.1 x 9.06 / 2.37 x 1.9 x 1.42 |
| Angle of view (1/3") | 11.3 x 9.1 x 6.8 / 1.8 x 1.42 x 1.1 |
| Format | 1" (dia. 16) |
| Version | Focus type |
| Notes | Focus function, coaxial function |
Optics
| Depth of field (0.7x/1.0x/2.0x/3.0x/4.0x/4.5x) | 2.4/1.3/0.4/0.2/0.1/0.1 mm |
|---|---|
| Distortion (0.7x/1.0x/2.0x/3.0x/4.0x/4.5x) | 0.04%/0.079%/0.07%/0.064%/0.004%/0.002% |
| Working distance | 93 +/- 2mm |
Sensor and imaging
| Resolution (0.7x/1.0x/2.0x/3.0x/4.0x/4.5x) | 11.2/9.6/6.5/4.9/4.0/3.8 um |
|---|
Environment and compliance
| Operating temperature | +10 ~ 35°C |
|---|---|
| Humidity | 20~80% RH (no condensation) |
Mechanical
| Mount | C / F Mount |
|---|---|
| Thread | M25 x 0.75 / M27.76-32T |

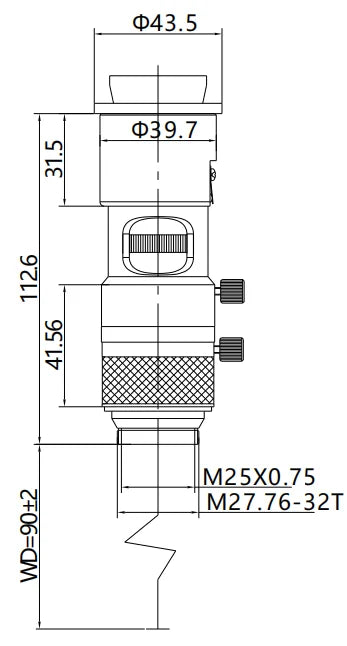

| Size | dia. 43.5 x 112.6 mm |
| Shipping weight (estimated) | 0.85 kg |
